3080-9042-04-07

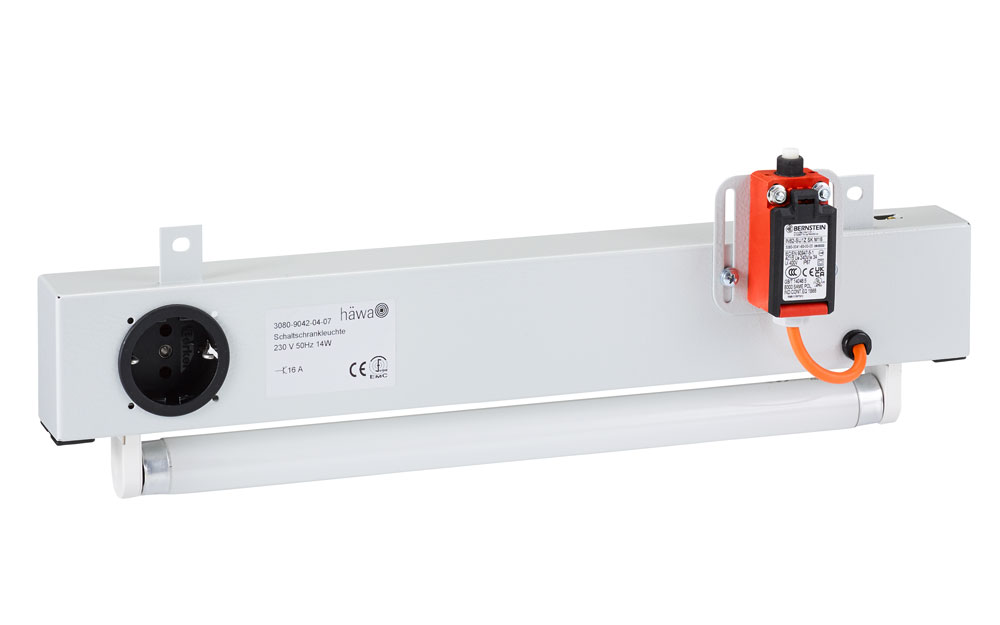

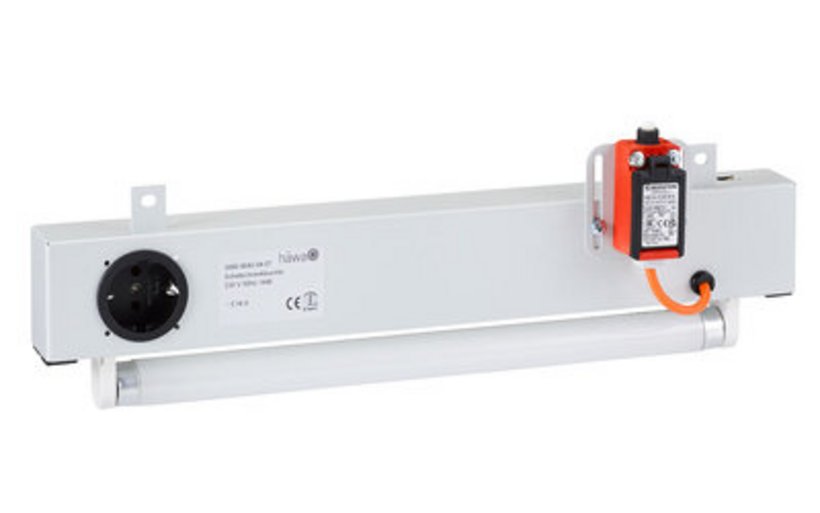

Fluorescent Lamp, Ready for Connection
- ON/OFF function controlled via door switch
- Quick connection due to snap-lock
- Cascadable
Product description
The cabinet light with door switch is pre-assembled and ready for connection.
For assembly under the cabinet roof or, with an installation kit, at the lateral frame of the cabinet (for modular cabinets only).
Technical data
-
Article number: 3080-9042-04-07
-
Protection class: |
-
Length: 440 mm
-
KASKADIERUNG: max. 10 lamps
-
LEISTUNGSAUFNAHME: 14 W
-
Light source: Fluorescent tube
-
LICHTSTROM: 700 lumes
-
MONTAGE: Screw mounted version
-
Operating voltage: AC 220-240V, 50/60 Hz
-
Material: Sheet steel
-
Surface: Powder coated RAL 7035 texture finish
-
Version: Door switch
-
Operating temperature: -15 °C up to +55 °C
-
Socket: Schuko CEE 7/3 load: Max. 16 A
-
Width: 140 mm
-
Depth: 42 mm
-
Weight: 800 g
-
Variant: Male and female connector effected to the cabinet inside
-
suitable for type: standard häwa cabinets from W 600 mm / 23.62”
-
Authorization: CE, VDE-EMC
Notice
- We recommend to assemble the lamp after installation of the mounting plate.
- For assembly at the lateral frame of the cabinet you require an installation kit type 3080-7006-12-07.
- 1 lamp with mounting hardware, mounting instructions 3080-0042-03-77
3080-9042-05-73
Connection cable with male and female connectors for daisy chain connection
Voltage type
AC
Type
Connection cable H05VV-F 3G 1.5 with male and female connectors
Color
Male/female connectors black, connection cable orange
3080-9042-10-73
Connection cable with male and female connectors for daisy chain connection
Voltage type
AC
Type
Connection cable H05VV-F 3G 1.5 with male and female connectors
Color
Male/female connectors black, connection cable orange
3080-9042-25-73
Connection cable with female connector and open end
Voltage type
AC
Type
Connection cable H05VV-F 3G 1.5 with female connector
Color
Connecteur femelle noir / câble orange
3080-7006-12-07
Mounting kit for lamps
Ausführung
Sheet steel cover plate: Powder coating RAL 7035, texture finish
