Accessories UL Type 3R, 12

RainKit single door cabinets for H395

Rainkit for häwa free-standing and modular cabinets of series H370/H390 and H375/H395 with UL label. The innovative design guarantees an upgrade of the series for outdoor use according to UL Type 3R.
Can be mounted to standard sizes up to a max. dimension of (in mm) W-1200 x H-2200 x D-800.
Rainproof through rain rail 3R.
All individual parts correspond to the material requirements according to UL Type 3R, 12.


4533-6016-00-01	Rain rail 3R	600 mm	1600 mm	Type: 1, 12, 3R is possible with type H395/H390 only
4533-6018-00-01	Rain rail 3R	600 mm	1800 mm	Type: 1, 12, 3R is possible with type H395/H390 only
4533-6020-00-01	Rain rail 3R	600 mm	2000 mm	Type: 1, 12, 3R is possible with type H395/H390 only
4533-6022-00-01	Rain rail 3R	600 mm	2200 mm	Type: 1, 12, 3R is possible with type H395/H390 only
4533-8016-00-01	Rain rail 3R	800 mm	1600 mm	Type: 1, 12, 3R is possible with type H395/H390 only
4533-8018-00-01	Rain rail 3R	800 mm	1800 mm	Type: 1, 12, 3R is possible with type H395/H390 only
4533-8020-00-01	Rain rail 3R	800 mm	2000 mm	Type: 1, 12, 3R is possible with type H395/H390 only
4533-8022-00-01	Rain rail 3R	800 mm	2200 mm	Type: 1, 12, 3R is possible with type H395/H390 only
4533-1016-00-01	Rain rail 3R	1000 mm	1600 mm	Type: 1, 12, 3R is possible with type H395 only
4533-1018-00-01	Rain rail 3R	1000 mm	1800 mm	Type: 1, 12, 3R is possible with type H395 only
4533-1020-00-01	Rain rail 3R	1000 mm	2000 mm	Type: 1, 12, 3R is possible with type H395 only
4533-1022-00-01	Rain rail 3R	1000 mm	2200 mm	Type: 1, 12, 3R is possible with type H395 only

RainKit double door for H395

Rainkit for häwa free-standing and modular cabinets of series H370/H390 and H375/H395 with UL label.
The innovative design guarantees an upgrade of the series for outdoor use according to UL Type 3R.
Can be mounted to standard sizes up to a max. dimension of (in mm) W-1200 x H-2200 x D-800.
Rainproof through rain rail 3R.
All individual parts correspond to the material requirements according to UL Type 3R, 12.

Order No.	Type	Suitabel for width	Protection type	notice
4543-1200-00-01	Rain rail 3R	1200 mm	Type: 1, 12, 3R is possible with type H395 only

Rain rail 3R

The rain rail 3R is used to cover the door gap to protect against falling dust and water.
Can be used for all häwa enclosures up to a maximum width of 1200mm.
Can be used for modular assembly.
Approved for use with enclosures with UL Type Rating 1, 12, or 3R.


6153-6000-00-01	approved for Type 1, 12, 3R	sheet steel (powder coated)
6153-8000-00-01	approved for Type 1, 12, 3R	sheet steel (powder coated)
6153-1000-00-01	approved for Type 1, 12, 3R	sheet steel (powder coated)
6153-1200-00-01	approved for Type 1, 12, 3R	sheet steel (powder coated)

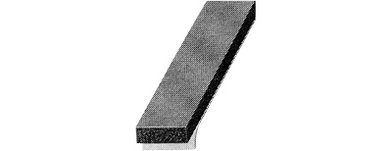

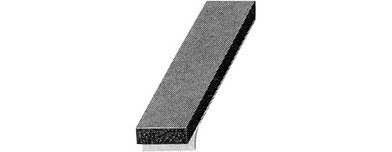

Joining rubber gasket UL Type 12

The gasket complies with the material requirements of UL50 / UL5E and is approved for application as a gasket for the connection of häwa modular cabinets H395 / H375 for Type Ratings 1, 2, 5, 12.

Order No.	Width	Height	notice
3080-0102-18-01	11 mm	4 mm
