Lighting

	notice
3080-7255-00-10
3080-7255-00-11
3080-7255-10-10
3080-7255-10-11

Universal lamp

Cabinet light for häwa wall-mount enclosures Serie 33, consoles type H335 and cabinets type H3XX.
Minimum width of wall-mount enclosures Serie 33, consoles type H335 or cabinets: 400 mm.
Completely pre-wired.
Electrical connection via spring terminal.
Flexible attachment with optional mounting kits: at the enclosure reinforcement and attachment frame, perforated continuously every 25 mm, behind the enclosure frame, directly on the mounting plate or on 35 mm wide support rails.
Choice of switch type…

					notice
3080-9043-09-07	Shockproof “Schuko” socket 16 A	left	with door switch	220V - 240V 50Hz
3080-9043-19-07	without	left	with door switch	220V - 240V 50Hz

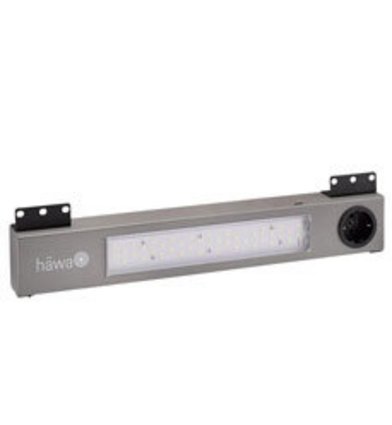

Sensor Operated LED Lamp, SOL 704

The SOL 704 Sensor Operated LED lamp ensures an optimum illumination of control cabinets. The pre-set proximity sensor is ready for operation after mounting the lamp and switches the lamp immediately ON or with a delay of 5 s OFF when opening or closing the door.
An integrated N.C (normally closed) / N.O. (normally open) relay operates as a door switch for switching devices or components, such as cooling units, filter fans and signal towers, etc., including suitable plugs for connecting the…


3080-7043-15-07	120 V-230 V~ (50 Hz/60 Hz) +/- 10% 120 V-277 V~ (50 Hz/60 Hz) +/- 10%		magnetic	440 mm	UKCA, cULus, cURus, CE, VDE EMC
3080-7043-35-07	24 V- +/- 10%		magnetic	440 mm	UKCA, cULus, cURus, CE, VDE EMC
3080-7042-14-17	230 V~ (50 Hz/60 Hz) +/- 10%	Schuko CEE 7/3 load: Max. 16 A	Screw mounted version	440 mm	CE, VDE EMC, UKCA
3080-7042-25-27	120 V~ (50 Hz/60 Hz) +/- 10%	NEMA 5-15 load: - max. 11.9 A Cascaded - max.10.6 A	Screw mounted version	440 mm	UKCA, cULus, cURus, CE, VDE EMC
3080-7042-15-07	120 V-230 V~ (50 Hz/60 Hz) +/- 10% 120 V-277 V~ (50 Hz/60 Hz) +/- 10%		Screw mounted version	440 mm	UKCA, cULus, cURus, CE, VDE EMC
3080-7042-35-07	24 V- +/- 10%		Screw mounted version	440 mm	UKCA, cULus, cURus, CE, VDE EMC

Fluorescent Lamp, Ready for Connection

The cabinet light with door switch is pre-assembled and ready for connection.
For assembly under the cabinet roof or, with an installation kit, at the lateral frame of the cabinet (for modular cabinets only).

Order No.	Operating voltage	Version	Fixing type	Socket	notice
3080-9042-04-07	AC 220-240V, 50/60 Hz	Door switch	Screw mounted version	Schuko CEE 7/3 load: Max. 16 A
