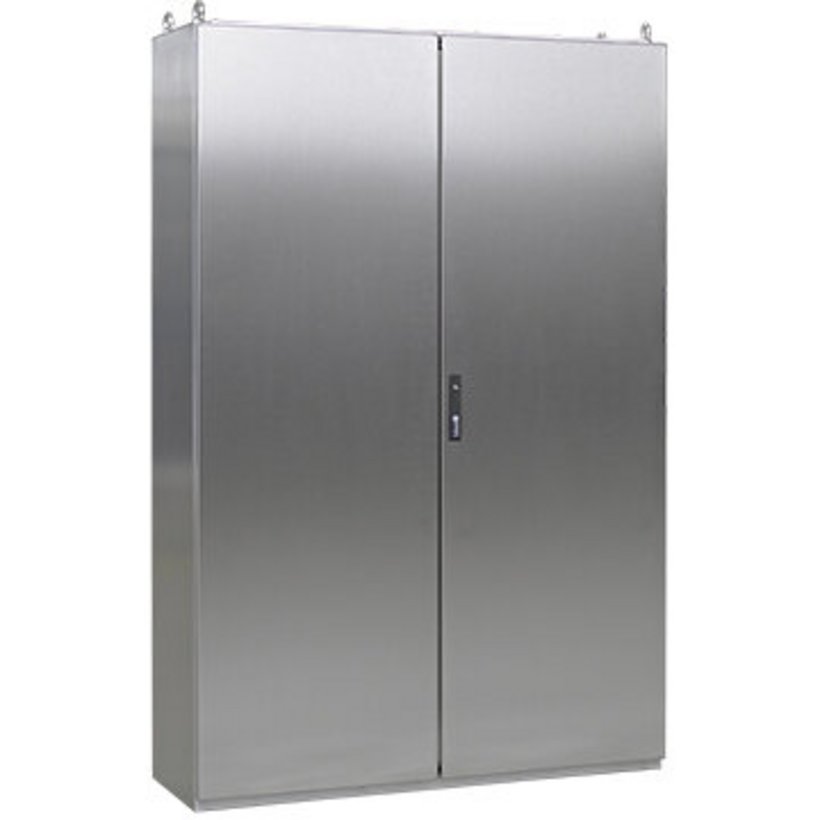

Free-Standing cabinets Stainless Steel H370, double door

0370-1118-40-00

Free-Standing cabinets Stainless Steel H370, double door

  • Stainless steel
  • Free-standing cabinet
  • Depth-400 mm
  • Protection class IP/Nema/Type: see technical data
  • System accessories permit modular extension

Product description

Free-standing cabinets with single or double door design. Available with or without mounting plate. Mounting rails for 100 % utilization of häwa accessories available as option.

Protective grounding according to DIN EN 61439-1, M8x20 studs on all movable and detachable parts as well as on top and bottom frame areas, mounting plate with ground connector screw and cable entry plates with drilling

Flanged edges prevent dust and water from entering when opening the door

Doors with seamlessly foamed gasket can be mounted either at left or right side, standard delivery includes doors hinged on right side, Opening angle 120° can be modified to 180°, Locking: Bar lock, standard with 3 mm double mandrel bolt, Bolted reinforcement and attachment frame of solid square tubes perforated with 4.5 mm holes every 25 mm, Underlapping door with additional lock, From width 800 mm with stop roller

Top plate can be removed, with 4 lifting eyes M12 to DIN 580

Bottom with three-part, adjustable cable entry plate and 10.6 mm mounting holes.

C-flanged mounting plate, adjustable to depth every 25 mm; quick and easy mounting with häwa locking brackets.

Technical data

  • Article number: 0370-1118-40-00
  • PRODUKTGRUPPENNAMEEBENE4: Free-standing cabinets
  • Protective conductor connection: according to DIN EN 61439-1
  • Protection class: IP55
    Type 1, 12
  • Material: Stainless steel no. 1.4301
  • Authorization: cULus
  • Dimensions: Width : 1000 mm  Height : 1800 mm  Depth : 400 mm
  • Weight: 102.5 kg
  • Cabinet type: Free standing cabinets
  • Variant: without mounting plate
  • Surface: Externally brushed
  • Sheet thickness: Door: 2 mm(ga)
    Roof angle: 2 mm(ga)
    Carrier angle ground group: 2,5 mm(ga)
    Frame/Body: 1,5 mm(ga)
    Rear wall: 1,5 mm(ga)

Notice

  • Rear panel with hinged door or other modifications involve delivery time. Price upon request.
  • Attention: Center attachment type 0391-0003-..-00 cannot be combined with vertical mounting rails type 0391-90..-00-03.
  • Modular assembly is achieved by using the horizontal/vertical mounting rails.
  • Please refer to base drawings for base mounting dimensions.
  • Cabinet complete with lifting eyes, top plate, bottom cable entry plate and 1 key
Grounding strips
3080-7036-01-38
Grounding strips
Length
360 mm
Typ
complete with studs
Grounding strips
3080-7036-01-00
Grounding strips
Length
80 mm
Typ
complete with studs
Grounding strips
3080-7036-01-20
Grounding strips
Length
200 mm
Typ
complete with studs
Grounding strips
3080-7036-11-36
Grounding strips
Length
360 mm
Typ
without bolts
Grounding strips
3080-7036-11-20
Grounding strips
Length
200 mm
Typ
without bolts
Grounding strips
3080-7036-11-00
Grounding strips
Length
80 mm
Typ
without bolts
Grounding strips
3080-7036-01-30
Grounding strips
Length
300 mm
Typ
complete with studs
Grounding strips
3080-7036-11-30
Grounding strips
Length
300 mm
Typ
without bolts
Diagram pocket 0396
0396-7115-50-07
Diagram pocket 0396
Suitable for width
500 mm
Top panel bolts
3005-9000-12-25
Top panel bolts
Material
Stainless steel A2
Thread
M12X25
Clip-nuts
2070-9102-34-00
Clip-nuts
Thread
M4
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-35-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-35-02
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-35-03
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-36-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-36-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-45-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,9 - 1,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9102-45-01
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,5 - 2,0 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9102-46-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,9 - 1,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9102-46-01
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,5 - 2,0 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9102-46-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,8 - 2,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9102-46-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9202-35-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9202-35-02
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9202-35-03
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9202-36-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9202-36-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9202-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9203-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,8 - 3,2 mm
For cut-out size
12,3x12,3 mm/0,48x0,48"
Variante
without grounding pin
Door opening limiter for H390/H395, H370/H375 cabinets
3080-7109-87-00
Door opening limiter for H390/H395, H370/H375 cabinets
Surface
Galvanized
Material
Sheet steel
Suitable for console type
H390/H395 and H370/H375 from door width 500 mm
Door opening limiter for H390/H395, H370/H375 cabinets
3080-7109-87-01
Door opening limiter for H390/H395, H370/H375 cabinets
Surface
Galvanized
Material
Sheet steel
Suitable for console type
H390/H395 and H370/H375 from door less than 500 mm
Mounting plate
0348-1018-00-13
Mounting plate
Suitable for width
1000 mm
Suitable for height
1800 mm
Bases height 100 mm/3.94" for cabinets type H370 and H375
0376-1001-40-11
Bases height 100 mm/3.94" for cabinets type H370 and H375
Suitable for width
1000 mm
Suitable for depth
400 mm
Material
Stainless steel no. 1.4301
Socket size
350 mm
100 mm / 3.94" high base, only for H370 cabinets (flush at the rear side)
0376-1201-41-11
100 mm / 3.94" high base, only for H370 cabinets (flush at the rear side)
Suitable for width
1200 mm
Suitable for depth
400 mm
Material
Stainless steel no. 1.4301
Socket size
375 mm
Base height 200 mm/7.87"  for cabinets type H370 and H375
0376.1002.40.11
Base height 200 mm/7.87" for cabinets type H370 and H375
Suitable for width
1000 mm
Suitable for depth
400 mm
Material
Stainless steel no. 1.4301
Socket size
350 mm
200 mm / 7.87" high base, only for H370 cabinets (flush at the rear side)
0376.1002.41.11
200 mm / 7.87" high base, only for H370 cabinets (flush at the rear side)
Suitable for width
1000 mm
Suitable for depth
400 mm
Material
Stainless steel no. 1.4301
Socket size
375 mm
Free-Standing cabinets Stainless Steel H370, double door
Free-Standing cabinets Stainless Steel H370, double door
Free-standing cabinets with single or double door design. Available with or without mounting plate. Mounting rails for 100 % utilization of häwa accessories available as option.
Protective grounding according to DIN EN 61439-1, M8x20 studs on all movable and detachable parts as well as on top and bottom frame areas, mounting plate with ground connector screw and cable entry plates with drilling
Flanged edges prevent dust and water from entering when opening the door
Doors with seamlessly foamed…

Remember
1000 mm
1800 mm
400 mm
without mounting plate
IP55
Type 1, 12
cULus
1000 mm
1800 mm
400 mm
with mounting plate
IP55
Type 1, 12
cULus
1000 mm
2000 mm
400 mm
without mounting plate
IP55
Type 1, 12
cULus
1000 mm
2000 mm
400 mm
with mounting plate
IP55
Type 1, 12
cULus
1200 mm
1000 mm
400 mm
without mounting plate
IP55
Type 1, 12
cULus
1200 mm
1000 mm
400 mm
with mounting plate
IP55
Type 1, 12
cULus
1200 mm
1200 mm
400 mm
without mounting plate
IP55
Type 1, 12
cULus
1200 mm
1200 mm
400 mm
with mounting plate
IP55
Type 1, 12
cULus
1200 mm
1400 mm
400 mm
without mounting plate
IP55
Type 1, 12
cULus
1200 mm
1400 mm
400 mm
with mounting plate
IP55
Type 1, 12
cULus
1200 mm
1800 mm
400 mm
without mounting plate
IP55
Type 1, 12
cULus
1200 mm
1800 mm
400 mm
with mounting plate
IP55
Type 1, 12
cULus
1200 mm
2000 mm
400 mm
without mounting plate
IP55
Type 1, 12
cULus
1200 mm
2000 mm
400 mm
with mounting plate
IP55
Type 1, 12
cULus
