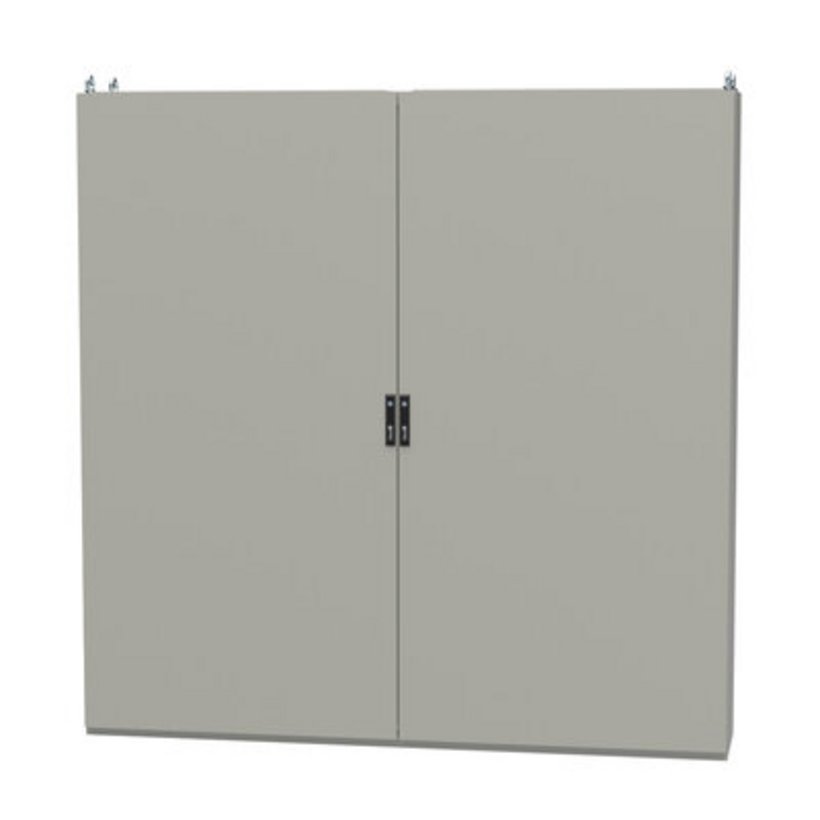

Free-Standing cabinets Sheet steel H390, double door

0390-1618-40-07

Free-Standing cabinets Sheet steel H390, double door

  • Sheet steel
  • Free-standing cabinet
  • Depth 400 mm
  • Protection class IP/Nema/Type: see Technical data
  • System accessories permit modular extension

Product description

Free-standing cabinets with single or double door design. Available with or without mounting plate. Mounting rails for 100 % utilization of häwa accessories available as option.

Protective grounding according to DIN EN 61439-1, M8x20 studs on all movable and detachable parts as well as on top and bottom frame areas, mounting plate with ground connector screw and cable entry plates with drilling

Flanged edges prevent dust and water from entering when opening the door

Doors with seamlessly foamed gasket can be mounted either at left or right side, standard delivery includes doors hinged on right side

Opening angle 120° can be modified to 180°

Locking: Bar lock

Standard with 3 mm double mandrel bolt

Bolted reinforcement and attachment frame of solid square tubes perforated with 4.5 mm holes every 25 mm

Top plate can be removed, with 4 lifting eyes M12 to DIN 580

Bottom with three-part, adjustable cable entry plate and 10.6 mm mounting holes

C-flanged mounting plate, adjustable to depth every 25 mm; quick and easy mounting with häwa locking brackets

Technical data

  • Article number: 0390-1618-40-07
  • PRODUKTGRUPPENNAMEEBENE4: Free-standing cabinets
  • Protection class: Designed in accordance with IP55
    and Nema 1, 12
  • Material: Sheet steel
  • Authorization: CE
  • Dimensions: Width : 1600 mm  Height : 1800 mm  Depth : 400 mm
  • Weight: 155 kg
  • Cabinet type: Free standing cabinets
  • Variant: without mounting plate
  • Surface: Powder coating RAL 7035, texture finish
  • Sheet thickness: Door: 2 mm(ga)
    Roof angle: 2 mm(ga)
    Carrier angle ground group: 2,5 mm(ga)
    Frame/Body: 1,5 mm(ga)
    Rear wall: 1,5 mm(ga)

Notice

  • Rear panel with hinged door or other modifications involve delivery time. Price upon request.
  • Attention: Center attachment type 0391-0003-..-00 cannot be combined with vertical mounting rails type 0391-90..-00-03.
  • Modular assembly is achieved by using the horizontal/vertical mounting rails.For width 1600/2000, 2 horizontal mounting rails are required.
  • Please refer to base drawings for base mounting dimensions.
  • Cabinet complete with lifting eyes, top plate, bottom cable entry plate and 1 key
Grounding strips
3080-7036-01-38
Grounding strips
Length
360 mm
Typ
complete with studs
Grounding strips
3080-7036-01-00
Grounding strips
Length
80 mm
Typ
complete with studs
Grounding strips
3080-7036-01-20
Grounding strips
Length
200 mm
Typ
complete with studs
Grounding strips
3080-7036-11-36
Grounding strips
Length
360 mm
Typ
without bolts
Grounding strips
3080-7036-11-20
Grounding strips
Length
200 mm
Typ
without bolts
Grounding strips
3080-7036-11-00
Grounding strips
Length
80 mm
Typ
without bolts
Grounding strips
3080-7036-01-30
Grounding strips
Length
300 mm
Typ
complete with studs
Grounding strips
3080-7036-11-30
Grounding strips
Length
300 mm
Typ
without bolts
Diagram pocket 0396
0396-7115-80-07
Diagram pocket 0396
Suitable for width
800 mm
Top panel bolts
3003-9000-12-25
Top panel bolts
Material
Sheet steel
Thread
M12X25
Clip-nuts
2070-9102-34-00
Clip-nuts
Thread
M4
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-35-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-35-02
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-35-03
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-36-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-36-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-45-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,9 - 1,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9102-45-01
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,5 - 2,0 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9102-46-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,9 - 1,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9102-46-01
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,5 - 2,0 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9102-46-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,8 - 2,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9102-46-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9202-35-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9202-35-02
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9202-35-03
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9202-36-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9202-36-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9202-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9203-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,8 - 3,2 mm
For cut-out size
12,3x12,3 mm/0,48x0,48"
Variante
without grounding pin
Door opening limiter for H390/H395, H370/H375 cabinets
3080-7109-87-00
Door opening limiter for H390/H395, H370/H375 cabinets
Surface
Galvanized
Material
Sheet steel
Suitable for console type
H390/H395 and H370/H375 from door width 500 mm
Mounting plate
0348-1618-00-13
Mounting plate
Suitable for width
1600 mm
Suitable for height
1800 mm
100 mm high base for H390 cabinets only (flush with rear side)
0396-1601-41-17
100 mm high base for H390 cabinets only (flush with rear side)
Suitable for width
1600 mm
Suitable for depth
400 mm
Material
Sheet steel
Socket size
375 mm
Base height 7.87" only for cabinets type H390 (flush with rear side)
0396.1602.41.17
Base height 7.87" only for cabinets type H390 (flush with rear side)
Suitable for width
1600 mm
Suitable for depth
400 mm
Material
Sheet steel
Socket size
375 mm
Free-Standing cabinets Sheet steel H390, double door
Free-Standing cabinets Sheet steel H390, double door
Free-standing cabinets with double door design with bolted center post. Available with or without mounting plate. Mounting rails for 100 % utilization of häwa accessories available as option
Protective grounding according to DIN EN 61439-1, M8x20 studs on all movable and detachable parts as well as on top and bottom frame areas, mounting plate with ground connector screw and cable entry plates with drilling
Flanged edges prevent dust and water from entering when opening the door
Doors with…

Remember
1600 mm
1800 mm
400 mm
without mounting plate
Designed in accordance with IP55
and Nema 1, 12
CE
1600 mm
1800 mm
400 mm
with mounting plate
Designed in accordance with IP55
and Nema 1, 12
CE
1600 mm
2000 mm
400 mm
without mounting plate
Designed in accordance with IP55
and Nema 1, 12
CE
1600 mm
2000 mm
400 mm
with mounting plate
Designed in accordance with IP55
and Nema 1, 12
CE
2000 mm
1800 mm
400 mm
without mounting plate
Designed in accordance with IP55
and Nema 1, 12
CE
2000 mm
1800 mm
400 mm
with mounting plate
Designed in accordance with IP55
and Nema 1, 12
CE
2000 mm
2000 mm
400 mm
without mounting plate
Designed in accordance with IP55
and Nema 1, 12
CE
2000 mm
2000 mm
400 mm
with mounting plate
Designed in accordance with IP55
and Nema 1, 12
CE
