Universal accessories

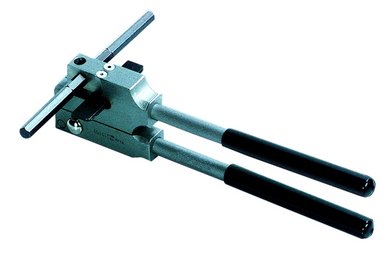

Punch Type

For punching connection holes ø 6 mm
Fix hole distances from front side: 20 mm
Interchangeable spacer bolts allow lateral hole distances of 11.5 mm, 32.5 mm, 100.5 mm and 147.5 mm without prior marking.

Order No.	Type	Suitable for	Material thickness	Weight	notice
1204-1301-06-00	With punching tool ø 6 mm / 0.23”	Round punches up to ø 8 mm	Sheet steel up to 1.5 mm	1.9 kg

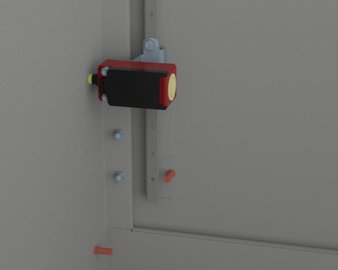

Door Switch for Wall-Mount Enclosures Serie 33 / H335 Console

The door switch can be mounted at any position on the continuous door frame at the hinge side.

Order No.	Contact	Housing and lid	Utilization category	Rated operating voltage	notice
3080-7041-61-33	1 Normally open, 1 normally closed	Glass fiber reinforced plastic (UL 94-V0)	AC-15, Ue/le 240V/3A	Ue 240V

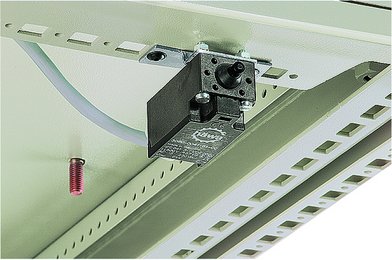

Door Switch for Cabinets H3X0/H3X5

The door switch can be mounted at any position of the continuous door frame.

Order No.	Contact	Housing and lid	Utilization category	Rated operating voltage	notice
3080-7041-61-95	1 Normally open, 1 normally closed		AC-15, Ue/le 240V/3A	Ue 240V

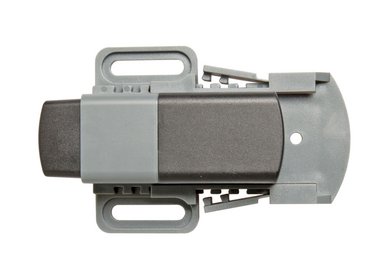

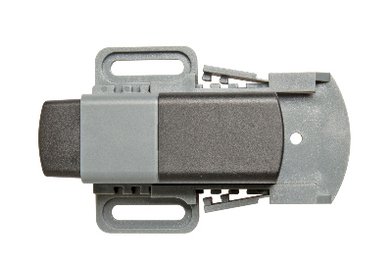

Door Contact Switch

The door contact switch monitors the position of the cabinet doors. Due to its wide mechanical adjustment range, the door contact switch is very versatile. The housing of the switch is adjustable within a range of 35 mm, the slotted hole in the threaded flange offers an additional 21 mm. The travel of the switch itself adds another 8 mm.

				notice
3080-0041-13-01	Change-over (co = closed open)	Screw fixing M5	4-pole terminal, max. tightening torque 0.5 Nm
3080-0041-13-02	Opener (nc=normally closed)	Screw fixing M5	4-pole terminal, max. tightening torque 0.5 Nm
