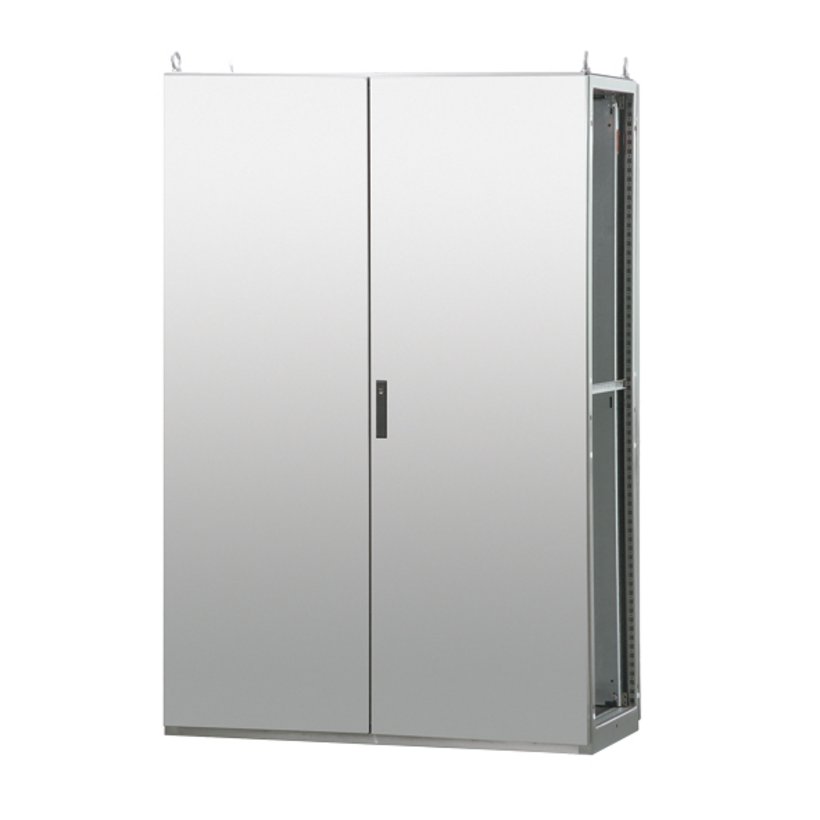

Modular cabinets Stainless steel  H375, double door

0375-1218-50-00

Modular cabinets Stainless steel H375, double door

  • Stainless steel
  • Modular cabinet
  • Depth-500 mm
  • Protection class IP/Nema/Type: see technical data
  • System accessories permit modular extension

Product description

Modular cabinets with single or double door design. Available with or without mounting plate.

Protective grounding according to DIN EN 61439-1, M8x20 studs on all movable and detachable parts as well as on top and bottom frame areas, mounting plate with ground connector screw and cable entry plates with drilling.

Flanged edges prevent dust and water from entering when opening the door

Doors with seamlessly foamed gasket can be mounted either at left or right side, standard delivery includes doors hinged on right side, Opening angle 120° can be modified to 180°, Locking: Bar lock standard, with 3 mm double mandrel bolt, Bolted reinforcement and attachment frame of solid square tubes perforated with 4.5 mm holes every 25 mm, Underlapping door with additional lock, From width 800 mm with stop roller

Top plate can be removed, with 4 lifting eyes M12 to DIN 580

Bottom with three-part, adjustable cable entry plate and 10.6 mm mounting holes.

C-flanged mounting plate, adjustable to depth every 25 mm; quick and easy mounting with häwa locking brackets; continuous mounting surface in second rearmost position

Technical data

  • Article number: 0375-1218-50-00
  • PRODUKTGRUPPENNAMEEBENE4: Modular cabinets
  • Protection class: IP55
    Type 1, 12
  • Material: Stainless steel no. 1.4301
  • Authorization: cULus
  • Dimensions: Width : 1200 mm  Height : 1800 mm  Depth : 500 mm
  • Weight: 120 kg
  • Cabinet type: Modular cabinets
  • Variant: without mounting plate
  • Surface: Externally brushed
  • Sheet thickness: Door: 2 mm(ga)
    Roof angle: 2 mm(ga)
    Carrier angle ground group: 2,5 mm(ga)
    Frame/Body: 2 mm(ga)
    Rear wall: 1,5 mm(ga)

Notice

  • Rear side with hinged door or other modifications upon request. Please refer to base drawings for base mounting dimensions.
  • Cabinet complete with hinged front door, bolted rear panel, lifting eyes, top cable entry plate and one key
Lateral rail
0396-0001-50-00
Lateral rail
Suitable depth
500 mm
Mounting rail
0396-0002-12-00
Mounting rail
Suitable for width
1200 mm
Support rail
0396-0004-50-00
Support rail
Suitable depth
500 mm
Mounting rail (Q)
0396-0005-12-00
Mounting rail (Q)
Suitable for width
1200 mm
Mounting rail (Q1)
0396-0019-12-00
Mounting rail (Q1)
Suitable for width
1200 mm
Support rail
0396-0062-12-00
Support rail
Suitable for width
1200 mm
Strut
0396-0006-50-00
Strut
Suitable depth
500 mm
EMI/RFI- shield rail
0396-0016-12-00
EMI/RFI- shield rail
Suitable for width
1200 mm
Grounding strips
3080-7036-01-38
Grounding strips
Length
360 mm
Typ
complete with studs
Grounding strips
3080-7036-01-00
Grounding strips
Length
80 mm
Typ
complete with studs
Grounding strips
3080-7036-01-20
Grounding strips
Length
200 mm
Typ
complete with studs
Grounding strips
3080-7036-11-36
Grounding strips
Length
360 mm
Typ
without bolts
Grounding strips
3080-7036-11-20
Grounding strips
Length
200 mm
Typ
without bolts
Grounding strips
3080-7036-11-00
Grounding strips
Length
80 mm
Typ
without bolts
Grounding strips
3080-7036-01-30
Grounding strips
Length
300 mm
Typ
complete with studs
Grounding strips
3080-7036-11-30
Grounding strips
Length
300 mm
Typ
without bolts
Partition panel
0396-0018-50-63
Partition panel
Suitable depth
500 mm
Combination work plate/diagram pocket
0396-7114-60-07
Combination work plate/diagram pocket
Dimensions
Width (b): 348 mm/13,70"
Suitable for width: 600 mm/23,62" (single door)
Suitable for width: 1200 mm/47,24" (double door)
Top panel bolts
3005-9000-12-25
Top panel bolts
Material
Stainless steel A2
Thread
M12X25
Clip-nuts
2070-9102-34-00
Clip-nuts
Thread
M4
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-35-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-35-02
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-35-03
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-36-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-36-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9102-45-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,9 - 1,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9102-45-01
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,5 - 2,0 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9102-46-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,9 - 1,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9102-46-01
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,5 - 2,0 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9102-46-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,8 - 2,9 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9102-46-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
with grounding pin
Clip-nuts
2070-9202-35-00
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9202-35-02
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9202-35-03
Clip-nuts
Thread
M5
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9202-36-00
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
0,7 - 1,6 mm/0,03 - 0,06"
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9202-36-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9202-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
2,8 - 3,5 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Clip-nuts
2070-9203-36-03
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,8 - 3,2 mm
For cut-out size
12,3x12,3 mm/0,48x0,48"
Variante
without grounding pin
Door opening limiter for H390/H395, H370/H375 cabinets
3080-7109-87-00
Door opening limiter for H390/H395, H370/H375 cabinets
Surface
Galvanized
Material
Sheet steel
Suitable for console type
H390/H395 and H370/H375 from door width 500 mm
Door opening limiter for H390/H395, H370/H375 cabinets
3080-7109-87-01
Door opening limiter for H390/H395, H370/H375 cabinets
Surface
Galvanized
Material
Sheet steel
Suitable for console type
H390/H395 and H370/H375 from door less than 500 mm
Mounting plate
0348-1218-00-13
Mounting plate
Suitable for width
1200 mm
Suitable for height
1800 mm
Fluorescent Lamp, Ready for Connection
3080-9042-01-07
Fluorescent Lamp, Ready for Connection
Operating voltage
AC 220-240V, 50/60 Hz
Version
Door switch
Fixing type
Screw mounted version
Socket
Schuko CEE 7/3 load: Max. 16 A
Fluorescent Lamp, Ready for Connection
3080-9042-04-07
Fluorescent Lamp, Ready for Connection
Operating voltage
AC 220-240V, 50/60 Hz
Version
Door switch
Fixing type
Screw mounted version
Socket
Schuko CEE 7/3 load: Max. 16 A
Fluorescent Lamp, Ready for Connection
3080-9042-60-37
Fluorescent Lamp, Ready for Connection
Operating voltage
AC 220-240V, 50/60 Hz
Version
Door switch
Fixing type
Screw mounted version
Socket
Schuko CEE 7/3 load: Max. 16 A
Side panel H375
0376-7018-50-61
Side panel H375
Suitable for height
1800 mm
Suitable for depth
500 mm
Material
Stainless steel no. 1.4301
Bases height 100 mm/3.94" for cabinets type H370 and H375
0376-1201-50-11
Bases height 100 mm/3.94" for cabinets type H370 and H375
Suitable for width
1200 mm
Suitable for depth
500 mm
Material
Stainless steel no. 1.4301
Socket size
450 mm
Base height 200 mm/7.87"  for cabinets type H370 and H375
0376.1202.50.11
Base height 200 mm/7.87" for cabinets type H370 and H375
Suitable for width
1200 mm
Suitable for depth
500 mm
Material
Stainless steel no. 1.4301
Socket size
450 mm
Lateral base rail type 0376
0376-0000-50-01
Lateral base rail type 0376
Suitable for depth
500 mm
Material
Stainless steel no. 1.4301
Suitable for console type
for H375
Replacement door for stainless steel cabinets type H370/H375
0375-1218-01-90
Replacement door for stainless steel cabinets type H370/H375
Suitabel for Width
1200 mm
Suitabel for Height
1800 mm
Material
Stainless steel
Type
Left door of double door set
Replacement door for stainless steel cabinets type H370/H375
0375-1218-02-90
Replacement door for stainless steel cabinets type H370/H375
Suitabel for Width
1200 mm
Suitabel for Height
1800 mm
Material
Stainless steel
Type
right
Replacement door for stainless steel cabinets type H370/H375
0375-1218-05-90
Replacement door for stainless steel cabinets type H370/H375
Suitabel for Width
1200 mm
Suitabel for Height
1800 mm
Material
Stainless steel
Type
Double door set
Door Switch for Cabinets H3X0/H3X5
3080-7041-61-95
Door Switch for Cabinets H3X0/H3X5
Contact
1 Normally open, 1 normally closed
Utilization category
AC-15, Ue/le 240V/3A
Rated operating voltage
Ue 240V
Door Contact Switch
3080-0041-13-01
Door Contact Switch
Design
Change-over (co = closed open)
Mounting
Screw fixing M5
Connection
4-pole terminal, max. tightening torque 0.5 Nm
Door Contact Switch
3080-0041-13-02
Door Contact Switch
Design
Opener (nc=normally closed)
Mounting
Screw fixing M5
Connection
4-pole terminal, max. tightening torque 0.5 Nm
Modular cabinets Stainless steel  H375, double door
Modular cabinets Stainless steel H375, double door
Modular cabinets with single or double door design. Available with or without mounting plate.
Protective grounding according to DIN EN 61439-1, M8x20 studs on all movable and detachable parts as well as on top and bottom frame areas, mounting plate with ground connector screw and cable entry plates with drilling.
Flanged edges prevent dust and water from entering when opening the door
Doors with seamlessly foamed gasket can be mounted either at left or right side, standard delivery includes doors…

Remember
1200 mm
1800 mm
500 mm
without mounting plate
IP55
Type 1, 12
cULus
1200 mm
1800 mm
500 mm
with mounting plate
IP55
Type 1, 12
cULus
1200 mm
2000 mm
500 mm
without mounting plate
IP55
Type 1, 12
cULus
1200 mm
2000 mm
500 mm
with mounting plate
IP55
Type 1, 12
cULus

Contact
Find your personal point of contact
We are happy to help you.

The best control cabinets and enclosures are not produced on an assembly line, but through close dialog with our customers. Are you ready to begin?
Then contact your personal häwa consultant today.

Choose your advisor now
