Pendant Arm System

HMA I-080 Foot Joint/Wall Flange

Foot joint/wall flange for connecting a HMA I- profile tube to vertical or horizontal surfaces.
Ceiling mounting is possible.
Connection to a HMA I- profile tube is strain-relieved and torsion resistant.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-06-01	For connection to machines or walls	55 x 43 mm/2,17 x 1,69"	RAL 7016

HMA I-080 wall joint

Wall joint for horizontal swiveling of the pendant arm.
Overhead mounting is possible.
Detachable lid for easy cable routing and mounting of a HMA I- profile tube.
Connection to a HMA I- profile tube is strain-relieved and torsion resistant.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-02-01	For connection to machines or walls	55 x 43 mm/2,17 x 1,69"	RAL 7016

HMA I-080 set-up joint

Set-up joint for horizontal swiveling of the pendant arm.
Ceiling mounting is possible.
Detachable lid for easy cable routing and mounting of a HMA I- profile tube.
Connection to a HMA I- profile tube is strain-relieved and torsion resistant.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-01-01	For connection to machines or walls	55 x 43 mm/2,17 x 1,69"	RAL 7016

HMA I-080 set-up swivel joint

Set-up swivel joint for horizontal swiveling of the pendant arm.
Detachable lid for easy cable routing and mounting of a HMA I- profile tube.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-60-01	For connection to machines or walls	55 x 43 mm/2,17 x 1,69"	RAL 7016

HMA I-080 vertical wall joint

Wall joint for vertical swiveling of the pendant arm.
Overhead mounting is possible.
Detachable lid for easy cable routing and mounting of a HMA I- profile tube.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-02-02	For connection to machines or walls	55 x 43 mm/2,17 x 1,69"	RAL 7016

HMA I-080 vertical set-up joint

Set-up joint for vertical swiveling of the pendant arm
Ceiling mounting is possible

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-01-02	For connection to machines or walls	55 x 43 mm/2,17 x 1,69"	RAL 7016

HMA I-080 Pillar

Resistant pillar for rigid mounting of pendant arm systems on floor and ceiling.
With lateral cable duct.
Length up to 2200 mm; in 50 mm increments, each length available upon request.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7450-12-xxxx	For connection to machines or walls	at top and bottom Ø 60 mm, lateral Ø 50 mm	RAL 7035

HMA I-040 Base Flange

Base flange for connecting a HMA I-040 round tube with horizontal surfaces.
Vertical alignment is possible by using an adjusting screw.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-26-01	For connection to machines or walls	Ø 48 mm/1,89"	RAL 7016

HMA I-080 rotating elbow

Rotating elbow for connecting a horizontal and a vertical HMA I- profile tube.
Detachable lid for easy cable routing and mounting of a HMA I- profile tube.
Connection to a HMA I- profile tube is strain-relieved and torsion resistant.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-25-01	between 2 tubes	38 x 55 mm/1,5 x 2,17"	RAL 7016

HMA I-080 intermediate joint

Intermediate joint for connecting two HMA I- profile tubes and for horizontal swiveling of the pendant arm.
Detachable lid for easy cable routing and mounting of a HMA I- profile tube.
Connection to a HMA I- profile tube is strain-relieved and torsion resistant.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-03-01	between 2 tubes	55 x 43 mm/2,17 x 1,69"	RAL 7016

HMA I-040 elbow adapter

For connecting a horizontal HMA I-080 profile tube with a vertical HMA I-040 round tube.
90° angle (rigid).
Overhead mounting is possible.
Detachable lid for easy cable routing and mounting of a HMA I-080 profile tube.
Drop protection by means of a screw M5.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-16-01	between 2 tubes	Ø 48 mm/1,89"	RAL 7016

HMA I-080 elbow

Elbow for connecting a horizontal and a vertical HMA I- profile tube.
90° angle (rigid).
Overhead mounting is possible.
Detachable lid for easy cable routing and mounting of a HMA I- profile tube.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-04-01	between 2 tubes	55 x 43 mm/2,17 x 1,69"	RAL 7016

HMA I-080 elbow joint

Elbow joint for connecting a horizontal HMA I- profile tube to an enclosure.
Overhead mounting is possible.
Detachable lid for easy cable routing and mounting of a HMA I- profile tube.
Connection to a HMA I- profile tube is strain-relieved and torsion resistant.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-08-01	For connection to enclosures	55 x 43 mm/2,17 x 1,69"	RAL 7016

HMA I-080 narrow flange elbow joint

Narrow flange elbow joint for connecting a horizontal HMA I- profile tube to an enclosure with low depth.
Overhead mounting is possible.
Detachable lid for easy cable routing and mounting of a HMA I- profile tube.
Connection to a HMA I- profile tube is strain-relieved and torsion resistant.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-09-01	For connection to enclosures	55 x 43 mm/2,17 x 1,69"	RAL 7016

HMA I-080 Joint

Overhead mounting is possible.
Joint for connecting a vertical HMA I-080 profile tube to an enclosure.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-05-01	For connection to enclosures	55 x 43 mm/2,17 x 1,69"	RAL 7016

HMA I-080 Narrow Flange Joint

Overhead mounting is possible.
Narrow flange joint for connecting a vertical HMA I-080 profile tube to an enclosure with low depth.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-07-01	For connection to enclosures	55 x 43 mm/2,17 x 1,69"	RAL 7016

HMA I-040 Joint

Overhead mounting is possible.
For connecting a vertical HMA I-040 round pipe to an enclosure.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-17-01	For connection to enclosures	Ø 48 mm/1,89"	RAL 7016

HMA I-080 Swivel-Tilt Joint VESA 100

Component for connecting monitors to HMA I-080 round pipes
Detachable cover for easy cable routing
Connection to VESA 100

Art No.	Position	Cable passage	Surface finish	Remember
7595-7404-22-01	For connection to enclosures	40 x 31 mm/1,57 x 1,22"	RAL 7016

HMA I-080 Inclination Adapter 10°

10° inclination.
Inclination adapter 10° for fixed connection of enclosures, joints or elbow joints.

Art No.	Cable passage	Surface finish	Remember
7595-7401-10-01	Ø 60 mm/2,36"	RAL 7016

HMA I-080 Adjustable Inclination Adapter

Inclination adapter for connecting enclosures and joints.
Detented inclination adjustment in 8° increments.

Art No.	Cable passage	Surface finish	Remember
7595-7401-19-01	Ø 65 mm/2,56"	RAL 7016

HMA I-080 Narrow Flange Inclination Adapter 10°

10° inclination.
Narrow flange inclination adapter 10° for fixed connection of enclosures with low depth, joints or elbow joints.

Art No.	Cable passage	Surface finish	Remember
7595-7401-11-01	57 x 60 mm/2,24 x 2,36"	RAL 7016

HMA I-080 Adjustable Narrow Flange Inclination Adapter

Detented inclination adjustment in 8° increments.
Inclination adapter for connecting enclosures and joints.

Art No.	Cable passage	Surface finish	Remember
7595-7401-18-01	32 x 60 mm/1,26 x 2,36"	RAL 7016

HMA I-080 narrow flange compact joint

Overhead mounting is possible.
Can be used where space is at a premium.
Narrow flange compact joint for connecting a vertical HMA I- profile tube to an enclosure with low depth.

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-14-01	For connection to enclosures	55 x 43 mm/2,17 x 1,69"	RAL 7016

HMA I-080 Enclosure Adapter VESA

Detachable lid for easy cable routing.
Connection according to VESA 75.

Art No.	Cable passage	Surface finish	Remember
7595-7401-12-01	50x75 mm/75x75 mm; 1,97x2,95"/2,95x2,95"	RAL 7016

HMA I-080 light adapter

Connecting pipe Ø 25 mm.
Light adapter for rigid fixing of signal lights.Light adapter for rigid fixing of signal lights.

Art No.	Surface finish	Remember
7595-7401-15-01	RAL 7016

HMA I-040 light adapter

Connecting pipe Ø 25 mm.
Light adapter for rigid fixing of signal lights.

Art No.	Surface finish	Remember
7595-7401-90-05	RAL 7016

HMA I-080 Profile Tubes

HMA I-080 profile tube for horizontal and vertical assembly.
Load-dependent inclination adjustment up to 4° by means of adjustment screws.


7595-7401-30-0250	55 x 43 mm/2,17 x 1,69"	RAL 7035	Length: 250 mm
7595-7401-30-0500	55 x 43 mm/2,17 x 1,69"	RAL 7035	Length: 500 mm
7595-7401-30-1000	55 x 43 mm/2,17 x 1,69"	RAL 7035	Length: 1.000 mm
7595-7401-30-1500	55 x 43 mm/2,17 x 1,69"	RAL 7035	Length: 1.500 mm
7595-7401-30-2000	55 x 43 mm/2,17 x 1,69"	RAL 7035	Length: 2.000 mm

HMA I-040 Round Tubes

HMA I-040 round pipe for vertical assembly


7595-7401-40-0250	Ø 40 mm/1,57"	RAL 7035	Length: 250 mm
7595-7401-40-0500	Ø 40 mm/1,57"	RAL 7035	Length: 500 mm
7595-7401-40-0750	Ø 40 mm/1,57"	RAL 7035	Length: 750 mm
7595-7401-40-1500	Ø 40 mm/1,57"	RAL 7035	Length: 1.500 mm

HMA I-080 cable protection plate

Protects cabling from damage at enclosure cut-outs

Art No.	Surface finish	Remember
7595-7401-90-01	RAL 7016

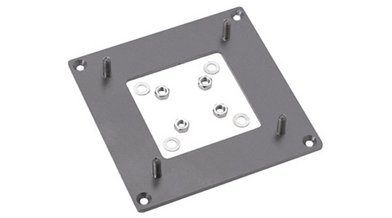

HMA VESA 100 Adapter Plate

For fixed connection of monitors with VESA 100 hole pattern

Art No.	Surface finish	Remember
7595-7401-90-02	RAL 7016

HMA I-080 Rotofix

Rotofix for direct attachment assembly

Art No.	Position	Cable passage	Surface finish	Remember
7595-7401-21-01	direct attachment assembly	Ø 60 mm/2,36"	RAL 7016
