Manually Operated Hydraulic Quick-Press 300

2662-7203-00-01

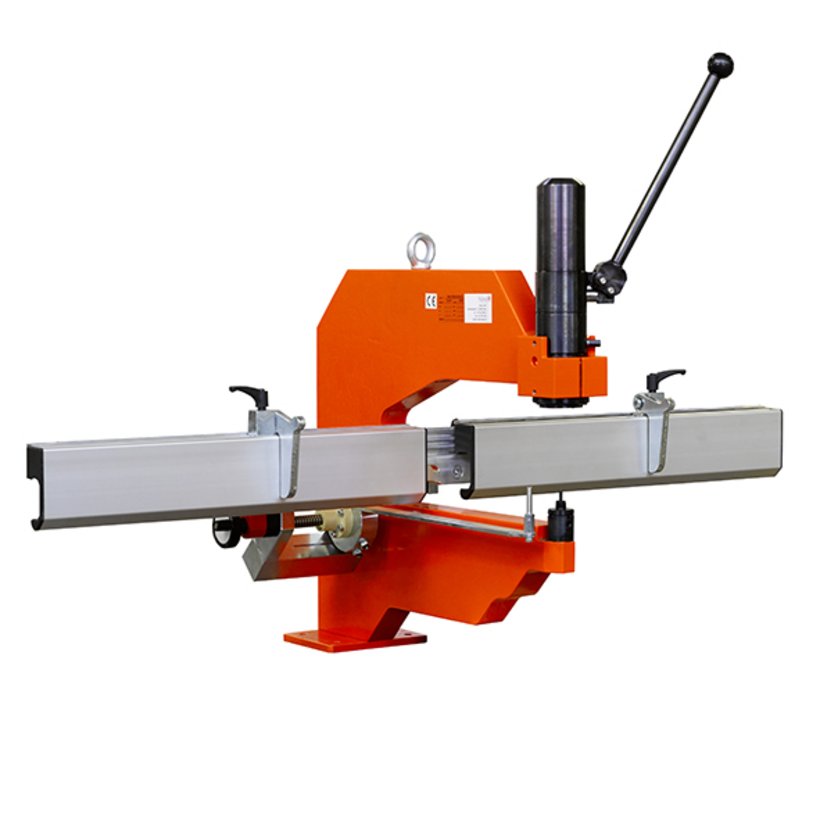

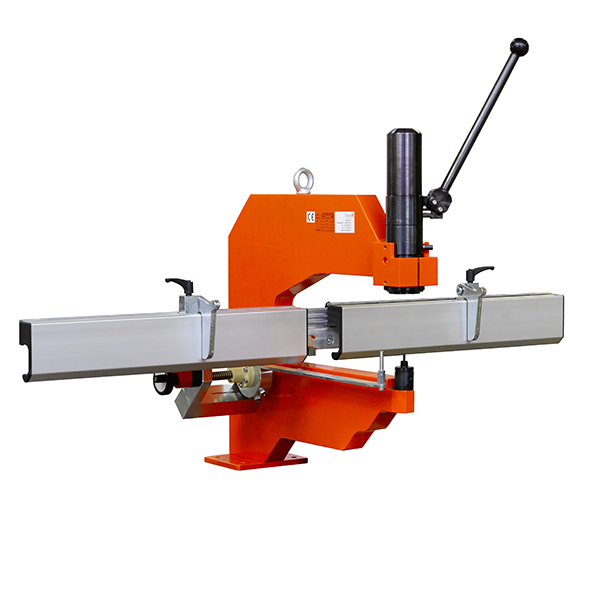

Manually Operated Hydraulic Quick-Press 300

  • Punching to the outermost edge is possible
  • Punching marks or drill holes are not required
  • Useful processing depth 300 mm /11.81”

Product description

Manually operated hydraulic bow punch for quick and precise punching without pilot holes.

For punching junction boxes, wall-mount enclosures, doors, covers, mounting plates, cable entry plates and flat/flanged sheet metals up to 40 mm / 1.57“

Length and depth stop with two movable tilt stops

Punching of hole rows through precisely adjustable positioning stop

Technical Data

  • Order No.: 2662-7203-00-01
  • Application: Punching of cut-outs
  • PRODUKTFAMILIE: For workshop equipment
  • Material: sheet steel, stainless steel, aluminium
  • Suitable for: round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
  • Material thickness: Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
  • Punching force: 45 kN
  • Piston stroke: 42 mm
  • Processing depth: 300 mm
  • Length stop: Adjustable from 38 to 500 mm; 1.5" to 19.69" on both sides of the cylinder
  • Depth stop: Adjustable from 5 to 300 mm; 0.2" to 11.81"
  • Positioning stop: Adjustable backlash-free through measuring scale from 30 to 100 mm; 1.18" to 3.94"
  • Punch holder: ø 13 mm/0,51"
  • Weight: 64 kg

Notice

  • Further Quick-Press 300 versions are available.
  • Bow Punches with hand pump, length, depth and positioning stop
  • 2 tilt stops
  • adapter for holding punches
Round Punches with clamping pin, with 40 mm External Die Diameter
2680-0206-60-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Version
for Quick-Press 300
Size
ø 6,6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Round Punches with clamping pin, with 40 mm External Die Diameter
2680-0209-00-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Version
for Quick-Press 300
Size
ø 9 mm/0,35"
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Round Punches with clamping pin, with 40 mm External Die Diameter
2680-0212-20-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Version
for Quick-Press 300
Size
ø 12,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Round Punches with clamping pin, with 40 mm External Die Diameter
2680-0212-70-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Version
for Quick-Press 300
Size
ø 12,7 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Round Punches with clamping pin, with 40 mm External Die Diameter
2680-0215-20-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Version
for Quick-Press 300
Size
ø 15,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Round Punches with clamping pin, with 40 mm External Die Diameter
2680-0216-20-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Version
for Quick-Press 300
Size
ø 16,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Round Punches with clamping pin, with 40 mm External Die Diameter
2680-0218-60-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Version
for Quick-Press 300
Size
ø 18,6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0205-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0206-60-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 6,6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0209-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 9 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0210-50-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 10,5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0212-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 12,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0212-70-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 12,7 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0215-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 15,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0216-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 16,2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Round Punches with clamping pin, with 50 mm External Die Diameter
2661-0218-60-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 18,6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Round Punches with 40 mm External Die Diameter
2680-0220-20-00
Round Punches with 40 mm External Die Diameter
Product range
For workshop equipment
Version
For Quick-Press 300
Size
ø 20,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Round Punches with 40 mm External Die Diameter
2680-0220-40-00
Round Punches with 40 mm External Die Diameter
Product range
For workshop equipment
Version
For Quick-Press 300
Size
ø 20,4 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Round Punches with 40 mm External Die Diameter
2680-0222-50-00
Round Punches with 40 mm External Die Diameter
Product range
For workshop equipment
Version
For Quick-Press 300
Size
ø 22,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Round Punches with 50 mm External Die Diameter
2661-0220-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 20,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Round Punches with 50 mm External Die Diameter
2661-0220-40-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 20,4 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Round Punches with 50 mm External Die Diameter
2661-0221-30-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 21,3 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Round Punches with 50 mm External Die Diameter
2661-0222-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 22,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Round Punches with 50 mm External Die Diameter
2661-0224-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 24,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Round Punches with 50 mm External Die Diameter
2661-0225-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 25,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Round Punches with 50 mm External Die Diameter
2661-0228-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 28,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Round Punches with 50 mm External Die Diameter
2661-0230-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 30,5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Round Punches with 50 mm External Die Diameter
2661-0232-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 32,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Round Punches with 50 mm External Die Diameter
2661-0237-00-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 37 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Round Punch with Stepped Die
2661-0240-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 40,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Round Punch with Stepped Die
2661-0250-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 50,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Round Punch with Stepped Die
2661-0263-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 63,2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Square Punch for Quick-Press 300
2661-0422-20-00
Square Punch for Quick-Press 300
Product range
For workshop equipment
Size ø
22,2 x 22,2 mm; 0,87 x 0,87"
Clamping pin
ø 13 mm/0,51"
Die - external diameter
1,97 inch
Square Punch for Quick-Press 300
2661-0425-40-00
Square Punch for Quick-Press 300
Product range
For workshop equipment
Size ø
25,4 x 25,4 mm; 1 x 1"
Clamping pin
ø 13 mm/0,51"
Die - external diameter
1,97 inch
Round Punch with Two Keyways for Quick-Press 300
2661-0922-52-01
Round Punch with Two Keyways for Quick-Press 300
Product range
For workshop equipment
Size
ø 22,5 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
Clamping pin
ø 13 mm/0,51"
Die - external diameter
1,97 inch
Die Holder for Quick-Press 300
2680-0340-00-00
Die Holder for Quick-Press 300
Product range
For workshop equipment
Type
for dies with 40 mm external diameter
Clamping pin
ø 13 mm/0,51"
Die Holder for Quick-Press 300
2680-0350-00-00
Die Holder for Quick-Press 300
Product range
For workshop equipment
Type
for dies with 50 mm external diameter
Clamping pin
ø 13 mm/0,51"
Adapter for Quick-Press 300
2661-0314-00-00
Adapter for Quick-Press 300
Product range
For workshop equipment
Clamping pin
ø 13 mm/0,51"
Punch holder thread
M14x1,5
Length and Depth Stop for Quick-Press 300
2662-0700-02-00
Length and Depth Stop for Quick-Press 300
Product range
For workshop equipment
Depth stop
Adjustable from 5 to 300 mm; 0.2" to 11.81"
Setting range
Adjustable from 38 to 500 mm; 1.5" to 19.69" on both sides of the cylinder
Positioning Stop for Quick-Press 300
2662-0750-02-00
Positioning Stop for Quick-Press 300
Product range
For workshop equipment
Setting range
Adjustable backlash-free through scale 30 – 100 mm; 1.18“ – 3.94“
Tilt Stop for Quick-Press 300
2662-0701-01-00
Tilt Stop for Quick-Press 300
Product range
For workshop equipment
Type
left side of the cylinder
Tilt Stop for Quick-Press 300
2662-0701-02-00
Tilt Stop for Quick-Press 300
Product range
For workshop equipment
Type
right side of the cylinder
Pedestal for Quick-Press 300
2662-0800-01-00
Pedestal for Quick-Press 300
Product range
For workshop equipment
Working heigth Quick-Press
850 mm
Hydraulic Cylinder for Quick-Press 300
2662-7100-82-06
Hydraulic Cylinder for Quick-Press 300
Product range
For workshop equipment
Punch holder
ø 13 mm/0,51"
Cylinder stroke
42 mm
Finger Guard + Wiper
2642-0202-01-00
Finger Guard + Wiper
Product range
For workshop equipment
Version
for Quick-Press 300 and for Maxi-Press 500
Swivel Door Support for Bow Punch
2600-9500-00-02
Swivel Door Support for Bow Punch
Product range
For workshop equipment
Working height
Continuously adjustable 1.000 – 1.200 mm / 39.37" - 47.24"
Workpiece dimensions
max. 800 x 2.000 mm/ 31.5" x 78.74"
Workpiece weight
max. 45 kg; 99.2 lbs
Adapter for Quick-Press 300
2661-0314-00-00
Adapter for Quick-Press 300
Product range
For workshop equipment
Clamping pin
ø 13 mm/0,51"
Punch holder thread
M14x1,5
Length and Depth Stop for Quick-Press 300
2662-0700-02-00
Length and Depth Stop for Quick-Press 300
Product range
For workshop equipment
Depth stop
Adjustable from 5 to 300 mm; 0.2" to 11.81"
Setting range
Adjustable from 38 to 500 mm; 1.5" to 19.69" on both sides of the cylinder
Tilt Stop for Quick-Press 300
2662-0701-01-00
Tilt Stop for Quick-Press 300
Product range
For workshop equipment
Type
left side of the cylinder
Tilt Stop for Quick-Press 300
2662-0701-02-00
Tilt Stop for Quick-Press 300
Product range
For workshop equipment
Type
right side of the cylinder
Positioning Stop for Quick-Press 300
2662-0750-02-00
Positioning Stop for Quick-Press 300
Product range
For workshop equipment
Setting range
Adjustable backlash-free through scale 30 – 100 mm; 1.18“ – 3.94“
Contact for products
Find your personal point of contact
We are happy to help you.

The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.

Choose your advisor now

PM-Leitung: Herr Eglof. PM-Leitung: Herr Eglof.
