Punching tools for clean and burr-free hole punching

Manually Operated Hydraulic Quick-Press 300

Manually operated hydraulic bow punch for quick and precise punching without pilot holes.
For punching junction boxes, wall-mount enclosures, doors, covers, mounting plates, cable entry plates and flat/flanged sheet metals up to 40 mm
Length and depth stop with two movable tilt stops
Punching of hole rows through precisely adjustable positioning stop

Order No.	Application	Suitable for	Material thickness	Punch holder	Processing depth	notice
2662-7203-00-01	Punching of cut-outs	round punches up to ø 40.5 mm / square punches up to 25.4 mm / rectangular punches up to 36 mm diagonal	Sheet steel to 2 mm / Stainless steel to 1,5 mm / Aluminum to 3 mm	ø 13 mm	300 mm

Hydraulic Quick-Press 300

Hydraulically operated bow punch for quick and precise drilling without pilot holes
Can be connected to the häwa electric or air hydraulic unit
For punching junction boxes, wall-mount enclosures, doors, covers, mounting plates, cable entry plates and flat/flanged sheet metals up to 40 mm
Punch center point indicator via laser diode can be retrofitted
Length and depth stop with two movable tilt stops
Punching of hole rows through precisely adjustable positioning stop

Order No.	Application	Suitable for	Material thickness	Punch holder	Processing depth	notice
2662-7205-00-01	Punching of cut-outs	round punches up to ø 40.5 mm / square punches up to 25.4 mm / rectangular punches up to 36 mm diagonal	Sheet steel to 2 mm / Stainless steel to 1,5 mm / Aluminum to 3 mm	ø 13 mm	300 mm

Hydraulic Quick-Press 300 with center point indicator

Hydraulically operated bow punch for quick and precise drilling without pilot holes
Can be connected to the häwa electric or air hydraulic unit
For punching junction boxes, wall-mount enclosures, doors, covers, mounting plates, cable entry plates and flat/flanged sheet metals up to 40 mm
With center point indicator via laser diode
Length and depth stop with two movable tilt stops
Punching of hole rows through precisely adjustable positioning stop

Order No.	Application	Suitable for	Material thickness	Punch holder	Processing depth	notice
2662-7206-00-01	Punching of cut-outs	round punches up to ø 40.5 mm / square punches up to 25.4 mm / rectangular punches up to 36 mm diagonal	Sheet steel to 2 mm / Stainless steel to 1,5 mm / Aluminum to 3 mm	ø 13 mm	300 mm

Quick-Press 400

Bow punch with mounted hydraulic power unit for quick and precise drilling without pilot holes
For punching junction boxes, wall-mount enclosures, doors, covers, mounting plates, cable entry plates, flat or up to 15 mm flanged and 400 mm deep sheet metals. Depending on the enclosure design, it is possible to punch the base of 300 mm deep enclosures
Double operating hydraulic cylinder with automatic or inching mode controlled via foot switch, with adjustable piston return stroke (for serial…

Order No.	Application	Suitable for	Material thickness	Punch holder	Processing depth	notice
2665-0000-10-00	Punching of cut-outs	round punches up to ø 40.5 mm / square punches up to 25.4 mm / rectangular punches up to 36 mm diagonal	Sheet steel to 2,5 mm / Stainless steel to 1,75 mm / Aluminum to 3 mm	ø 20 mm	400 mm

Maxi-Press 500

Hydraulically operated bow punch for quick and precise punching without pilot holes.
Can be connected to the häwa electric or air hydraulic pump.
For punching flat and up to 30 mm flanged sheet metals.
Center point indicator via laser diode.
With transparent finger guard with wiper function. Scraps up to ø 63.5 mm drop down to the bottom.
With mounted length and depth stop.

Order No.	Application	Suitable for	Material thickness	Punch holder	Processing depth	notice
2643-7106-00-00	Punching of cut-outs	round punches up to ø 63.5 mm / square punches up to 46 mm / rectangular punches up to 60 mm diagonal	Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm	ø 20 mm	500 mm

Mobile Multi-Press 500 with Workpiece Support

Powerful bow punch with integrated hydraulic unit for quick and exact punching without pilot holes.
Exchangeable die holders allow the use of punching tools up to 92x92 mm
Designed for punching junction boxes, wall-mount enclosures, doors, covers/lids, mounting/cable plates, flat and flanged sheets up to 40 mm
The “narrow“ die supports are perfect for punching junction boxes and enclosures.
Center point indicator via laser diode.
Pivot door support.
Transparent finger guard with wiper function.
Easy…

Order No.	Application	Suitable for	Material thickness	Punch holder	Processing depth	notice
2654-7110-00-00	Punching of cut-outs	Round punches up to ø 92 mm Square punches 92 mm Rectangular punches up to a max. length of 92 mm	Sheet steel up to 2 mm Stainless steel up to 1.5 mm Polyester up to 4 mm	ø 30 mm	500 mm

Powerman Junior

Manually operated hydraulic pump
Pump threaded for 9.5 mm draw stud
For punching sheet steel, stainless steel and aluminum
Available draw studs: for punches threaded for 6,3 mm, 9,5 mm, 11,1 mm and 19 mm

					notice
2622-7200-02-00	without round punches	round punches up to ø 50.5 mm / square punches up to 25.4 mm / rectangular punches up to 37.5 mm diagonal	Sheet steel to 2 mm / Stainless steel to 1,5 mm / Aluminum to 3 mm	9.5 mm draw stud
2622-7204-02-01	with metric round punch kit	round punches up to ø 50.5 mm / square punches up to 25.4 mm / rectangular punches up to 37.5 mm diagonal	Sheet steel to 2 mm / Stainless steel to 1,5 mm / Aluminum to 3 mm	9.5 mm draw stud

Powerman Vario

Manually operated hydraulic pump
Pump threaded for 19 mm draw studs
360° rotatable and pivoting cylinder, can be operated also under load
For punching sheet steel, stainless steel and aluminum
Available draw studs: for punches threaded for 9.5 mm, 11.1 mm and 19 mm studs.


2626-7200-01-00	without punching tools in sheet metal case	round punches up to ø 80 mm / square punches up to 60 mm / rectangular punches up to 85 mm diagonal	Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm	19 mm draw studs
2626-7206-01-00	PG1 with round punches from PG9 to PG21 in plastic case	round punches up to ø 80 mm / square punches up to 60 mm / rectangular punches up to 85 mm diagonal	Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm	19 mm draw studs
2626-7206-02-00	PG2 with round punches from PG9 to PG29 in plastic case	round punches up to ø 80 mm / square punches up to 60 mm / rectangular punches up to 85 mm diagonal	Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm	19 mm draw studs
2626-7207-01-01	with metric round punches from M12 to M50 in plastic case	round punches up to ø 80 mm / square punches up to 60 mm / rectangular punches up to 85 mm diagonal	Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm	19 mm draw studs

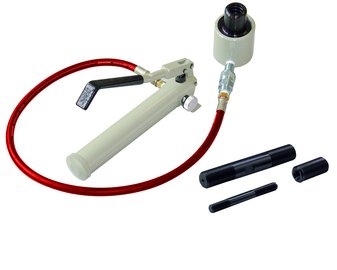

Powerman

Manually operated hydraulic pump
Pump threaded for 19 mm draw studs
Screw coupling, also rotatable under load
1.000 mm long hydraulic hose
For punching sheet steel, stainless steel and aluminum
Available draw studs: for punches threaded for 9.5 mm, 11.1mm and 19 mm threads.

Order No.	Suitable for	Material thickness	Threaded for	notice
2684-7100-01-01	round punches up to ø 120 mm / square punches 92 mm / rectangular punches up to 138 mm diagonal	Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm	19 mm draw studs

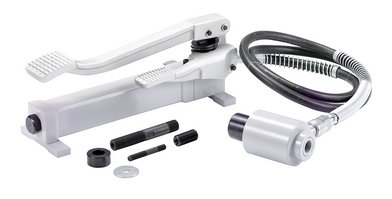

Powerman Step

Foot operated hydraulic pump
Pump threaded for 19 mm draw studs
Screw coupling, also rotatable under load
1.800 mm long hydraulic hose
For punching sheet steel, stainless steel and aluminum
Available draw studs: for punches threaded for 9.5 mm, 11.1 mm and 19 mm threads.

Order No.	Suitable for	Material thickness	Threaded for	notice
2685-7200-01-01	round punches up to ø 120 mm / square punches 92 mm / rectangular punches up to 138 mm diagonal	Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 4 mm	19 mm draw studs

Powerlec Vario Plus

Battery-operated hydraulic pump
Pump threaded for 19 mm draw stud
360° rotatable cylinder, can also be operated under load
Li-Ion battery (not included in the scope of delivery)
For punching sheet steel and stainless steel
Available draw studs for: punches threaded for 9.5 mm, 11.1 mm, and 19 mm


2629-7400-00-00	Without punching tool	round punches up to ø 120 mm Square punches 125 mm Rectangular punches up to 175 mm; 6.89" diagonal	Sheet steel up to 2 mm Stainless steel up to 1,5 mm	19 mm draw studs
2629-7400-01-00	with metric round punch kit	round punches up to ø 120 mm Square punches 125 mm Rectangular punches up to 175 mm; 6.89" diagonal	Sheet steel up to 2 mm Stainless steel up to 1,5 mm	19 mm draw studs
2629-7401-00-00		round punches up to ø 120 mm Square punches 125 mm Rectangular punches up to 175 mm; 6.89" diagonal	Sheet steel up to 2 mm Stainless steel up to 1,5 mm	19 mm draw studs
2629-7402-00-00		round punches up to ø 120 mm Square punches 125 mm Rectangular punches up to 175 mm; 6.89" diagonal	Sheet steel up to 2 mm Stainless steel up to 1,5 mm	19 mm draw studs
