2680-0220-20-00

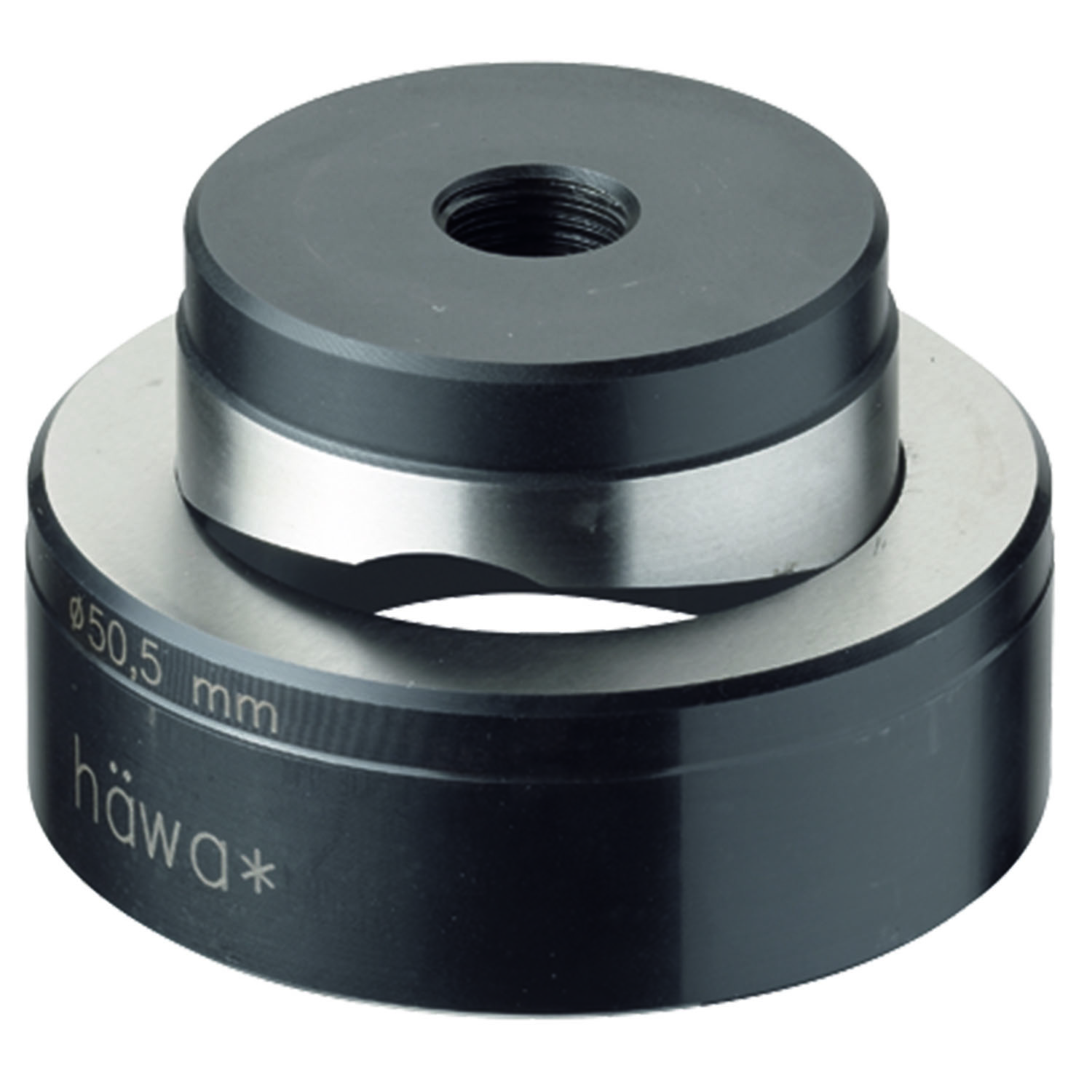

Round Punches with 40 mm External Die Diameter
- Long lifetime
- Maximum productivity with minimum effort
Product description
For the use in bow punches
Low tool wear through optimum cutting geometry
Quick, precise and burr-free punching
Technical data
-
Article number: 2680-0220-20-00
-
Max. Sheet thickness: Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
-
Product family: For workshop equipment
-
PRODUKTGRUPPENNAMEEBENE6: Round punches (workshop equipment)
-
Version: For Quick-Press 300
-
Size ø: 20.2 mm
-
Die mounting diameter: 40 mm
-
Metric: 20
Notice
- ATTENTION: The lower value shown in the technical data of the punching tool and the bow punch specifies the maximum possible sheet metal thickness.
- Before selecting this punch, check if you already have the required die holder (ø 40 mm).
- For further product information, see "Downloads".
- 1 round punch, consisting of punch and die
2680-0900-20-20
Round Punch Rubber Wipers for Bow Punches
Product range
For workshop equipment
For punch size
20.2 mm
2680-0340-00-00
Die Holder ø 40 mm for Quick-Press 300
Product range
For workshop equipment
Clamping pin
ø 13 mm/0,51"
Type
die with 40 mm external diameter
2662-7203-00-01
Manually Operated Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder Ø
13 mm
2662-7205-00-01
Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
