2680-0206-60-00

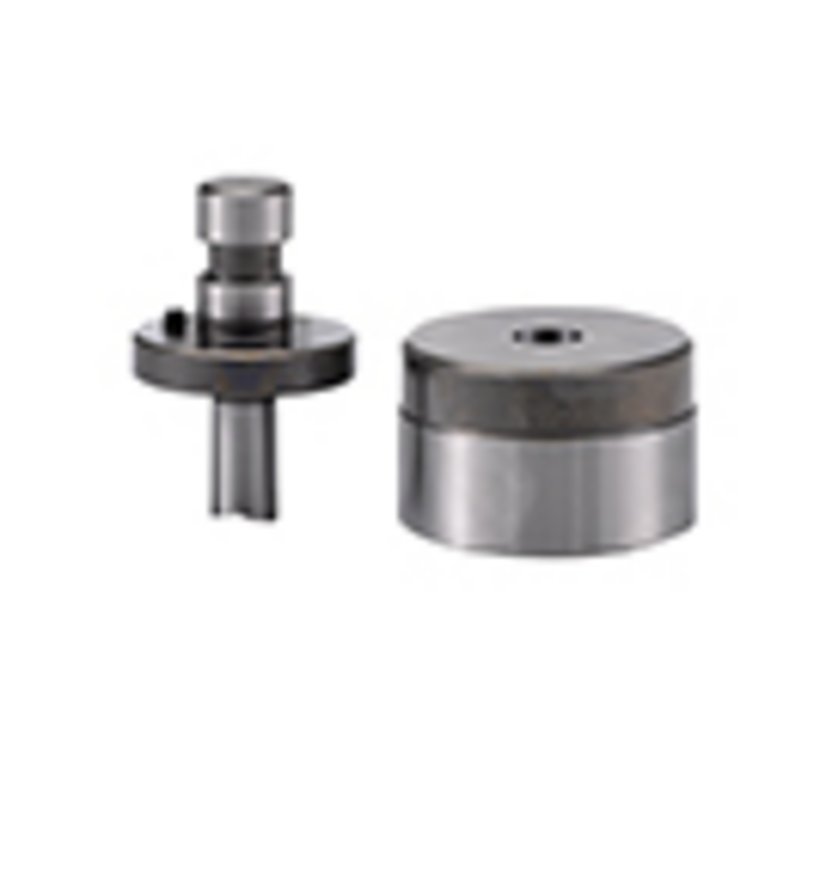

Round Punches with clamping pin, with 40 mm External Die Diameter
- Long lifetime
- Maximum productivity with minimum effort
Product description
For use in bow punches.
Low tool wear through optimum cutting geometry
With spring-loaded center pin for easy workpiece positioning
Quick, precise and burr-free punching
Technical Data
-
Order No.: 2680-0206-60-00
-
Max. sheet metal thickness: Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
-
PRODUKTFAMILIE: For workshop equipment
-
Clamping pin: ø 13 mm/0,51"
-
Type: for Quick-Press 300
-
Diameter of the die holder: 40 mm
-
Size: ø 6,6 mm
- 1 round punch, consisting of punch and die
2680-0900-06-00
Round Punch Rubber Wipers for Bow Punches
Product range
For workshop equipment
For punch size
6.6 mm
2680-0340-00-00
Die Holder for Quick-Press 300
Product range
For workshop equipment
Type
for dies with 40 mm external diameter
Clamping pin
ø 13 mm/0,51"
2662-7203-00-01
Manually Operated Hydraulic Quick-Press 300
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punch holder
ø 13 mm/0,51"
Processing depth
300 mm
2662-7205-00-01
Hydraulic Quick-Press 300
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punch holder
ø 13 mm/0,51"
Processing depth
300 mm
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punch holder
ø 13 mm/0,51"
Processing depth
300 mm
Assembly instructions:
