2662-0701-01-00

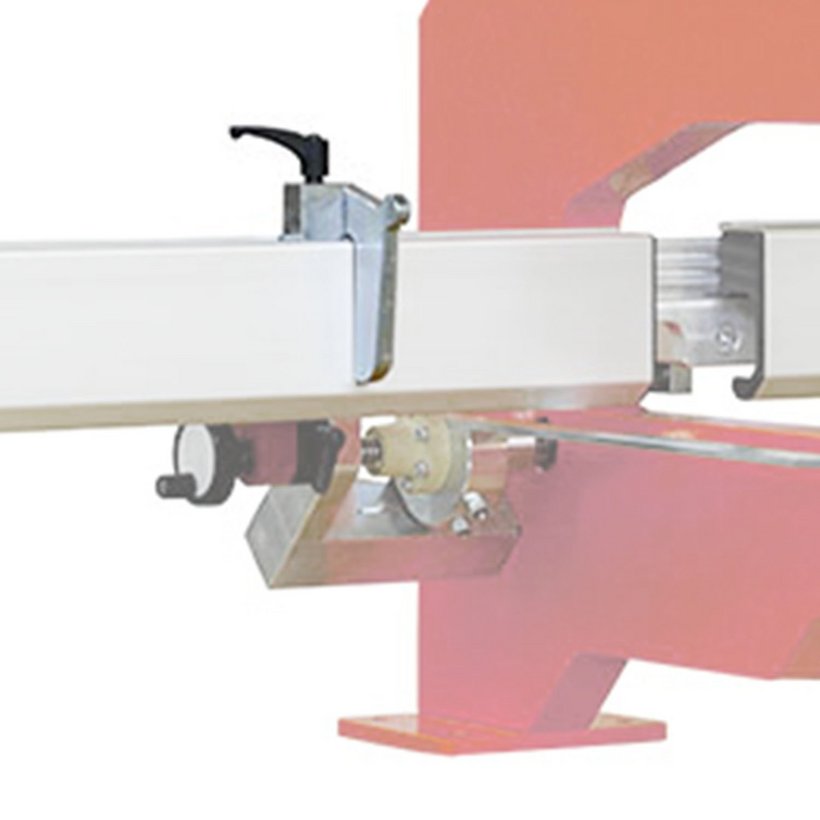

Tilt Stop for Quick-Press 300
Product description
Tilt stops can be mounted at the right and left side of the cylinder at a minimum distance of 40 mm / 1.57“.
Option: left and right version
Technical Data
-
Order No.: 2662-0701-01-00
-
PRODUKTFAMILIE: For workshop equipment
-
Type: left side of the cylinder
- 1 tilt stop with clamping lever
2662-0700-02-00
Length and Depth Stop for Quick-Press 300
Product range
For workshop equipment
Depth stop
Adjustable from 5 to 300 mm; 0.2" to 11.81"
Setting range
Adjustable from 38 to 500 mm; 1.5" to 19.69" on both sides of the cylinder
2662-7203-00-01
Manually Operated Hydraulic Quick-Press 300
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punch holder
ø 13 mm/0,51"
Processing depth
300 mm
2662-7205-00-01
Hydraulic Quick-Press 300
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punch holder
ø 13 mm/0,51"
Processing depth
300 mm
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punch holder
ø 13 mm/0,51"
Processing depth
300 mm
2662-0700-02-00
Length and Depth Stop for Quick-Press 300
Product range
For workshop equipment
Depth stop
Adjustable from 5 to 300 mm; 0.2" to 11.81"
Setting range
Adjustable from 38 to 500 mm; 1.5" to 19.69" on both sides of the cylinder
2662-7203-00-01
Manually Operated Hydraulic Quick-Press 300
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punch holder
ø 13 mm/0,51"
Processing depth
300 mm
2662-7205-00-01
Hydraulic Quick-Press 300
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punch holder
ø 13 mm/0,51"
Processing depth
300 mm
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punch holder
ø 13 mm/0,51"
Processing depth
300 mm
