2600-9500-00-02
Swivel Door Support for Bow Punch
- Easy handling
- Quick and easy attachment
Product description

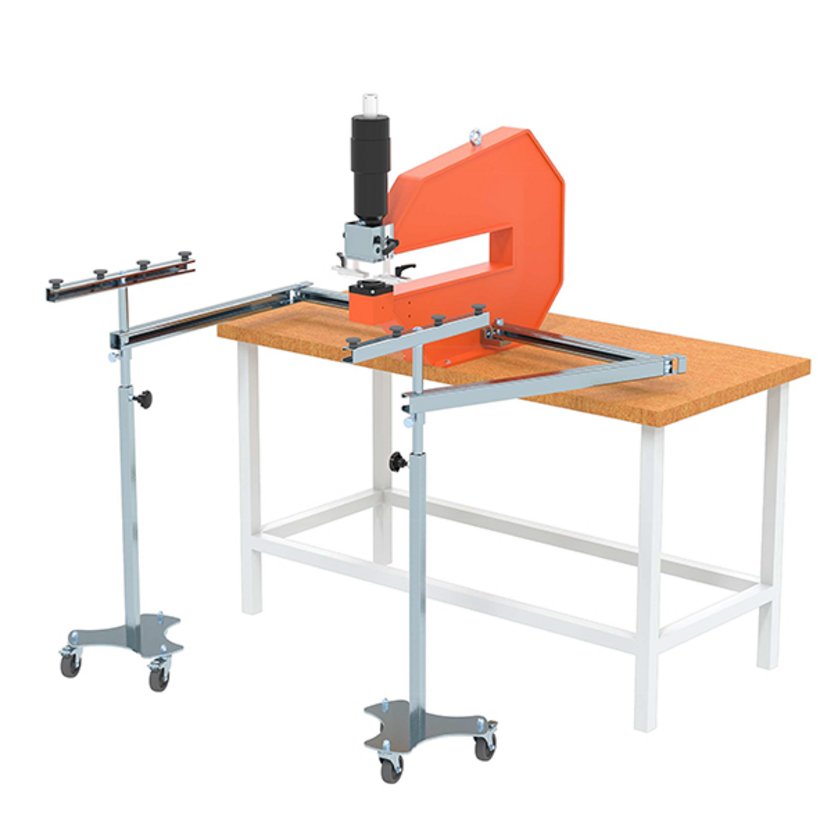

The door support is equipped with 2 height-adjustable mobile supports for supporting large and heavy workpieces. If the workpiece is moved evenly, the mobile supports travels along with the workpiece.
Processing of flanged sheets up to 35 mm.
Flexible mounting thanks to the universally designed mounting unit. Attachment either at the bow punch or at/on the working plate.
Space requirement for processing 0.8 m x 2 m workpieces: 3 m x 2 m (width x depth).
Technical data
-
Article number: 2600-9500-00-02
-
Product family: For workshop equipment
-
WERKSTUECKABMESSUNG: max. 800 x 2.000 mm/ 31.5" x 78.74"
-
WERKSTUECKGEWICHT: max. 45 kg; 99.2 lbs
-
PRODUKTGRUPPENNAMEEBENE6: Accessories for sheet metal processing
-
Weight: 20 kg
-
ARBEITSHOEHE: Continuously adjustable 1.000 – 1.200 mm / 39.37" - 47.24"
Notice
- Mount a suitable depth stop on the bow punch for a correct positioning of square, rectangular or shaped cut-outs in the workpiece - see häwa accessories for workshop equipment.
- 2 mobile supports with workpiece support, 2 hinged swivel arms, mounting unit, mounting hardware
2643-7105-00-00
Hydraulic Maxi-Press 500
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
2643-7106-00-00
Hydraulic Maxi-Press 500 with center point indicator
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
2662-7203-00-01
Manually Operated Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder Ø
13 mm
2662-7205-00-01
Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
2665-0000-10-00
Quick-Press 400
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2,5 mm; 13 ga / Stainless steel to 1,75 mm; 15 ga / Aluminum to 3 mm; 9 ga
Processing depth
400 mm
Punch holder (diameter)
20 mm
