Adapter for Quick-Press 300

2661-0314-00-00

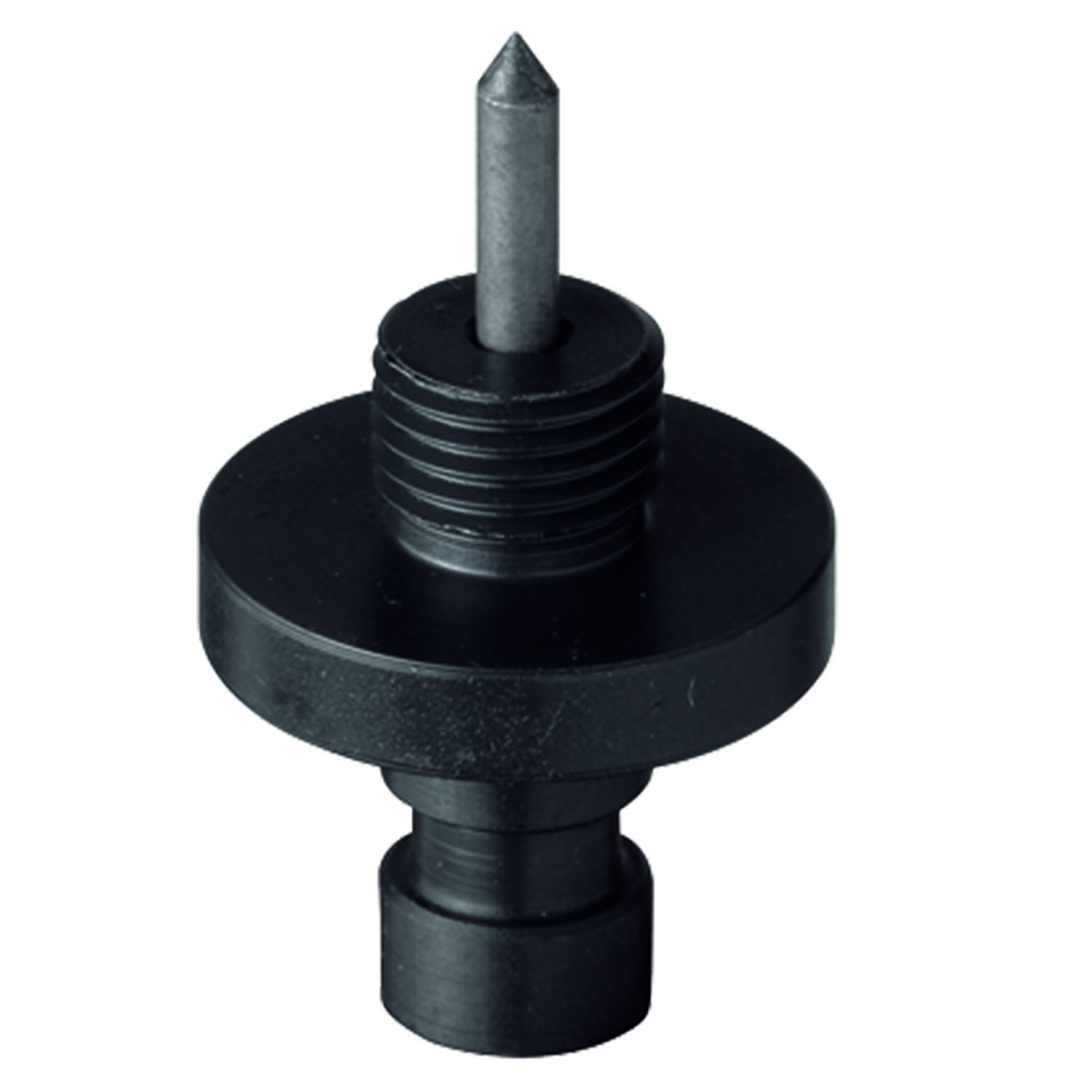

Adapter for Quick-Press 300

Product description

For holding round punches from ø 20.4 mm in bow punch Quick-Press 300

The adapter in the bow punch is aligned via a ø 13 mm clamping pin

Adapter with M14x1.5 thread to hold the punch

The adapter can either be inserted at the bottom of the bow punch or at the top of the hydraulic cylinder

With spring-loaded center pin for easy workpiece positioning

Technical data

  • Article number: 2661-0314-00-00
  • Product family: For workshop equipment
  • PRODUKTGRUPPENNAMEEBENE4: Accessories Punching Tools
  • PRODUKTGRUPPENNAMEEBENE5: Accessories for Bow Punches
  • PRODUKTGRUPPENNAMEEBENE6: Accessories Quick-Press 300
  • Clamping spigot: ø 13 mm/0,51"
  • Thread punch holder: M14x1,5

Notice

  • For laser operation, remove the center pin.
  • 1 adapter
Manually Operated Hydraulic Quick-Press 300
2662-7203-00-01
Manually Operated Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder Ø
13 mm
Hydraulic Quick-Press 300
2662-7205-00-01
Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
Hydraulic Quick-Press 300 with center point indicator
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
Manually Operated Hydraulic Quick-Press 300
2662-7203-00-01
Manually Operated Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder Ø
13 mm
Hydraulic Quick-Press 300
2662-7205-00-01
Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
Hydraulic Quick-Press 300 with center point indicator
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
