2661-0205-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
- Long lifetime
- Maximum productivity with minimum effort
Product description
Low tool wear through optimum cutting geometry
With spring-loaded center pin for easy workpiece positioning
Quick, precise and burr-free punching
Technical Data
-
Order No.: 2661-0205-00-00
-
Max. sheet metal thickness: Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
-
PRODUKTFAMILIE: For workshop equipment
-
Clamping pin: ø 13 mm/0,51"
-
Type: for all Quick and Maxi Presses
-
Diameter of the die holder: 1,97 inch
-
Size: ø 5 mm
Notice
- ATTENTION: If this hole punching tool is used with a Quick-Press 400 or a Maxi-Press (500 or 900), you will additionally need the "Reduction of the clamping pin 2642-0313-20-00".

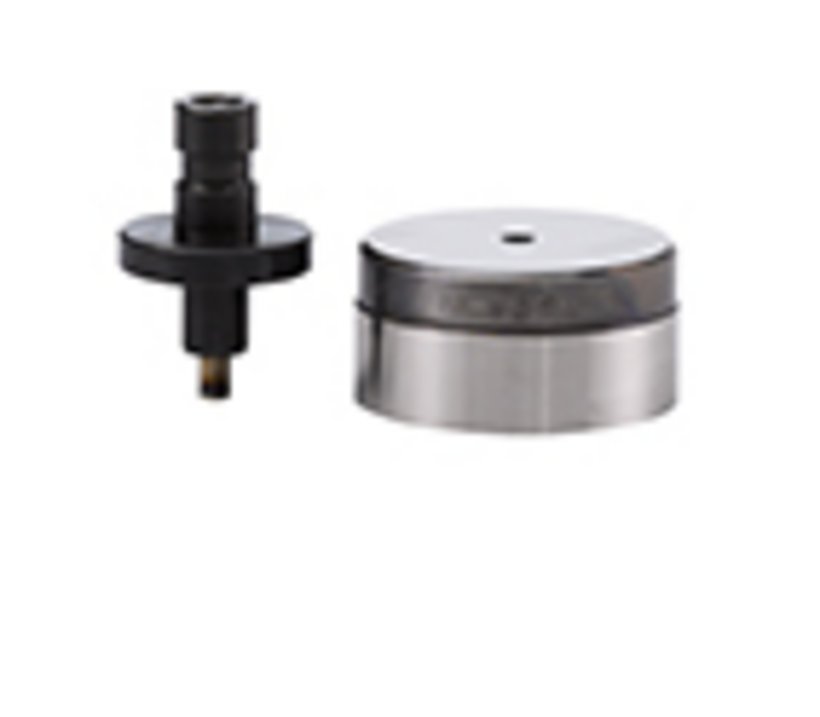

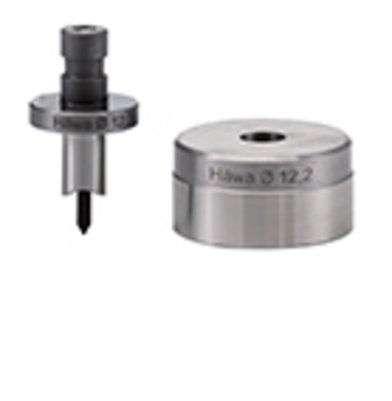

- 1 round punch, consisting of punch and die
2680-0900-10-50
Round Punch Rubber Wipers for Bow Punches
Product range
For workshop equipment
For punch size
10.5 mm
2680-0350-00-00
Die Holder for Quick-Press 300
Product range
For workshop equipment
Type
for dies with 50 mm external diameter
Clamping pin
ø 13 mm/0,51"
2665-0000-10-03
Die Holder ø 50 mm for Quick-Press 400
Product range
For workshop equipment
Type
for dies with 50 mm external diameter
Clamping pin
ø 20 mm/0,79"
2643-0250-72-00
Die Holder ø 50 mm for Maxi-Press 500
Product range
For workshop equipment
Outer diameter
72 mm/2,83"
Inner diameter
50 mm
2642-0313-20-00
Reduction Adapter Clamping Pin
Product range
For workshop equipment
Version
for Quick-Press 400 and for Maxi-Press 500
Outer diameter
20 mm/0,79"
Inner diameter
13 mm
2643-7106-00-00
Maxi-Press 500
Application
Punching of cut-outs
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Material thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Punch holder
ø 20 mm; 0.79“
Processing depth
500 mm
2662-7203-00-01
Manually Operated Hydraulic Quick-Press 300
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punch holder
ø 13 mm/0,51"
Processing depth
300 mm
2662-7205-00-01
Hydraulic Quick-Press 300
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punch holder
ø 13 mm/0,51"
Processing depth
300 mm
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Punch holder
ø 13 mm/0,51"
Processing depth
300 mm
2665-0000-10-00
Quick-Press 400
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2,5 mm; 13 ga / Stainless steel to 1,75 mm; 15 ga / Aluminum to 3 mm; 9 ga
Punch holder
ø 20 mm; 0.79“
Processing depth
400 mm
Assembly instructions:
