2680-0350-00-00

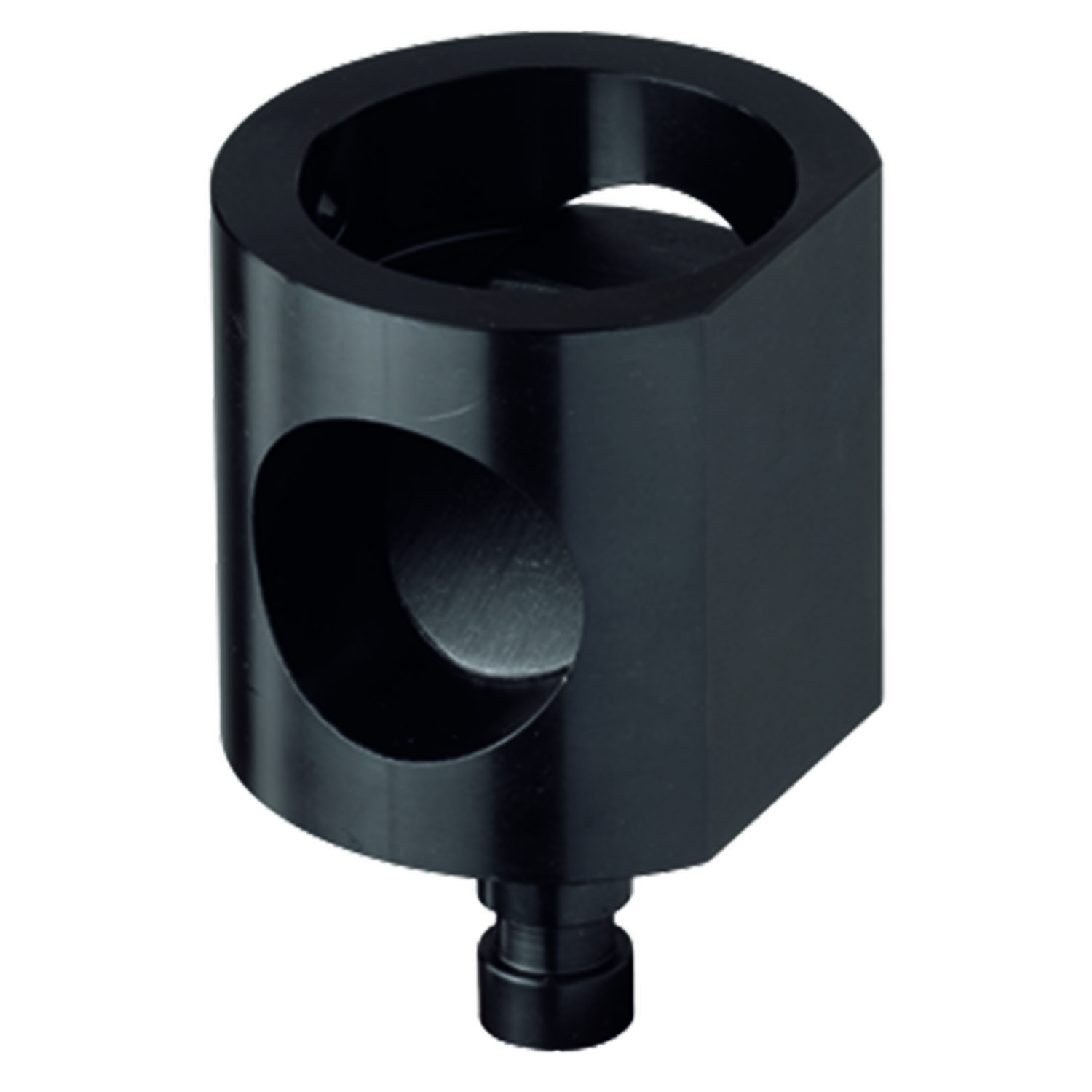

Die Holder for Quick-Press 300
Product description
For holding punching tool dies in bow punch Quick-Press 300
The die holder in the bow punch is aligned via a ø 13 mm clamping pin
The dies are fixed at the external diameter via a threaded pin
The die holder can either be inserted at the bottom of the bow punch or at the top of the hydraulic cylinder
Technical Data
-
Order No.: 2680-0350-00-00
-
PRODUKTFAMILIE: For workshop equipment
-
Clamping pin: ø 13 mm
-
Type: for dies with 50 mm external diameter
Notice
- Die holder for dies with 50 mm external diameter.
- Standard punching tools: round: from ø 6.6 to ø 63.5 mm / square up to 25.4 mm.
- Scraps up to ø 28.5 mm fall out of the die holder.
- 1 die holder with threaded pin
2661-0205-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 5 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Clamping pin
ø 13 mm
2661-0206-60-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 6,6 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Clamping pin
ø 13 mm
2661-0209-00-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 9 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Clamping pin
ø 13 mm
2661-0210-50-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 10,5 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Clamping pin
ø 13 mm
2661-0212-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 12,2 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Clamping pin
ø 13 mm
2661-0212-70-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 12,7 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Clamping pin
ø 13 mm
2661-0215-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 15,2 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Clamping pin
ø 13 mm
2661-0216-20-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 16,2 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Clamping pin
ø 13 mm
2661-0218-60-00
Round Punches with clamping pin, with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 18,6 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Clamping pin
ø 13 mm
2661-0220-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 20,2 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
2661-0220-40-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 20,4 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
2661-0221-30-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 21,3 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
2661-0222-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 22,5 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
2661-0224-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 24,5 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
2661-0225-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 25,2 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
2661-0228-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 28,5 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
2661-0230-50-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 30,5 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
2661-0232-20-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 32,2 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
2661-0237-00-00
Round Punches with 50 mm External Die Diameter
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 37 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
2661-0240-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 40,2 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
2661-0250-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 50,2 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
2661-0263-20-00
Round Punch with Stepped Die
Product range
For workshop equipment
Version
for all Quick and Maxi Presses
Size
ø 63,2 mm
Max. sheet metal thickness
Sheet steel 3 mm / Stainless steel 2 mm / Aluminum 3,5 mm - see note
2661-0422-20-00
Square Punch for Quick-Press 300
Product range
For workshop equipment
Size ø
22,2 x 22,2 mm
Clamping pin
ø 13 mm
Die - external diameter
50 mm
2661-0425-40-00
Square Punch for Quick-Press 300
Product range
For workshop equipment
Size ø
25,4 x 25,4 mm
Clamping pin
ø 13 mm
Die - external diameter
50 mm
2661-0922-52-01
Round Punch with Two Keyways for Quick-Press 300
Product range
For workshop equipment
Size
ø 22,5 mm
Max. sheet metal thickness
Sheet steel 2 mm / Stainless steel 1,5 mm / Aluminium 3 mm
Clamping pin
ø 13 mm
Die - external diameter
50 mm
2662-7203-00-01
Manually Operated Hydraulic Quick-Press 300
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm / square punches up to 25.4 mm / rectangular punches up to 36 mm diagonal
Material thickness
Sheet steel to 2 mm / Stainless steel to 1,5 mm / Aluminum to 3 mm
Punch holder
ø 13 mm
Processing depth
300 mm
2662-7205-00-01
Hydraulic Quick-Press 300
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm / square punches up to 25.4 mm / rectangular punches up to 36 mm diagonal
Material thickness
Sheet steel to 2 mm / Stainless steel to 1,5 mm / Aluminum to 3 mm
Punch holder
ø 13 mm
Processing depth
300 mm
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Application
Punching of cut-outs
Suitable for
round punches up to ø 40.5 mm / square punches up to 25.4 mm / rectangular punches up to 36 mm diagonal
Material thickness
Sheet steel to 2 mm / Stainless steel to 1,5 mm / Aluminum to 3 mm
Punch holder
ø 13 mm
Processing depth
300 mm
