2680-0340-00-00

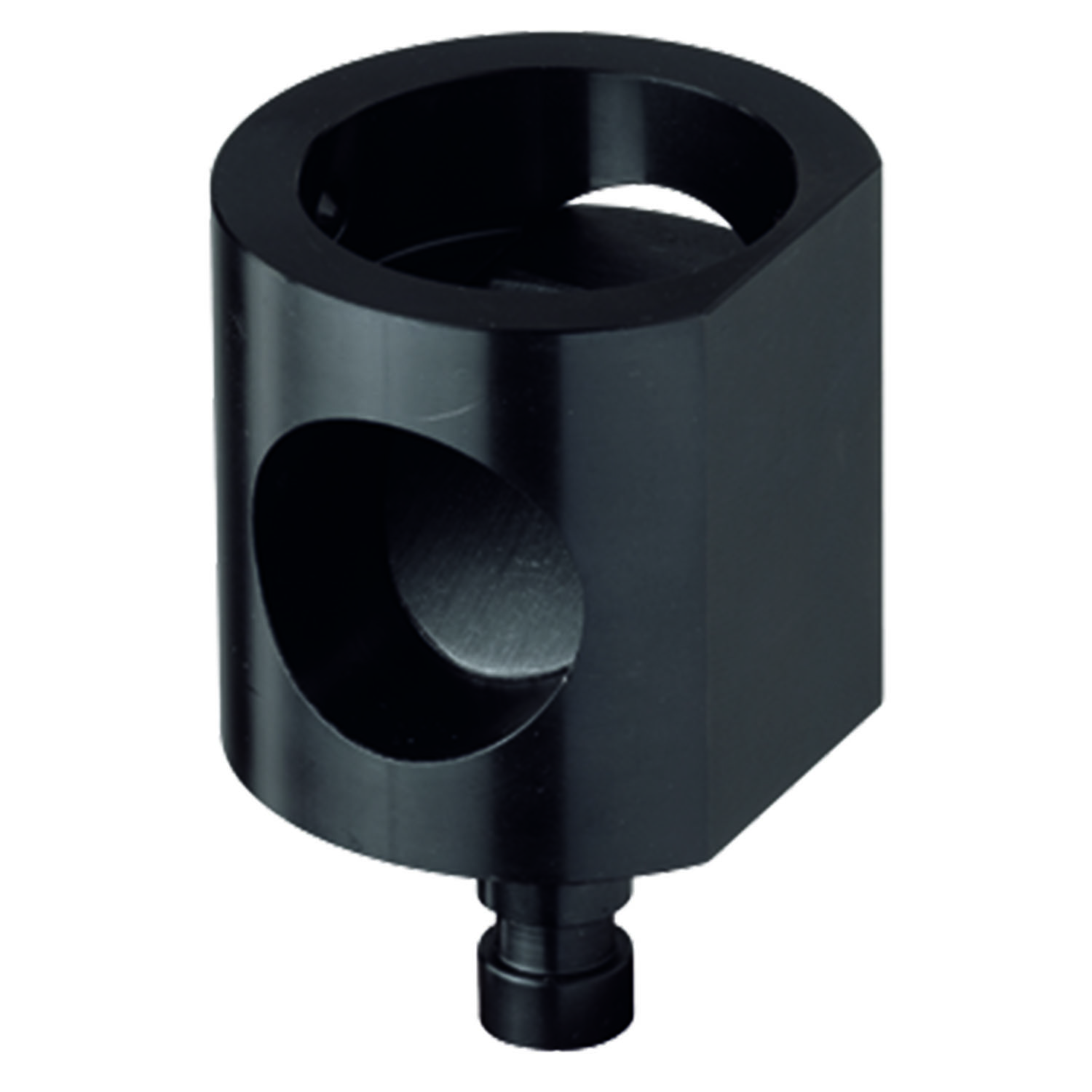

Die Holder ø 40 mm for Quick-Press 300
Product description
For holding punching tool dies in bow punch Quick-Press 300
The die holder in the bow punch is aligned via a ø 13 mm clamping pin
The dies are fixed at the external diameter via a threaded pin
The die holder can either be inserted at the bottom of the bow punch or at the top of the hydraulic cylinder
Technical Data
-
Order No.: 2680-0340-00-00
-
PRODUKTFAMILIE: For workshop equipment
-
Clamping pin: ø 13 mm/0,51"
-
Type: die with 40 mm external diameter
Notice
- Die holder for dies with 40 mm external diameter.
- Standard punching tools: round: from ø 6.6 to ø 22.5 mm.
- Scraps up to ø 22 mm fall out of the die holder.
- 1 die holder with threaded pin
2662-7203-00-01
Manually Operated Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder Ø
13 mm
2662-7205-00-01
Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
2680-0206-60-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
6.6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
2680-0209-00-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
9 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
2680-0212-20-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
12.2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
2680-0212-70-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
12.7 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
2680-0215-20-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
15.2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
2680-0216-20-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
16.2 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
2680-0218-60-00
Round Punches with clamping pin, with 40 mm External Die Diameter
Product range
For workshop equipment
Diameter dimensions
18.6 mm
Max. sheet metal thickness
Sheet steel 2 mm; 14 ga / Stainless steel 1,5 mm; 16 ga / Aluminium 3 mm; 9 ga
2680-0220-20-00
Round Punches with 40 mm External Die Diameter
Product range
For workshop equipment
Type
For Quick-Press 300
Diameter dimensions
20.2 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
40 mm
2680-0220-40-00
Round Punches with 40 mm External Die Diameter
Product range
For workshop equipment
Type
For Quick-Press 300
Diameter dimensions
20.4 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
40 mm
2680-0222-50-00
Round Punches with 40 mm External Die Diameter
Product range
For workshop equipment
Type
For Quick-Press 300
Diameter dimensions
22.5 mm
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
Die - external diameter
40 mm
