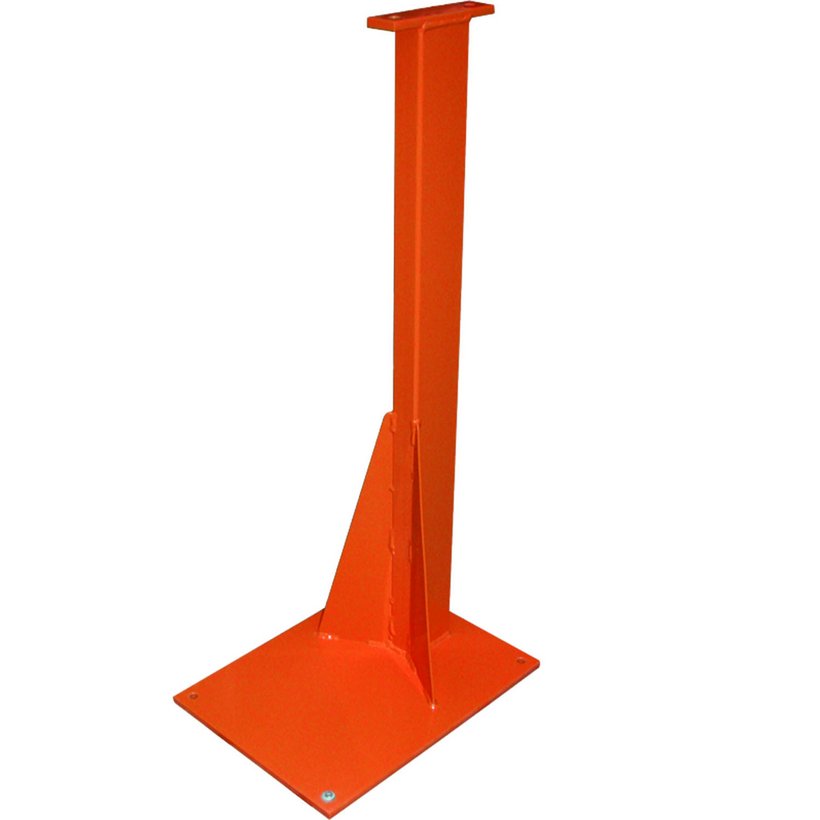

Pedestal for Quick-Press 300

2662-0800-01-00

Pedestal for Quick-Press 300

Product description

For Quick-Press 300 installation

The pedestal is existing of a 300 x 400 mm / 11.81 x 15.75“ base plate with drillings for the attachment on the floor

The working height of the installed Quick-Press 300 is 1050 mm / 41.34“

Technical data

  • Article number: 2662-0800-01-00
  • Product family: For workshop equipment
  • PRODUKTGRUPPENNAMEEBENE6: Accessories Quick-Press 300
  • Mounting height of punching bracket: 850 mm

Notice

  • Must be mounted at the bottom.
  • 1 pedestal
Manually Operated Hydraulic Quick-Press 300
2662-7203-00-01
Manually Operated Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder Ø
13 mm
Hydraulic Quick-Press 300
2662-7205-00-01
Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
Hydraulic Quick-Press 300 with center point indicator
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
