2661-0240-20-00

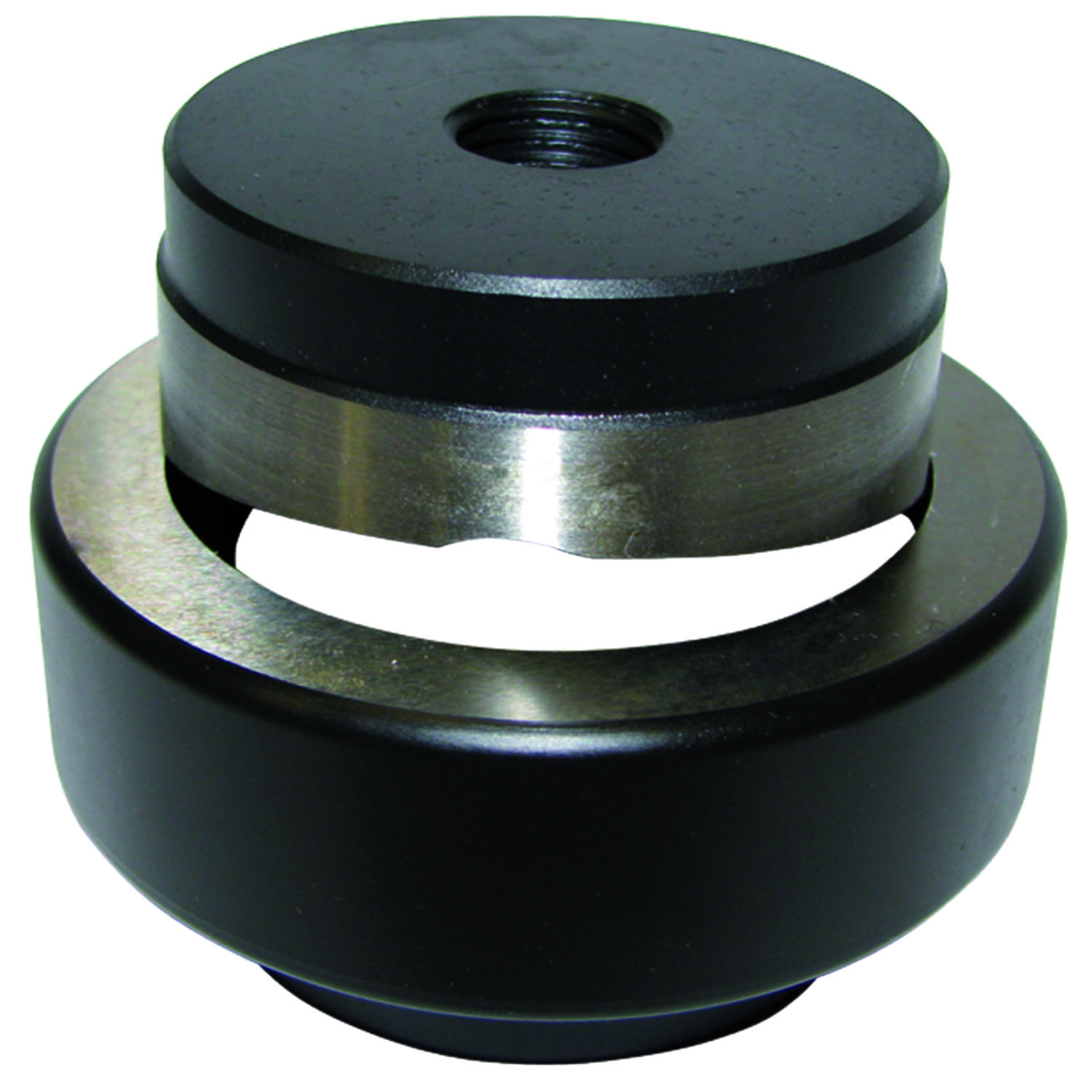

Round Punch with Stepped Die
- Long lifetime
- Maximum productivity with minimum effort
Product description
For the use in bow punches
Low tool wear through optimum cutting geometry
Quick, precise and burr-free punching
Technical data
-
Article number: 2661-0240-20-00
-
Max. Sheet thickness: Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 3,5 mm; 9 ga - see note
-
Product family: For workshop equipment
-
PRODUKTGRUPPENNAMEEBENE6: Round punches (workshop equipment)
-
Die mounting diameter: 50 mm, step die
-
Size ø: 40.2 mm
-
Metric: 40
Notice
- CAUTION: Please use the smaller value specified in the data sheets of the bow punch and the punching tool as maximum possible sheet metal thickness.
- Please check if you already have the matching die holder (ø 50 mm) in stock before ordering this punch.
- You will find additional information on the product under "Downloads".
- 1 round punch, consisting of punch and die
2680-0900-40-20
Round Punch Rubber Wipers for Bow Punches
Product range
For workshop equipment
For punch size
40.2 mm
2680-0350-00-00
Die Holder ø 50 mm for Quick-Press 300
Product range
For workshop equipment
Clamping pin
ø 13 mm/0,51"
Type
die with 50 mm external diameter
2665-0000-10-03
Die Holder ø 50 mm for Quick-Press 400
Product range
For workshop equipment
Clamping pin
ø 20 mm/0,79"
2643-0250-72-00
Die Holder ø 50 mm for Maxi-Press 500
Product range
For workshop equipment
Inner diameter
50 mm
Outer diameter
72 mm
2643-7105-00-00
Hydraulic Maxi-Press 500
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
2643-7106-00-00
Hydraulic Maxi-Press 500 with center point indicator
Suitable for
round punches up to ø 63.5 mm; 2.5" / square punches up to 46 mm; 1.81" / rectangular punches up to 60 mm; 2.36" diagonal
Max. sheet metal thickness
Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Processing depth
500 mm
Punch holder (diameter)
20 mm
2662-7203-00-01
Manually Operated Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Material thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder Ø
13 mm
2662-7205-00-01
Hydraulic Quick-Press 300
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
2662-7206-00-01
Hydraulic Quick-Press 300 with center point indicator
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2 mm; 14 ga / Stainless steel to 1,5 mm; 16 ga / Aluminum to 3 mm; 9 ga
Processing depth
300 mm
Punch holder (diameter)
13 mm
2665-0000-10-00
Quick-Press 400
Suitable for
round punches up to ø 40.5 mm; 1,59" / square punches up to 25.4 mm; 1" / rectangular punches up to 36 mm; 1.42" diagonal
Max. sheet metal thickness
Sheet steel to 2,5 mm; 13 ga / Stainless steel to 1,75 mm; 15 ga / Aluminum to 3 mm; 9 ga
Processing depth
400 mm
Punch holder (diameter)
20 mm
Mounting instructions:
