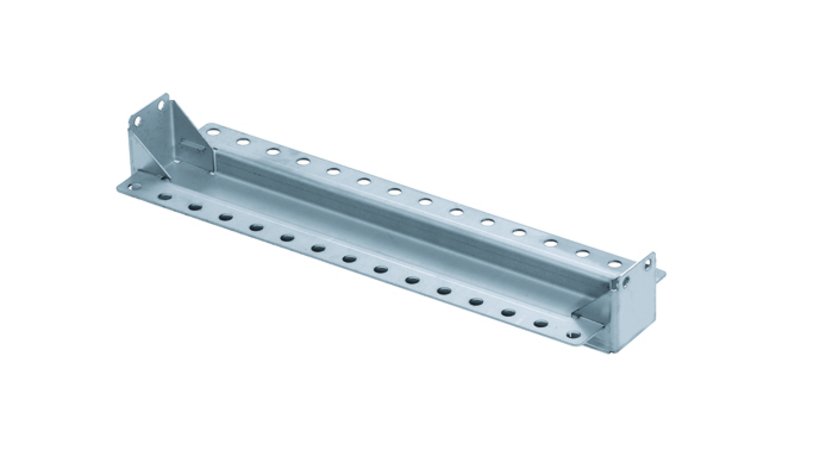

Lateral base rail type 0376
Lateral base rail type 0376

0376-0000-50-01

Lateral base rail type 0376

  • Additional reinforcement for multiple base systems.
  • Formation of assembly layers in bases.

Product description

Lateral rail for top/bottom assembly in 200 mm high bases

Technical Data

  • Order No.: 0376-0000-50-01
  • Dimension: Suitable for depth : 500 mm
  • Type: X x X x 500 mm
  • Surface: Externally brushed
  • Material: Stainless steel no. 1.4301
  • Size: Length : 290 mm
  • Suitable for console type: for H375
  • Sheet thickness: 2 mm

Notice

  • 1 set (2 pc.) lateral rail without mounting hardware
