0396-0016-12-00

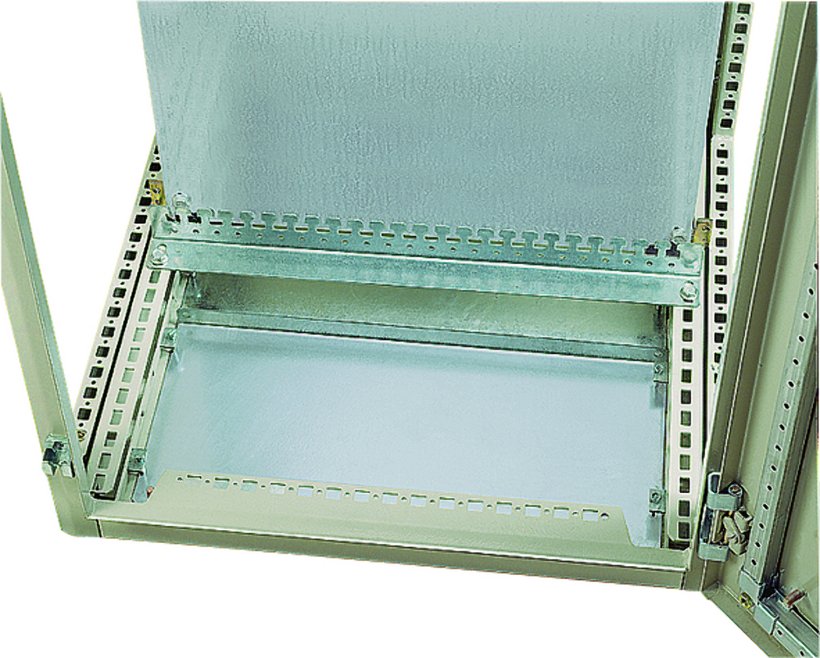

EMI/RFI- shield rail
Product description
For grounding shielded cables.
Technical Data
-
Order No.: 0396-0016-12-00
-
Dimension: Suitabel for width : 1200 mm
-
Surface: Galvanized
-
Material: Sheet steel
-
Size: Length : 1113 mm
-
Weight: 1.9 kg
-
Sheet thickness: 3 mm
- 1 EMI/RFI-shielded rail without mounting hardware
