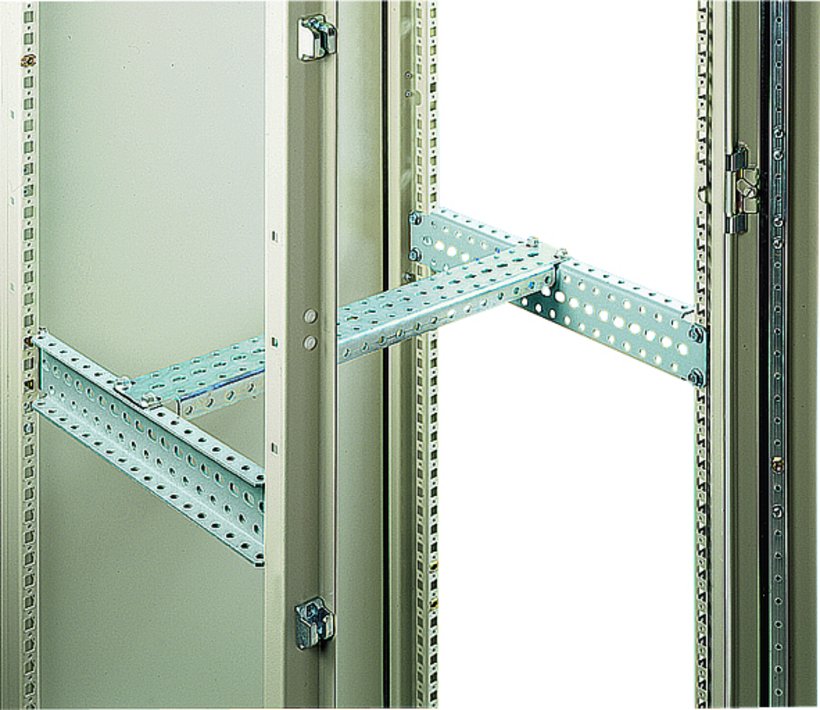

Mounting rail (Q)

0396-0005-12-00

Mounting rail (Q)

Technical Data

  • Order No.: 0396-0005-12-00
  • Dimension: Suitabel for width : 1200 mm
  • Surface: Galvanized
  • Material: Sheet steel
  • Hole size A: 1175 mm
  • Weight: 3.9 kg
  • Sheet thickness: 4 mm

Notice

  • Support rail (T) is not required for direct mounting on the cabinet frame.
  • 1 support rail (Q) without mounting hardware
