19"-Zinc plated element rails

0348-7018-38-73

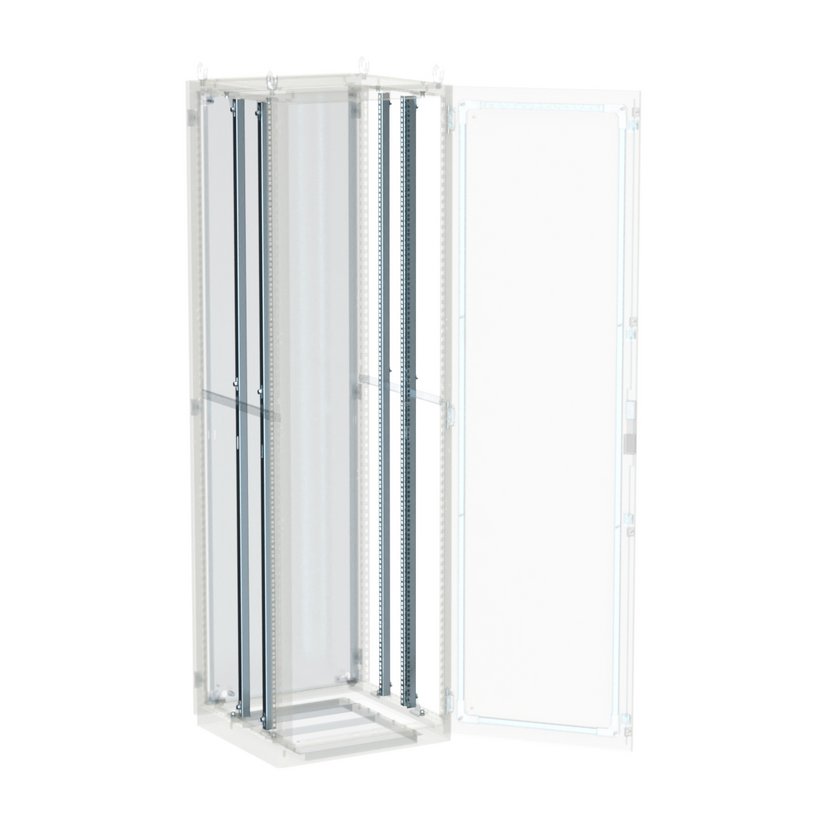

19"-Zinc plated element rails

  • For the installation of 19“ components

Product description

Protective ground connection according to DIN EN 61439-1.

19"-rails are used for the installation of sub-racks to DIN 41494 and EIA standards in 23.62" wide cabinets.

19"-rails are adjustable over the depht of the cabinet and may be positioned per the "A" dimension of slide rails.

Technical data

  • Article number: 0348-7018-38-73
  • Dimensions: Height : 1690.5 mm  suitable for height : 1800 mm
  • Surface: Galvanized and blue passivated
  • Installation height: HE/U38
  • Material: Sheet steel
  • Mounting dimension (x): 1628.5 mm
  • Sheet thickness: 1.5 mm

Notice

  • For assembly inside the cabinet you require an attachment bracket set (final order no. -63 includes 4 pcs. and final order nos. -73 and -93 include 8 pcs. each).
  • Item 1: 1 set = 2 rails with mounting hardware
  • Item 2: 1 set = 2 rails, 2 U rails with mounting hardware
  • Item 3: 1 set = 4 U rails with mounting hardware
