0348-1218-00-13

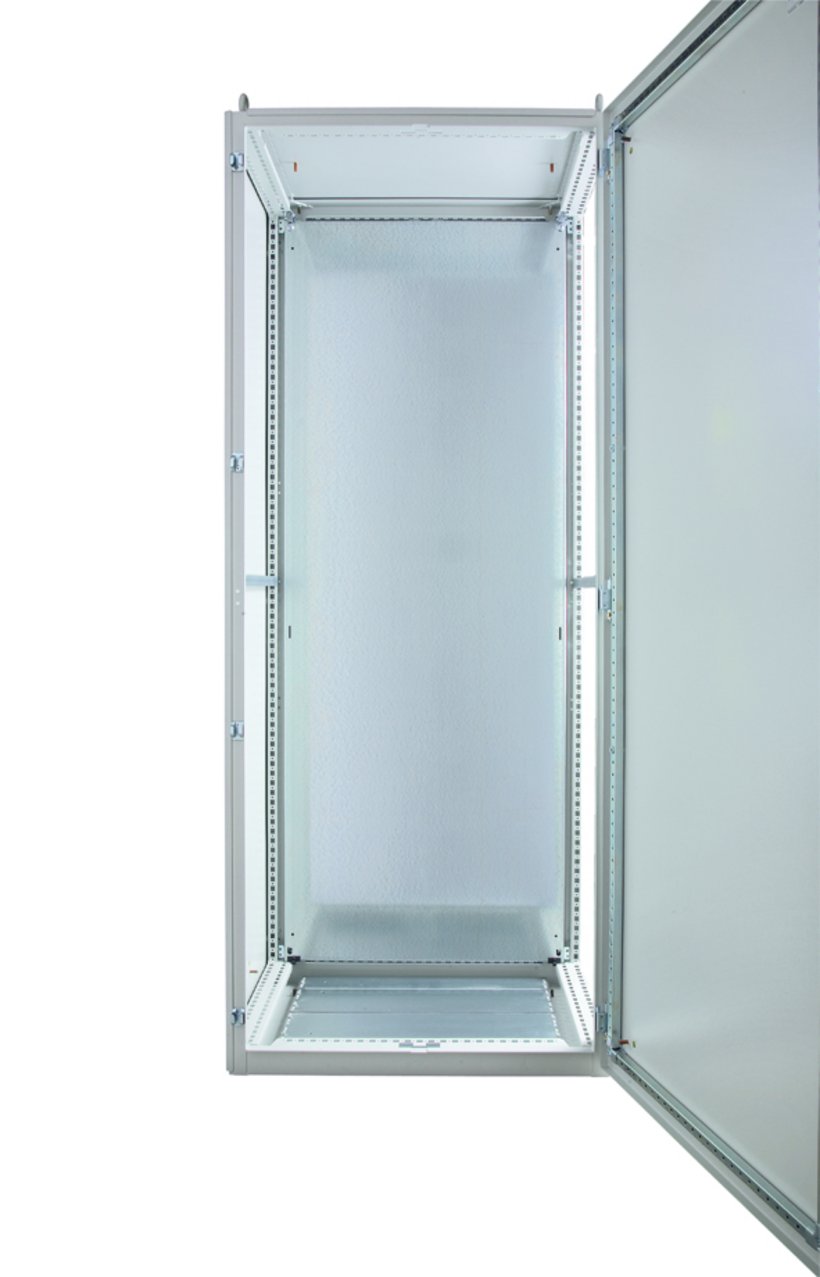

Mounting plate
- Depth adjustable
- häwa "click"
- C-edge
Product description
Safe and quick fixing by means of häwa "click" locking device!
Mounting plate up to cabinet width 1200 mm with C-edge. For cabinet width 1600/2000 mm, the mounting plate is reinforced with U-sections.
Protective ground connection according to DIN EN 61439-1 with ground screw.
Technical Data
-
Order No.: 0348-1218-00-13
-
Dimension: Width : 1116 mm Height : 1680 mm Suitabel for width : 1200 mm Suitable for height : 1800 mm
-
Surface: Galvanized
-
Material: Sheet steel
-
Weight: 47.7 kg
-
Protective ground connection: according to DIN EN 61439-1
-
Sheet thickness: Moungting panel: 3 mm
Notice
- The mounting instructions are included in all operation manuals of H3X5 and H3X0 cabinets.
- Mounting plate complete with hardware and ground connector screw. When transporting or operating in harsh environments (vibrations, shock), fix the mounting plate at the lower locking bracket with M8x16 serrated locking screws.
- Mounting plate complete with mounting bracket set type 3080-7111-91-06 and grounding stud.
0370-1218-40-00
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0370-1218-40-10
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0370-1218-50-00
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0370-1218-50-10
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0370-1218-60-00
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0370-1218-60-10
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-1218-40-07
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-1218-40-17
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-1218-50-07
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-1218-50-17
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-1218-60-07
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-1218-60-17
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0375-1218-40-00
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0375-1218-40-10
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0375-1218-50-00
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0375-1218-50-10
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0375-1218-60-00
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0375-1218-60-10
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-1218-40-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-1218-40-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-1218-50-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-1218-50-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-1218-60-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-1218-60-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0450-1218-40-00
Sanitary IP69K Cabinet H450 Depth-400 mm
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
0450-1218-40-10
Sanitary IP69K Cabinet H450 Depth-400 mm
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
0450-1218-50-00
Sanitary IP69K Cabinet H450 Depth 500 mm
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
0450-1218-50-10
Sanitary IP69K Cabinet H450 Depth 500 mm
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
