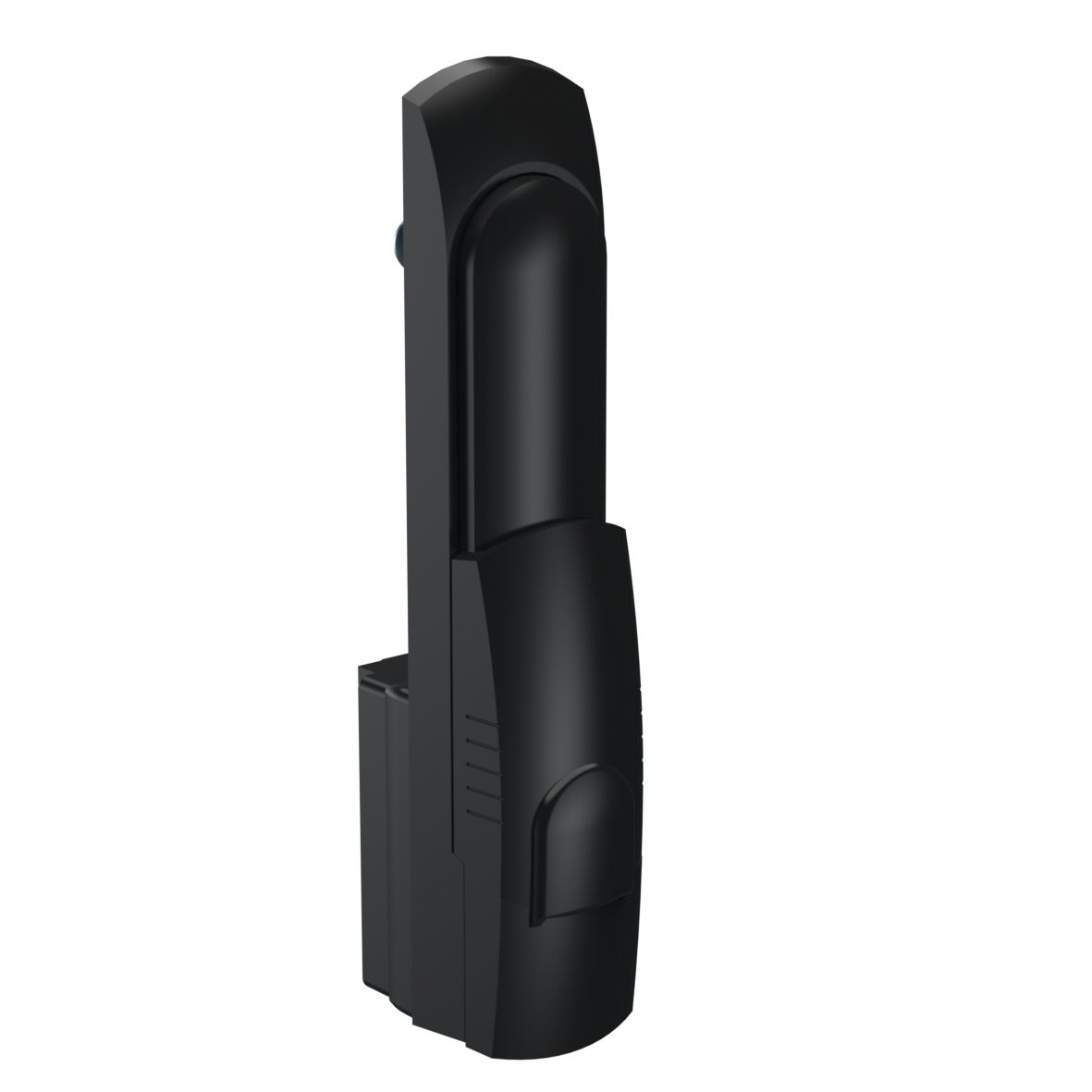

Pivot lever with sliding barrel cover

3070-0904-50-00

Pivot lever with sliding barrel cover

  • Square mounting holes
  • For bar locks
  • With sliding barrel cover
  • Max. type rating IP65

Product description

Pivot lever for cabinet doors, can be mounted at right or left side.

The type rating is dependent on the mounting position, max. possible type rating IP65.

Prepared for mounting of an elongated barrel to DIN 18252, length = 40 mm /1.57”, up to 5 mm / 0.19” protruding barrel head with 45° or 90° latch lock position.

The lockable lever is countersunk in closed position. To unlock, swing the lever upwards.

Technical data

  • Article number: 3070-0904-50-00
  • PRODUKTGRUPPENNAMEEBENE4: Universal accessories / Accessories control cabinets inside
  • PRODUKTGRUPPENNAMEEBENE5: Closure systems/Handles
  • Version: Square mounting hole
    With hole spacing 100 mm/39.37“
    Pan with attachment cap
  • TUERBLECHSTAERKE_DICT: 1,5 - 2,5 mm/0,06" - 0,1"
  • Protection class: IP65
  • Closing: Prepared for elongated barrel, dummy plugs, see accessories
  • Material: Pivot lever black PA
    Galvanized sheet steel mounting hardware

Notice

  • The pivot lever replaces the key plate mounted in standard free-standing and modular cabinets.
  • 1 pivot lever with mounting hardware and IP65 version with seals and attachment cap.
