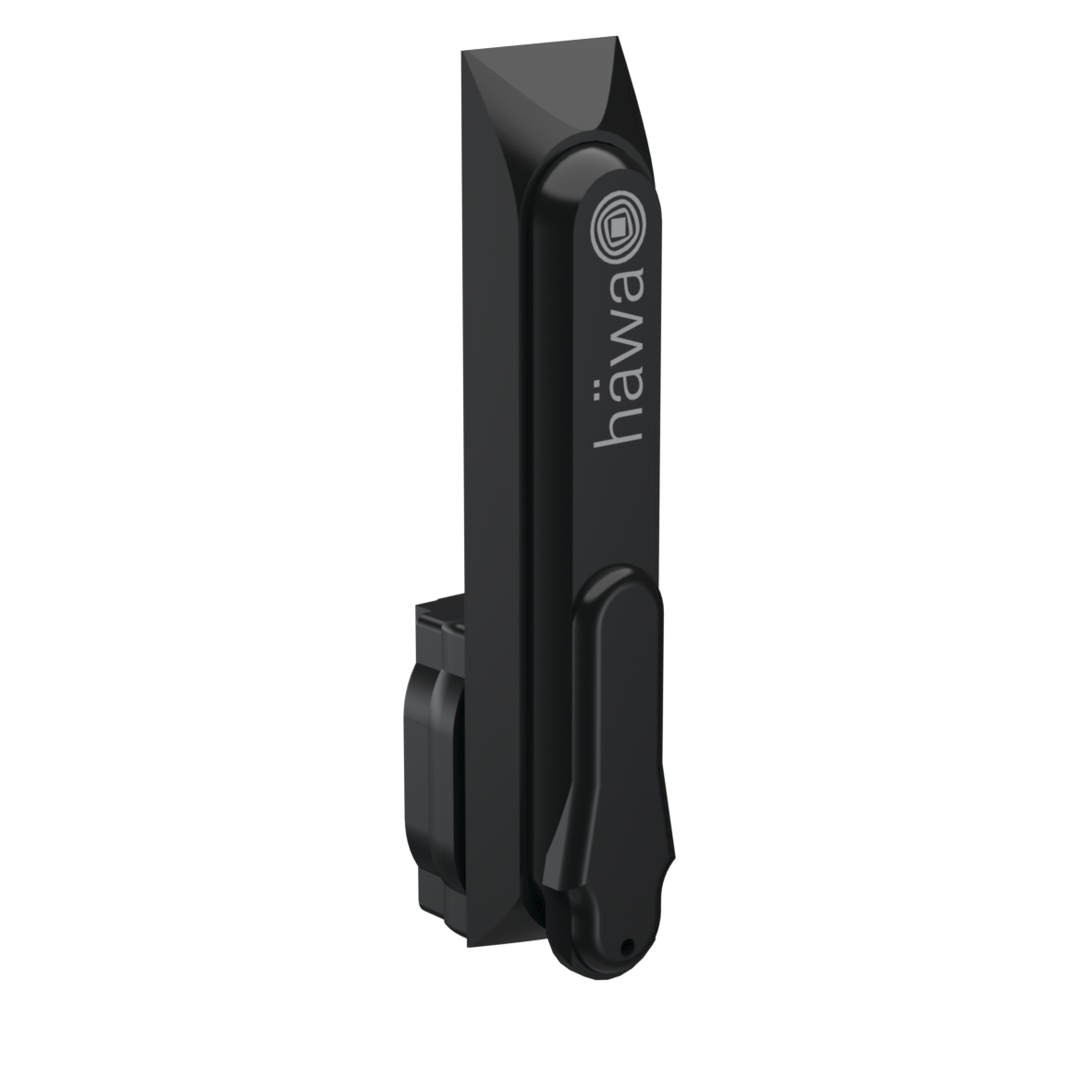

Pivot lever can be sealed with leads
Pivot lever can be sealed with leads

3070-0907-92-01

Pivot lever can be sealed with leads

  • Square mounting holes
  • For bar locks
  • With barrel cover which can be sealed with leads
  • Max. type rating IP65

Product description

Pivot lever for cabinet doors, can be mounted at right or left side.

The type rating is dependent on the mounting position, max. possible type rating IP65.

Prepared for mounting of an elongated barrel to DIN 18252, length = 40 mm.

The lockable lever is countersunk in closed position. To unlock, swing the lever upwards.

Technical Data

  • Order No.: 3070-0907-92-01
  • Type: Square mounting hole
    With hole spacing 100 mm
    Pan with attachment cap
  • For door panel thickness: 1,5 - 2,5 mm
  • Type: with häwa logo
  • Protection type: IP65
  • Lock: Prepared for elongated barrel, dummy plugs, see accessories
  • Material: Pivot lever black PA
    Galvanized sheet steel mounting hardware

Notice

  • The pivot lever replaces the key plate mounted in standard free-standing and modular cabinets.
  • 1 pivot lever with mounting hardware and IP65 version with seals and attachment cap.
Free-Standing cabinets Stainless Steel H370, double door
0370-1118-40-00
Free-Standing cabinets Stainless Steel H370, double door
Width
1000 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1118-40-10
Free-Standing cabinets Stainless Steel H370, double door
Width
1000 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1120-40-00
Free-Standing cabinets Stainless Steel H370, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1120-40-10
Free-Standing cabinets Stainless Steel H370, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1210-40-00
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1210-40-10
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1212-40-00
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1212-40-10
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1214-40-00
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1214-40-10
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1218-40-00
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1218-40-10
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1218-50-00
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1218-50-10
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1218-60-00
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1218-60-10
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1220-40-00
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1220-40-10
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1220-50-00
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1220-50-10
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1220-60-00
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
0370-1220-60-10
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1210-40-07
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1210-40-17
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1212-40-07
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1212-40-17
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1214-40-07
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1214-40-17
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1216-40-07
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1216-40-17
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1218-40-07
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1218-40-17
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1218-50-07
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1218-50-17
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1218-60-07
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1218-60-17
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1220-40-07
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1220-40-17
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1220-50-07
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1220-50-17
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1220-60-07
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
0390-1220-60-17
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1116-40-00
Modular cabinets Stainless steel H375, double door
Width
1000 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1116-40-10
Modular cabinets Stainless steel H375, double door
Width
1000 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1118-40-00
Modular cabinets Stainless steel H375, double door
Width
1000 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1118-40-10
Modular cabinets Stainless steel H375, double door
Width
1000 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1120-40-00
Modular cabinets Stainless steel H375, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1120-40-10
Modular cabinets Stainless steel H375, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1210-40-00
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1210-40-10
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1212-40-00
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1212-40-10
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1214-40-00
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1214-40-10
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1218-40-00
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1218-40-10
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1218-50-00
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1218-50-10
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1218-60-00
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1218-60-10
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1220-40-00
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1220-40-10
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1220-50-00
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1220-50-10
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1220-60-00
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
0375-1220-60-10
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-0120-40-07
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-0120-40-17
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1110-40-07
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1110-40-17
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1112-40-07
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1112-40-17
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1114-40-07
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1114-40-17
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1118-40-07
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1118-40-17
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1118-50-07
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1118-50-17
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1118-60-07
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1118-60-17
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1120-40-07
Modular cabinets Sheet steel H395, double door
Width
1100 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1120-50-07
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1120-50-17
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2000 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1120-60-07
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1120-60-17
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1122-60-07
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2200 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1122-60-17
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2200 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1210-40-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1210-40-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1212-40-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1212-40-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1214-40-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1214-40-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1216-40-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1216-40-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1216-60-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1600 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1216-60-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1600 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1218-40-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1218-40-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1218-50-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1218-50-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1218-60-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1218-60-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1220-40-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1220-40-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1220-50-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1220-50-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1220-60-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1220-60-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1222-60-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2200 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-1222-60-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2200 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-8218-50-07
Modular cabinets Sheet steel H395, double door
Width
800 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-8218-50-17
Modular cabinets Sheet steel H395, double door
Width
800 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-8220-50-07
Modular cabinets Sheet steel H395, double door
Width
800 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
0395-8220-50-17
Modular cabinets Sheet steel H395, double door
Width
800 mm
Height
2000 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28965_16208
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28965_16210
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28965_1814
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28965_1815
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28965_1816
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28965_1817
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28965_6794
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28965_6795
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28965_6796
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28965_6797
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28965_6798
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28965_6799
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28978_1838
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28978_1839
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28978_1840
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28978_1841
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28983_1854
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28983_1855
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28983_1856
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Sheet steel H390, double door
R:28983_1857
Free-Standing cabinets Sheet steel H390, double door
Width
1200 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:28988_1966
Free-Standing cabinets Stainless Steel H370, double door
Width
1000 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:28988_1967
Free-Standing cabinets Stainless Steel H370, double door
Width
1000 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:28988_1968
Free-Standing cabinets Stainless Steel H370, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:28988_1969
Free-Standing cabinets Stainless Steel H370, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:28988_1970
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:28988_1971
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:28988_1972
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:28988_1973
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:28988_6864
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:28988_6865
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:28988_6866
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:28988_6867
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:28988_6868
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:28988_6869
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:29003_1988
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:29003_1989
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:29003_1990
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:29003_1991
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:29008_2000
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:29008_2001
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:29008_2002
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Free-Standing cabinets Stainless Steel H370, double door
R:29008_2003
Free-Standing cabinets Stainless Steel H370, double door
Width
1200 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_16700
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_16701
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_16702
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_16703
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_16704
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_16705
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_16706
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_16707
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_16708
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_16709
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_17977
Modular cabinets Sheet steel H395, double door
Width
1100 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_1874
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_1875
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_1876
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_1877
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_1878
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_1879
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_6818
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_6819
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_6820
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_6821
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_6822
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29168_6823
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29192_16710
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29192_16711
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29192_16712
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2000 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29192_16713
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29192_1886
Modular cabinets Sheet steel H395, double door
Width
800 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29192_1887
Modular cabinets Sheet steel H395, double door
Width
800 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29192_1890
Modular cabinets Sheet steel H395, double door
Width
800 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29192_1891
Modular cabinets Sheet steel H395, double door
Width
800 mm
Height
2000 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29192_1896
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29192_1897
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29192_1898
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29192_1899
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29205_16696
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1600 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29205_16697
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1600 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29205_16714
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29205_16715
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29205_16716
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29205_16717
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29205_16718
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2200 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29205_16719
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
2200 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29205_1922
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29205_1923
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29205_1924
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29205_1925
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29205_1926
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2200 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Sheet steel H395, double door
R:29205_1927
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
2200 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29220_2014
Modular cabinets Stainless steel H375, double door
Width
1000 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29220_2015
Modular cabinets Stainless steel H375, double door
Width
1000 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29220_2018
Modular cabinets Stainless steel H375, double door
Width
1000 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29220_2019
Modular cabinets Stainless steel H375, double door
Width
1000 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29220_2022
Modular cabinets Stainless steel H375, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29220_2023
Modular cabinets Stainless steel H375, double door
Width
1000 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29220_2024
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29220_2025
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29220_2026
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29220_2027
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
2000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29220_6888
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29220_6889
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1000 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29220_6890
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29220_6891
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1200 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29220_6892
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1400 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29220_6893
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1400 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29237_2034
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29237_2035
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29237_2036
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29237_2037
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
2000 mm
Depth
500 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29242_2054
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29242_2055
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29242_2056
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
Modular cabinets Stainless steel H375, double door
R:29242_2057
Modular cabinets Stainless steel H375, double door
Width
1200 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Approval
cULus
further information
We need your consent
This content is provided by WSCAD GmbH. If you activate the content, personal data may be processed and cookies may be set.
Save as PDF Save as PDF Direct enquiry
Pivot lever can be sealed with leads
Pivot lever can be sealed with leads
Pivot lever for cabinet doors, can be mounted at right or left side.
The type rating is dependent on the mounting position, max. possible type rating IP65.
Prepared for mounting of an elongated barrel to DIN 18252, length = 40 mm.
The lockable lever is countersunk in closed position. To unlock, swing the lever upwards.
notice
3070-0907-92-02
Square mounting hole
With hole spacing 100 mm
Pan with attachment cap
IP65
3070-0907-95-01
Square mounting hole
With hole spacing 100 mm
Pan with hooks
IP40
with häwa logo
3070-0907-95-02
Square mounting hole
With hole spacing 100 mm
Pan with hooks
IP40
Contact for products
Find your personal point of contact
We are happy to help you.

The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.

Choose your advisor now

PM-Leitung: Herr Eglof. PM-Leitung: Herr Eglof.
Share this page
