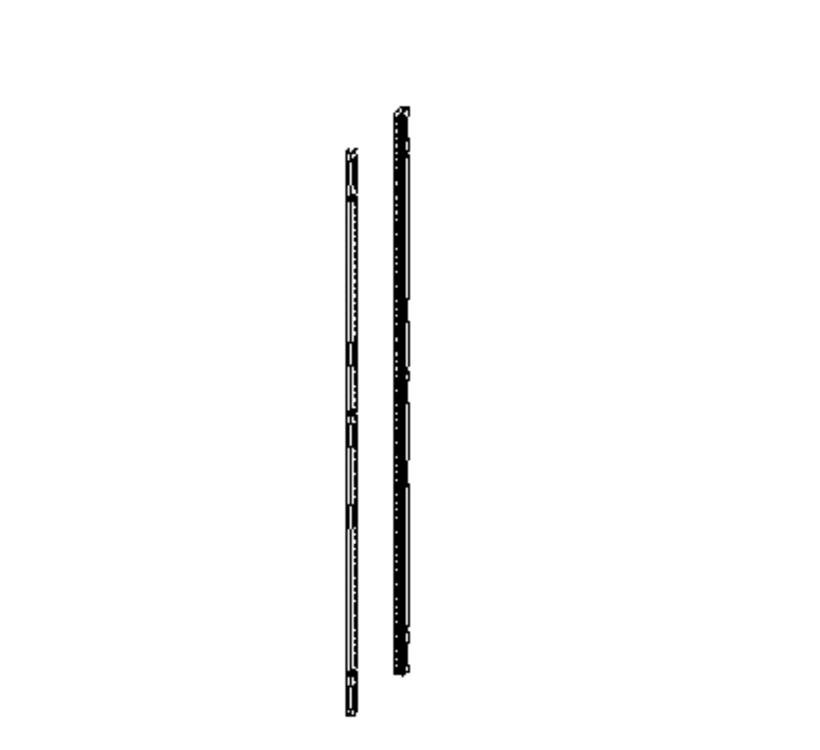

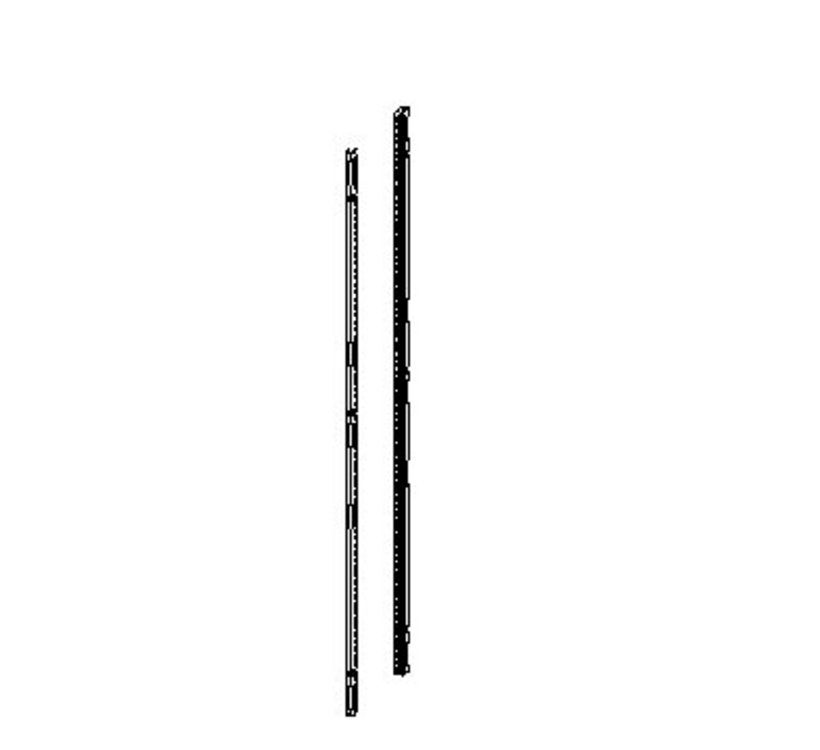

Vertical mounting rail
Vertical mounting rail

0391-9018-00-03

Vertical mounting rail

  • Increases flexibility of the H370/H390 free-standing cabinets
  • Use of all cabinet accessories possible

Product description

With M8 thread grounding possibility

forms the vertical mounting platform for all accessories in H370/H390 free-standing cabinets

Technical Data

  • Order No.: 0391-9018-00-03
  • Dimension: Suitable for height : 1800 mm
  • Surface: Galvanized
  • Material: Sheet steel
  • Protective ground connection: according to DIN EN 61439-1
  • Sheet thickness: 2 mm

Notice

  • Only suitable for H370/H390 cabinets
  • 1 set (1x front, 1x rear) including mounting hardware
