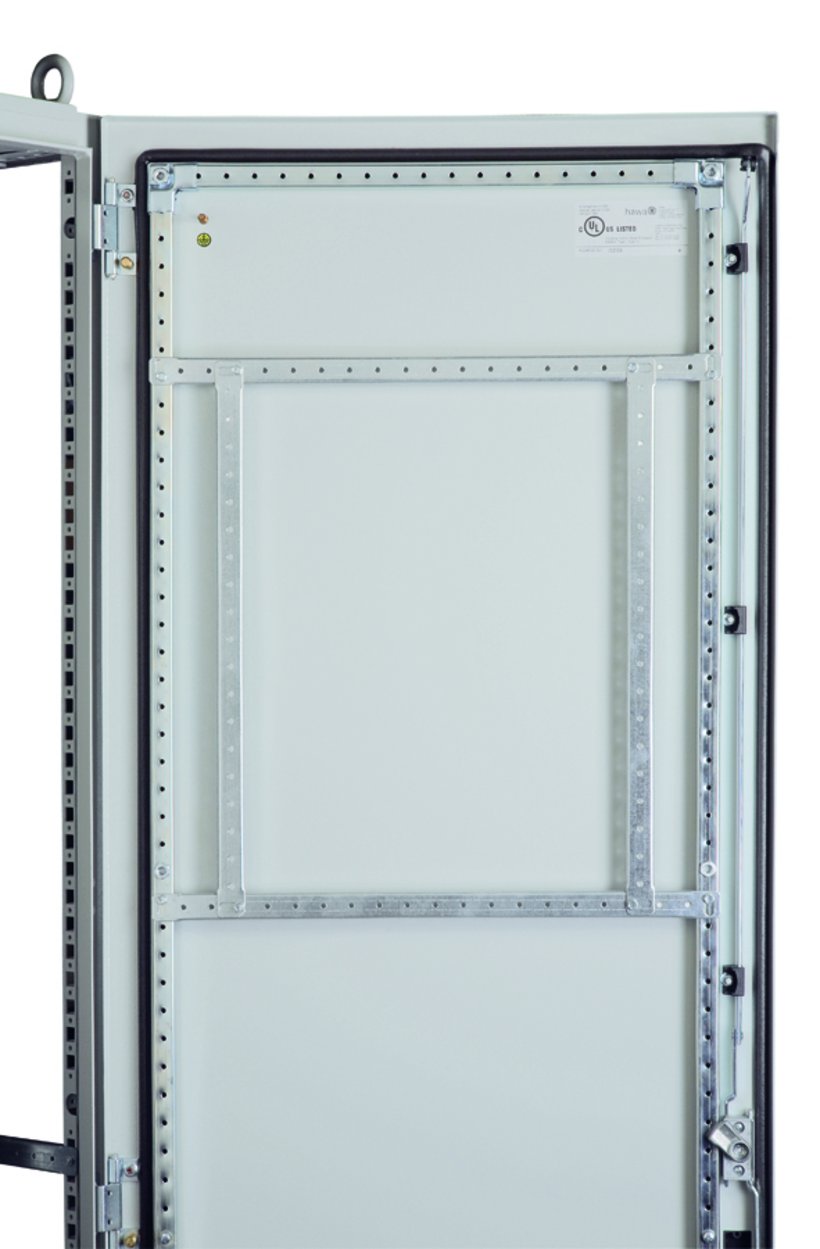

Mounting frame in doors
Mounting frame in doors

0396-0011-50-00

Mounting frame in doors

  • For universal design of mounting levels in the door

Product description

For lateral mounting of light components, cable ducts, wiring harnesses etc.

With Ø 4.5 mm holes every 25 mm for DIN 7500 M5x12 or DIN 7516 M5x10 bolts

Technical Data

  • Order No.: 0396-0011-50-00
  • Dimension: Suitabel for width : 500 mm
  • Surface: Galvanized
  • Material: Sheet steel
  • Size: Length : 387 mm
  • Weight: 0.2 kg
  • Sheet thickness: 1,5 mm
  • 1 rail without mounting hardware
