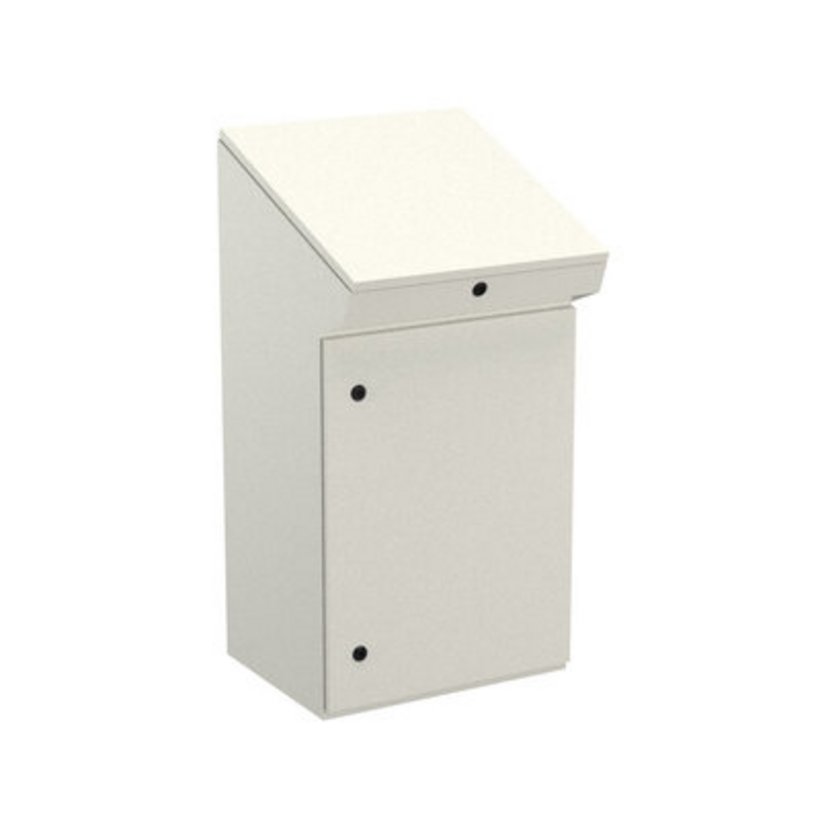

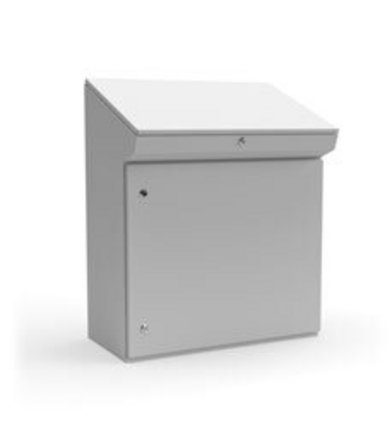

H335 Console, sheet steel, 1 door

0335-5010-49-07

H335 Console, sheet steel, 1 door

  • Console optionally with or without mounting plate
  • Ergonomic design
  • UL type 12

Product description

Use as switchboard or control console, single or overlapping double door version. Optionally with or without mounting plate.

Protective ground connection according to DIN EN 61439-1, M6x16 studs on door, console panel and body.

Door:

The double flanged door frame and narrow door gap avoid the entry of dirt and water while opening the door.

Door with seamless foamed-in gasket, standard stop on the right side, door stop change possible without drilling.

Hidden hinges, made of sheet steel, 180° opening angle.

Lock: single door version with 2 quarter turn latch locks, double door version with 3-point locking system.

Standard locking bolt 3 mm double mandrel,

Both sides with reinforcing / perforated profile with Ø 4.2 mm attachment holes every 25 mm.

Console panel:

Console panel with seamless foamed-in gasket,

hidden hinges, made of sheet steel, max. opening angle 120°, with opening restrictor on right side (from W=800 mm on both sides) 70° opening angle,

Lock: 1 quarter turn latch lock, from B1200 2 quarter turn latch locks

standard locking bolt 3 mm double mandrel,

Front and rear side with reinforcing / perforated profile with Ø 4.2 mm attachment holes every 25 mm.

Cable entry:

Movable cable plate, accept rubber clamps .

Flat mounting plate fixed on rear panel with studs, standard length M8x35, max. 15 mm adjustable to height.

Fixed flanged mounting plate.

Rear panel closed.

Technical Data

  • Order No.: 0335-5010-49-07
  • Material: Sheet steel
  • Type: without mounting plate
  • Dimension: Width : 500 mm  Height : 977 mm  Depth : 492 mm
  • Weight: 30 kg
  • Sheet thickness: Body: 1,5 mm
    Door: 1,5 mm
    Console plate: 2 mm
  • Maximum installation: T-122 mm
  • Protective ground connection: according to DIN EN 61439-1
  • Surface: Powder coating RAL 7035, texture finish
  • Lock: plastic housing, locking bolt: GDZn black
    latch: galvanized
  • Protection type: IP55
    Type 1, 12
  • Cabinet type: Console systems
  • Approval: cULus

Notice

  • Other locking systems and stainless steel version on request.
  • Console complete with cable entry plate + 1 key
Universal lamp
3080-9043-09-07
Universal lamp
Socket
Shockproof “Schuko” socket 16 A
Mounting
left
Version
with door switch
Electrical connection
220V - 240V 50Hz
further information
Universal lamp
3080-9043-19-07
Universal lamp
Socket
without
Mounting
left
Version
with door switch
Electrical connection
220V - 240V 50Hz
further information
100 mm High Base Type 0346 for Consoles
0346-5001-40-17
100 mm High Base Type 0346 for Consoles
Width
500 mm
Material
Sheet steel
Socket size
380 mm
further information
Cable for Protective Ground Connection
1206-3800-00-00
Cable for Protective Ground Connection
Conductor cross-sections
6 mm2/0.01 in2
Dimensions
Length: 220 mm/8,66"
Drilling diameter d
Ø=6,4 mm
Material
H07V-K
further information
Cable for Protective Ground Connection
3080-7036-10-10
Cable for Protective Ground Connection
Conductor cross-sections
2,5 mm2
Dimensions
Length: 115 mm/4,53"
Drilling diameter d
Ø=4,3 mm
Material
H07V-K
further information
Cable for Protective Ground Connection
3080-9036-05-18
Cable for Protective Ground Connection
Conductor cross-sections
4 mm2
Dimensions
Length: 200 mm/7,87"
Drilling diameter d
Ø=5,3 mm
Material
H07V-K
further information
Cable for Protective Ground Connection
3080-9036-05-28
Cable for Protective Ground Connection
Conductor cross-sections
4 mm2
Dimensions
Length: 300 mm/11,81"
Drilling diameter d
Ø=5,3 mm
Material
H07V-K
further information
Cable for Protective Ground Connection
3080-9036-06-10
Cable for Protective Ground Connection
Conductor cross-sections
6 mm2/0.01 in2
Dimensions
Length: 120 mm/4,72"
Drilling diameter d
Ø=6,4 mm
Material
H07V-K
further information
Cable for Protective Ground Connection
3080-9036-06-20
Cable for Protective Ground Connection
Conductor cross-sections
6 mm2/0.01 in2
Dimensions
Length: 220 mm/8,66"
Drilling diameter d
Ø=6,4 mm
Material
H07V-K
further information
Cable for Protective Ground Connection
3080-9036-06-35
Cable for Protective Ground Connection
Conductor cross-sections
6 mm2/0.01 in2
Dimensions
Length: 370 mm/14,57"
Drilling diameter d
Ø=6,4 mm
Material
H07V-K
further information
Cable for Protective Ground Connection
3080-9036-16-20
Cable for Protective Ground Connection
Conductor cross-sections
16 mm2
Dimensions
Length: 220 mm/8,66"
Drilling diameter d
ø 8,5 mm
Material
H07V-K
further information
Cable for Protective Ground Connection
3080-9036-16-35
Cable for Protective Ground Connection
Conductor cross-sections
16 mm2
Dimensions
Length: 370 mm/14,57"
Drilling diameter d
Ø=8,5 mm
Material
H07V-K
further information
Protective conductor symbol
3080-9102-13-12
Protective conductor symbol
further information
Pre-mounted quarter turn latch lock
3070-7504-11-00
Pre-mounted quarter turn latch lock
Type
Square 6 mm
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-11-01
Pre-mounted quarter turn latch lock
Type
Square 6 mm
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-11-05
Pre-mounted quarter turn latch lock
Type
Square 6 mm
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-12-00
Pre-mounted quarter turn latch lock
Type
Square 7 mm
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-12-01
Pre-mounted quarter turn latch lock
Type
Square 7 mm
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-12-03
Pre-mounted quarter turn latch lock
Type
Square 7 mm
Material
Plastic
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-12-05
Pre-mounted quarter turn latch lock
Type
Square 7 mm
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-13-00
Pre-mounted quarter turn latch lock
Type
Square 8 mm
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-13-01
Pre-mounted quarter turn latch lock
Type
Square 8 mm
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-13-03
Pre-mounted quarter turn latch lock
Type
Square 8 mm
Material
Plastic
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-13-05
Pre-mounted quarter turn latch lock
Type
Square 8 mm
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-13-33
Pre-mounted quarter turn latch lock
Type
Square 8 mm
Material
Plastic
Surface finish
black
Dimension L
35 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-14-00
Pre-mounted quarter turn latch lock
Type
Double bit 3 mm
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-14-01
Pre-mounted quarter turn latch lock
Type
Double bit 3 mm
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-14-03
Pre-mounted quarter turn latch lock
Type
Double bit 3 mm
Material
Plastic
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-14-05
Pre-mounted quarter turn latch lock
Type
Double bit 3 mm
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-14-33
Pre-mounted quarter turn latch lock
Type
Double bit 3 mm
Material
Plastic
Surface finish
black
Dimension L
35 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-15-00
Pre-mounted quarter turn latch lock
Type
8 mm triangular
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-15-01
Pre-mounted quarter turn latch lock
Type
8 mm triangular
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-15-03
Pre-mounted quarter turn latch lock
Type
8 mm triangular
Material
Plastic
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-15-05
Pre-mounted quarter turn latch lock
Type
8 mm triangular
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-16-00
Pre-mounted quarter turn latch lock
Type
Daimler-Benz
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-16-01
Pre-mounted quarter turn latch lock
Type
Daimler-Benz
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-16-03
Pre-mounted quarter turn latch lock
Type
Daimler-Benz
Material
Plastic
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-16-05
Pre-mounted quarter turn latch lock
Type
Daimler-Benz
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-16-33
Pre-mounted quarter turn latch lock
Type
Daimler-Benz
Material
Plastic
Surface finish
black
Dimension L
35 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-17-00
Pre-mounted quarter turn latch lock
Type
Triangular 7 mm
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-17-01
Pre-mounted quarter turn latch lock
Type
Triangular 7 mm
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-17-03
Pre-mounted quarter turn latch lock
Type
Triangular 7 mm
Material
Plastic
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-17-05
Pre-mounted quarter turn latch lock
Type
Triangular 7 mm
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-18-00
Pre-mounted quarter turn latch lock
Type
Double bit 5 mm
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-18-01
Pre-mounted quarter turn latch lock
Type
Double bit 5 mm
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-18-03
Pre-mounted quarter turn latch lock
Type
Double bit 5 mm
Material
Plastic
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-18-05
Pre-mounted quarter turn latch lock
Type
Double bit 5 mm
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-18-33
Pre-mounted quarter turn latch lock
Type
Double bit 5 mm
Material
Plastic
Surface finish
black
Dimension L
35 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-19-00
Pre-mounted quarter turn latch lock
Type
Slot 2 mm
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-19-01
Pre-mounted quarter turn latch lock
Type
Slot 2 mm
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-19-03
Pre-mounted quarter turn latch lock
Type
Slot 2 mm
Material
Plastic
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-19-05
Pre-mounted quarter turn latch lock
Type
Slot 2 mm
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-73-03
Pre-mounted quarter turn latch lock
Type
twist lock
Material
Plastic
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7504-84-03
Pre-mounted quarter turn latch lock
Type
Star grip
Material
Plastic
Surface finish
black
Dimension L
45 mm
Dimension b
18 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-11-00
Pre-mounted quarter turn latch lock
Type
Square 6 mm
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-11-01
Pre-mounted quarter turn latch lock
Type
Square 6 mm
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-11-05
Pre-mounted quarter turn latch lock
Type
Square 6 mm
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-12-00
Pre-mounted quarter turn latch lock
Type
Square 7 mm
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-12-01
Pre-mounted quarter turn latch lock
Type
Square 7 mm
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-12-03
Pre-mounted quarter turn latch lock
Type
Square 7 mm
Material
Plastic
Surface finish
black
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-12-05
Pre-mounted quarter turn latch lock
Type
Square 7 mm
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-13-00
Pre-mounted quarter turn latch lock
Type
Square 8 mm
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-13-01
Pre-mounted quarter turn latch lock
Type
Square 8 mm
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-13-03
Pre-mounted quarter turn latch lock
Type
Square 8 mm
Material
Plastic
Surface finish
black
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-13-05
Pre-mounted quarter turn latch lock
Type
Square 8 mm
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-14-00
Pre-mounted quarter turn latch lock
Type
Double bit 3 mm
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-14-01
Pre-mounted quarter turn latch lock
Type
Double bit 3 mm
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-14-03
Pre-mounted quarter turn latch lock
Type
Double bit 3 mm
Material
Plastic
Surface finish
black
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-14-05
Pre-mounted quarter turn latch lock
Type
Double bit 3 mm
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-15-00
Pre-mounted quarter turn latch lock
Type
8 mm triangular
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-15-01
Pre-mounted quarter turn latch lock
Type
8 mm triangular
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-15-05
Pre-mounted quarter turn latch lock
Type
8 mm triangular
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-16-00
Pre-mounted quarter turn latch lock
Type
Daimler-Benz
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-16-01
Pre-mounted quarter turn latch lock
Type
Daimler-Benz
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-16-05
Pre-mounted quarter turn latch lock
Type
Daimler-Benz
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-17-00
Pre-mounted quarter turn latch lock
Type
Triangular 7 mm
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-17-01
Pre-mounted quarter turn latch lock
Type
Triangular 7 mm
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-17-05
Pre-mounted quarter turn latch lock
Type
Triangular 7 mm
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-18-00
Pre-mounted quarter turn latch lock
Type
Double bit 5 mm
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-18-01
Pre-mounted quarter turn latch lock
Type
Double bit 5 mm
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-18-03
Pre-mounted quarter turn latch lock
Type
Double bit 5 mm
Material
Plastic
Surface finish
black
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-18-05
Pre-mounted quarter turn latch lock
Type
Double bit 5 mm
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-19-00
Pre-mounted quarter turn latch lock
Type
Slot 2 mm
Material
GDZn
Surface finish
chrome-plated
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-19-01
Pre-mounted quarter turn latch lock
Type
Slot 2 mm
Material
GDZn
Surface finish
black
Dimension L
45 mm
Dimension b
22 mm
further information
Pre-mounted quarter turn latch lock
3070-7604-19-05
Pre-mounted quarter turn latch lock
Type
Slot 2 mm
Material
Stainless steel
Surface finish
unfinished
Dimension L
45 mm
Dimension b
22 mm
further information
Cylinder quarter turn latch lock
3070-7383-13-33
Cylinder quarter turn latch lock
further information
Toggle quarter turn latch lock VD1
3070-0702-85-05
Toggle quarter turn latch lock VD1
further information
Toggle quarter turn latch lock TD1
3070-0702-95-05
Toggle quarter turn latch lock TD1
Material
Stainless steel 1.4401
Surface
bright, grip polished
Protection type
with correctly mounted seal disk IP65
further information
Toggle quarter turn latch lock TD1
3070-7393-00-00
Toggle quarter turn latch lock TD1
Material
GDZn
Surface
chrome-plated
Protection type
with correctly mounted seal disk IP65
further information
Toggle quarter turn latch lock TD1, lockable
3070-7393-13-33
Toggle quarter turn latch lock TD1, lockable
Lock
1333, 333
Material
GDZn
Surface
chrome-plated
Protection type
IP54
further information
Toggle quarter turn latch lock, small version
3070-0324-10-15
Toggle quarter turn latch lock, small version
Material
Enclosure and toggle: zinc diecasting
Fixing parts: galvanized steel
Locking height (b)
13.5 mm
Latch length
24 mm
Surface finish
black
further information
Toggle quarter turn latch lock, small version
3070-0324-20-15
Toggle quarter turn latch lock, small version
Material
Enclosure and toggle: zinc diecasting
Fixing parts: galvanized steel
Locking height (b)
13.5 mm
Latch length
24 mm
Surface finish
chrome-plated
further information
Toggle quarter turn latch lock, small version
3070-0324-10-20
Toggle quarter turn latch lock, small version
Material
Enclosure and toggle: zinc diecasting
Fixing parts: galvanized steel
Locking height (b)
19.5 mm
Latch length
24 mm
Surface finish
black
further information
Toggle quarter turn latch lock, small version
3070-0324-20-20
Toggle quarter turn latch lock, small version
Material
Enclosure and toggle: zinc diecasting
Fixing parts: galvanized steel
Locking height (b)
19.5 mm
Latch length
24 mm
Surface finish
chrome-plated
further information
Toggle quarter turn latch lock, small version E1
3070-0324-30-15
Toggle quarter turn latch lock, small version E1
Material
Enclosure and toggle: zinc diecasting
Fixing parts: galvanized steel
Locking height (b)
13.5 mm
Latch length
24 mm
Surface finish
black
further information
Toggle quarter turn latch lock, small version E1
3070-0324-40-15
Toggle quarter turn latch lock, small version E1
Material
Enclosure and toggle: zinc diecasting
Fixing parts: galvanized steel
Locking height (b)
13.5 mm
Latch length
24 mm
Surface finish
chrome-plated
further information
Toggle quarter turn latch lock, small version E1
3070-0324-30-20
Toggle quarter turn latch lock, small version E1
Material
Enclosure and toggle: zinc diecasting
Fixing parts: galvanized steel
Locking height (b)
19.5 mm
Latch length
24 mm
Surface finish
black
further information
Toggle quarter turn latch lock, small version E1
3070-0324-40-20
Toggle quarter turn latch lock, small version E1
Material
Enclosure and toggle: zinc diecasting
Fixing parts: galvanized steel
Locking height (b)
19.5 mm
Latch length
24 mm
Surface finish
chrome-plated
further information
Compact handle for Profile half cylinder
3070-0908-00-01
Compact handle for Profile half cylinder
Material
Handle: Polyamide GF 30 %, black. Body: GD-Zn, untreated. Latch and mounting hardware: Steel, galvanized
Locking height (b)
20 mm
Latch length (L)
45 mm
Protection class
IP65
further information
Mounting frame in doors
3362-0001-04-20
Mounting frame in doors
Length
434 mm
Suitable for width
500 mm
further information
Stop roller
3080-9008-33-31
Stop roller
Type
for doors hinged to the left side
further information
Stop roller
3080-9009-33-31
Stop roller
Type
for doors hinged to the left side
further information
Door Switch for Wall-Mount Enclosures Serie 33 / H335 Console
3080-7041-61-33
Door Switch for Wall-Mount Enclosures Serie 33 / H335 Console
Contact
1 Normally open, 1 normally closed
Housing and lid
Glass fiber reinforced plastic (UL 94-V0)
Utilization category
AC-15, Ue/le 240V/3A
Rated operating voltage
Ue 240V
further information
Mounting kit universal lamp
3080-7006-33-02
Mounting kit universal lamp
Type
from an enclosure height of 401 mm
further information
Door opening restrictor
3080-7108-33-31
Door opening restrictor
Surface
Galvanized
Material
Sheet steel
Opening angle
90°, 105°, 120°, 140°
further information
Save as PDF Save as PDF Direct enquiry
H335 Console, sheet steel, 1 door
H335 Console, sheet steel, 1 door
Use as switchboard or control console, single or overlapping double door version. Optionally with or without mounting plate.
Protective ground connection according to DIN EN 61439-1, M6x16 studs on door, console panel and body.

The double flanged door frame and narrow door gap avoid the entry of dirt and water while opening the door.
Door with seamless foamed-in gasket, standard stop on the right side, door stop change possible without drilling.
Hidden hinges, made of sheet steel, 180° opening…
notice
0335-5010-49-17
500 mm
977 mm
492 mm
with mounting plate
IP55
Type 1, 12
0335-6010-49-07
600 mm
977 mm
492 mm
without mounting plate
IP55
Type 1, 12
0335-6010-49-17
600 mm
977 mm
492 mm
with mounting plate
IP55
Type 1, 12
0335-8010-49-07
800 mm
977 mm
492 mm
without mounting plate
IP55
Type 1, 12
0335-8010-49-17
800 mm
977 mm
492 mm
with mounting plate
IP55
Type 1, 12
Contact
Find your personal point of contact
We are happy to help you.

The best control cabinets and enclosures are not produced on an assembly line, but through close dialog with our customers. Are you ready to begin?
Then contact your personal häwa consultant today.

Choose your advisor now

Empfangsmitarbeiterin Frau Sproll. Empfangsmitarbeiterin Frau Sproll.
Share this page
