Product description
Screwable
Applicable as right hand and left hand lock
The key can be extracted in both positions
Round cylinder with stainless steel cap
Technical Data
-
Order No.: 3070-0324-40-20
-
Material: Enclosure and toggle: zinc diecasting
Fixing parts: galvanized steel -
Surface: chrome-plated
-
lock height b: 19.5 mm
-
Closing stroke: 90 °
-
Installation opening: ø 16,3 / VK 14,1
-
Enclosure height: 13.5 mm
-
Locking: 2233
-
Latch length: 24 mm

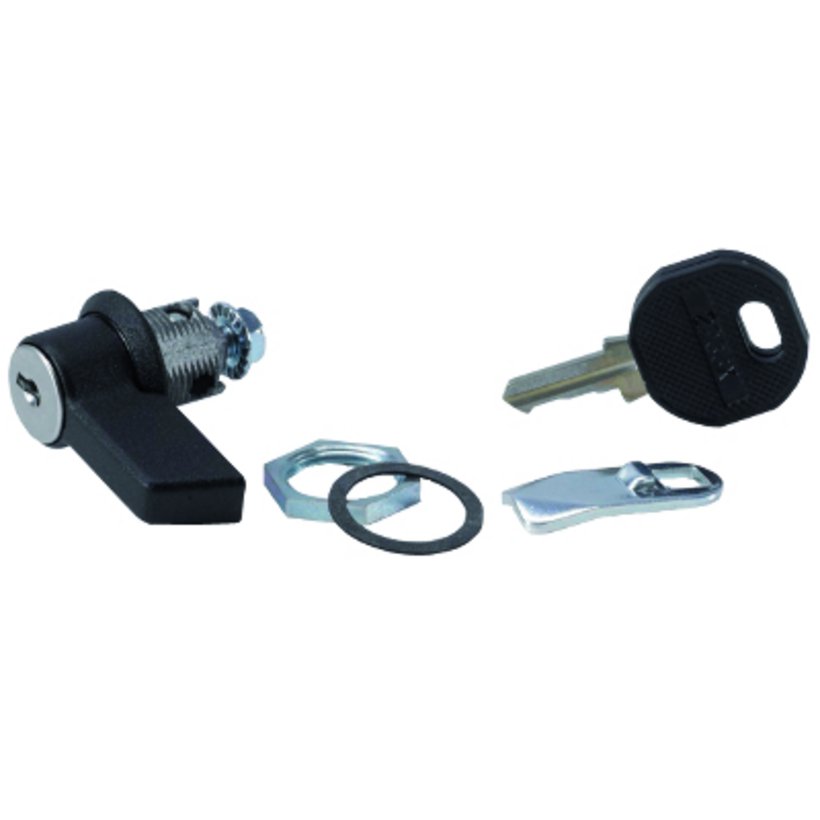

- 1 toggle quarter turn latch lock, latch, sealing with fixing nut and 1 key
0335-1010-49-07
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1010-49-17
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1210-49-07
H335 Console, sheet steel, 2 doors
Width
1200 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1210-49-17
H335 Console, sheet steel, 2 doors
Width
1200 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-5010-49-07
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-5010-49-17
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-6010-49-07
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-6010-49-17
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-8010-49-07
H335 Console, sheet steel, 1 door
Width
800 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-8010-49-17
H335 Console, sheet steel, 1 door
Width
800 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
R:27450_2112
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
R:27450_2113
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
R:27450_29296
H335 Console, sheet steel, 2 doors
Width
1200 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
R:27450_29297
H335 Console, sheet steel, 2 doors
Width
1200 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
R:27487_17365
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
R:27487_17366
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
R:27487_17470
H335 Console, sheet steel, 1 door
Width
800 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
R:27487_17471
H335 Console, sheet steel, 1 door
Width
800 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
R:27487_2108
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
R:27487_2109
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
