3080-9043-09-07

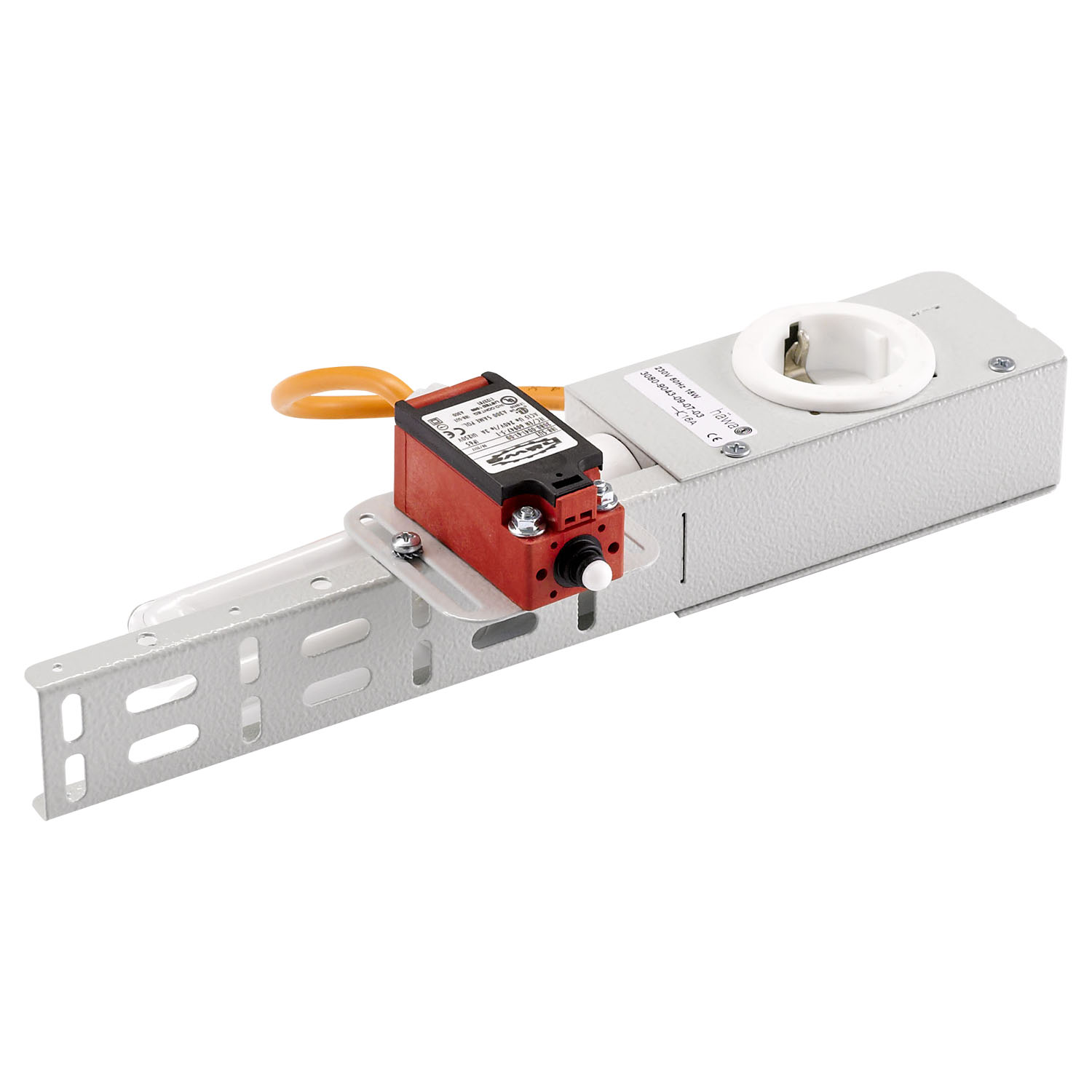

Universal lamp
Product description
Cabinet light for häwa wall-mount enclosures Serie 33, consoles type H335 and cabinets type H3XX.
Minimum width of wall-mount enclosures Serie 33, consoles type H335 or cabinets: 400 mm.
Completely pre-wired.
Electrical connection via spring terminal.
Flexible attachment with optional mounting kits: at the enclosure reinforcement and attachment frame, perforated continuously every 25 mm, behind the enclosure frame, directly on the mounting plate or on 35 mm wide support rails.
Choice of switch type and design, see technical data.
Technical Data
-
Order No.: 3080-9043-09-07
-
Length: 296 mm
-
Lamp socket: E27
-
light intensity: 1140 lm
-
Mounting: left
-
Electrical connection: 220V - 240V 50Hz
-
Material: Sheet steel
-
Surface: Powder coating RAL 7035, texture finish
-
Socket: Shockproof “Schuko” socket 16 A
-
Width: 60 mm
-
Height: 42 mm
-
Type: with door switch
-
Output: 10 W
Notice
- Other socket versions on request.
- 1 unit, completely pre-wired lamp with bulb.
0335-1010-49-07
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1010-49-17
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1210-49-07
H335 Console, sheet steel, 2 doors
Width
1200 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1210-49-17
H335 Console, sheet steel, 2 doors
Width
1200 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-5010-49-07
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-5010-49-17
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-6010-49-07
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-6010-49-17
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-8010-49-07
H335 Console, sheet steel, 1 door
Width
800 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-8010-49-17
H335 Console, sheet steel, 1 door
Width
800 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Assembly instructions:
