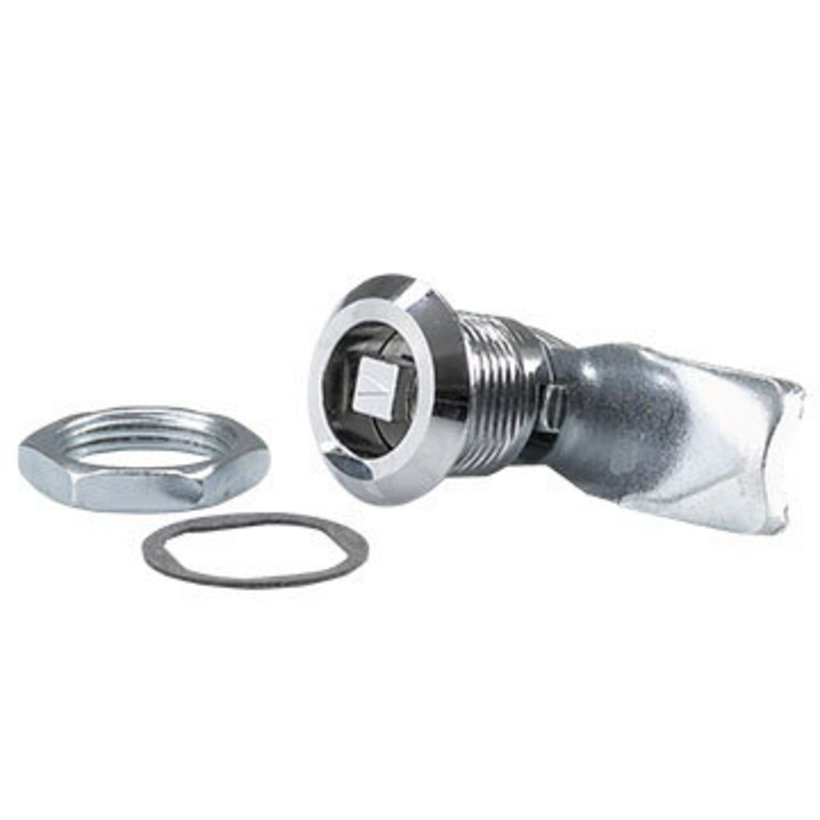

Pre-mounted quarter turn latch lock
- Delivery state: for closure from 12 to 9 o’clock (in case of vertical positioned latch).
Product description
Pre-mounted screw-in quarter turn latch lock.
Applicable as right or left hand lock.
Mounting is possible without disassembly.
The position of the latch is indicated by the position of the bolt or its marking.
Bolts are generally made of steel.
Technical Data
-
Order No.: 3070-7504-11-00
-
Dimension L: 45 mm
-
Material: GDZn
-
Surface: chrome-plated
-
Type: Square 6 mm
-
lock height b: 18 mm
-
Installation opening: 22,5 x 20,1 mm
-
Protection type: IP65
Notice
- By turning the latch and the complete quarter turn latch lock by 90°, the quarter turn latch lock can be used as left hand lock. Other versions on request.
- Quarter turn latch lock complete as shown on explosion drawing, nut delivered unmounted.
3070-0304-23-00
Hook latch for quarter turn latch locks
Locking height
18 mm
Material
Sheet steel
Type
Small version
3070-0304-28-00
Hook latch for quarter turn latch locks
Locking height
18 mm
Material
Sheet steel
Type
Big version
3070-0314-06-00
Latch for slide bars
b-Dimension
6 mm
Material
Sheet steel
With or without bolt
with
3070-0314-10-00
Latch for slide bars
b-Dimension
10 mm
Material
Sheet steel
With or without bolt
with
3070-0314-15-00
Latch for slide bars
b-Dimension
16 mm
Material
Sheet steel
With or without bolt
with
3070-0314-18-00
Latch for slide bars
b-Dimension
18 mm
Material
Sheet steel
With or without bolt
with
3070-0315-15-00
Latch for slide bars
b-Dimension
20 mm
Material
Sheet steel
With or without bolt
without
3070-0714-20-05
Latch for slide bars
b-Dimension
20 mm
Material
Stainless steel
With or without bolt
with
3070-0314-20-00
Latch for slide bars
b-Dimension
22 mm
Material
Sheet steel
With or without bolt
with
3070-0315-22-00
Latch for slide bars
b-Dimension
22 mm
Material
Sheet steel
With or without bolt
without
3070-0714-22-05
Latch for slide bars
b-Dimension
22 mm
Material
Stainless steel
With or without bolt
with
3070-0314-28-00
Latch for slide bars
b-Dimension
28 mm
Material
Sheet steel
With or without bolt
with
3070-0714-28-05
Latch for slide bars
b-Dimension
28 mm
Material
Stainless steel
With or without bolt
with
3070-0314-35-00
Latch for slide bars
b-Dimension
35 mm
Material
Sheet steel
With or without bolt
with
3070-0314-40-00
Latch for slide bars
b-Dimension
40 mm
Material
Sheet steel
With or without bolt
with
3070-0314-50-00
Latch for slide bars
b-Dimension
50 mm
Material
Sheet steel
With or without bolt
with
0335-1010-49-07
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1010-49-17
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1210-49-07
H335 Console, sheet steel, 2 doors
Width
1200 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1210-49-17
H335 Console, sheet steel, 2 doors
Width
1200 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-5010-49-07
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-5010-49-17
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-6010-49-07
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-6010-49-17
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-8010-49-07
H335 Console, sheet steel, 1 door
Width
800 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-8010-49-17
H335 Console, sheet steel, 1 door
Width
800 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
