Rubber clamp for cable entry plate

0396-7060-00-71

Rubber clamp for cable entry plate

  • Cable entry plates for free-standing and modular cabinets offer an increased flexibility

Product description

3-part divided and exchangeable cable entry plates in the enclosure bottom ensure cable entry by means of rubber clamps. Additional drilling is not required.

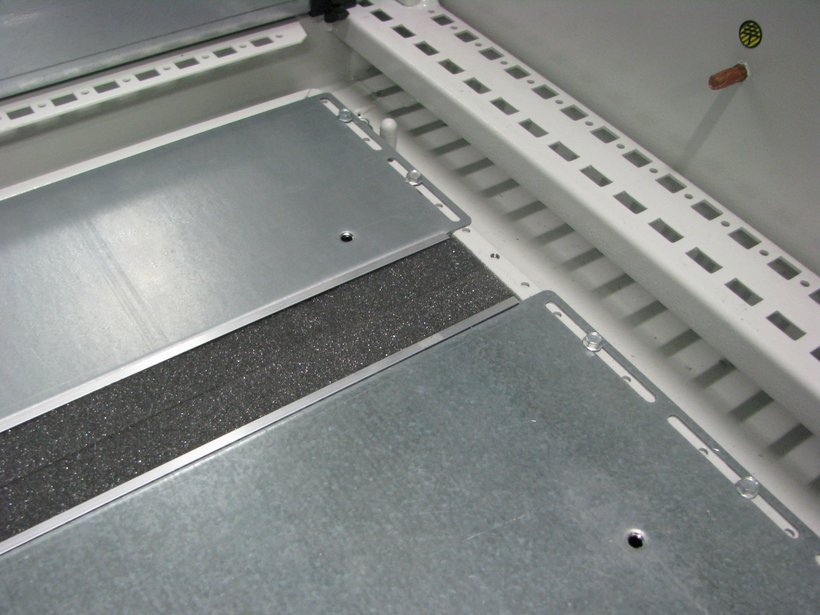

The rubber clamp is simply adhered to the edge of the bottom cable plate.

Particularly suitable for same cable diameters.

Technical data

  • Article number: 0396-7060-00-71
  • Dimensions: suitable for width : 600 mm
  • Material: elastic PU foam, one-sided self-adhesive
  • Size: Length : 395 mm
  • Resistant against: fuel vapors and mineral oil splashes, good hydrolysis resistance
  • Cross section: 25 x 25 mm

Notice

  • Only for 400 mm deep cabinets: Mounting plate in (second) rearmost position. Place the front cable plate in the flanged base frame opening. Adhere the rubber clamp on the center cable plate and at the rear side directly on the flanged base frame. Rear cable plate is not required.
  • For H390 cabinets W-1600 and W-2000, 2 sets W-800 or W-1000 are to be ordered.
  • 1 set = 2 pieces
H335 Console, sheet steel, 1 door
0335-5010-49-07
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
H335 Console, sheet steel, 1 door
0335-5010-49-17
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12

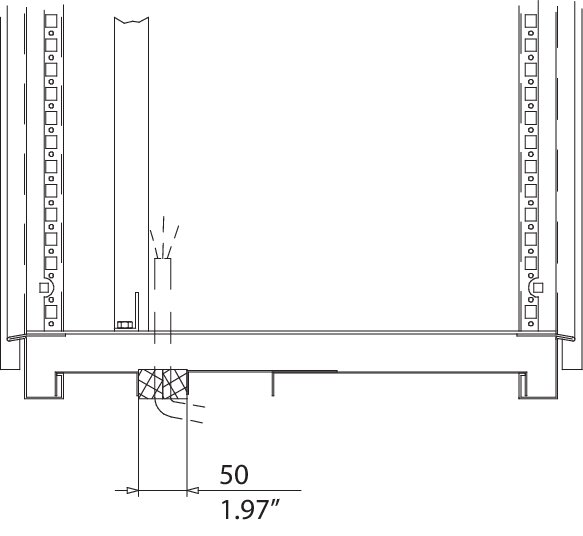

CAD data and other illustrations:
Rubber clamp for cable entry plate
Rubber clamp for cable entry plate
3-part divided and exchangeable cable entry plates in the enclosure bottom ensure cable entry by means of rubber clamps. Additional drilling is not required.
The rubber clamp is simply adhered to the edge of the bottom cable plate.
Particularly suitable for same cable diameters.

Remember
600 mm
800 mm
1000 mm
1200 mm
