Product description
Screw-in cylinder quarter turn latch lock for housings with an installation hole of 22.5 x 20.1 mm and 23.1 x 20.2 mm.
Can be used for right-hand and left-hand locking.
Suitable latch, see accessories.
Technical Data
-
Order No.: 3070-7383-13-33
-
Material: zinc die-casting
-
Surface: chrome-plated
-
Closing stroke: 90 °C
-

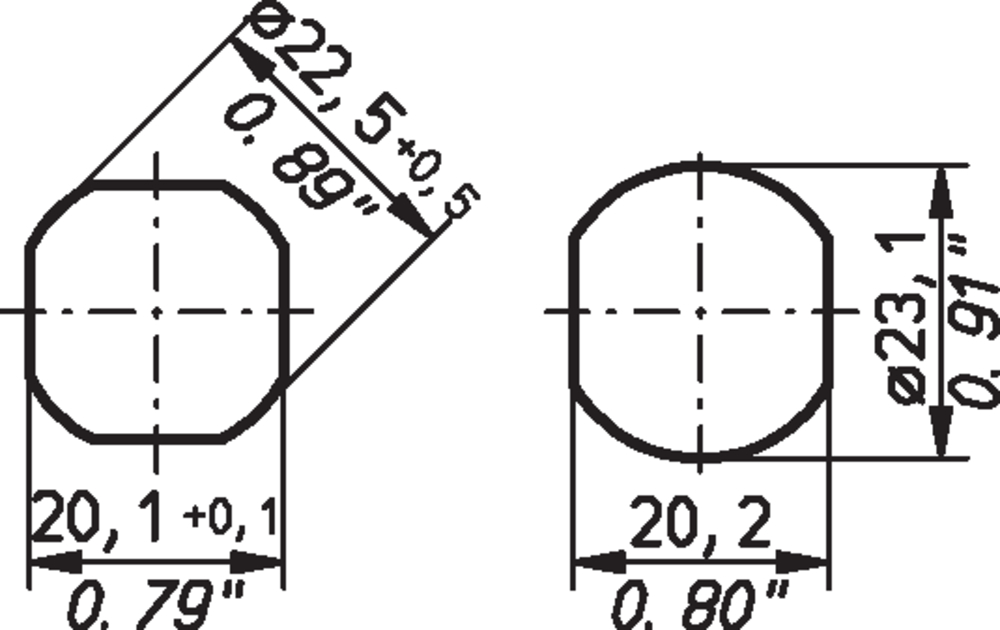

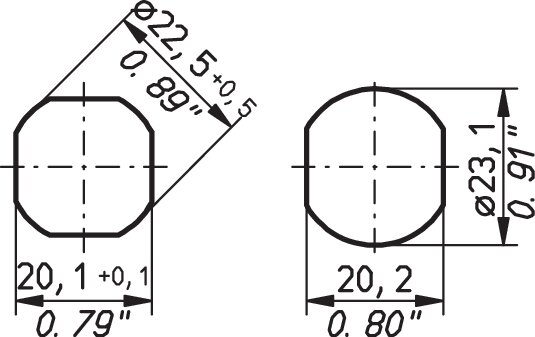

Installation opening: 22,5 x 20,1 mm or 23,1 x 20,2 mm
-
Locking: 1333, 333
-
Protection type: IP40
Notice

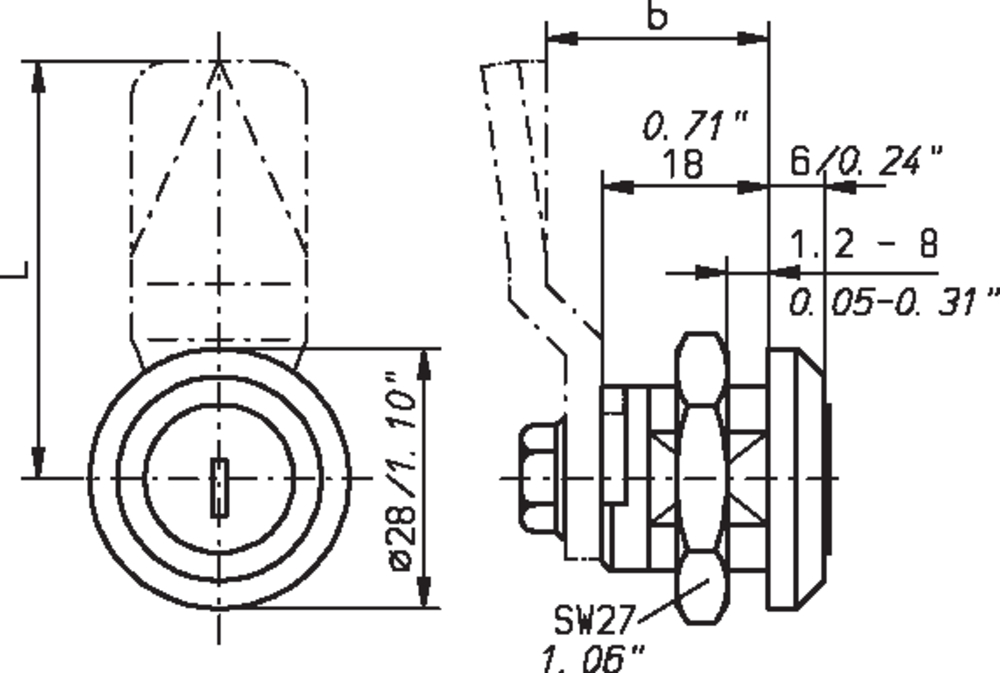

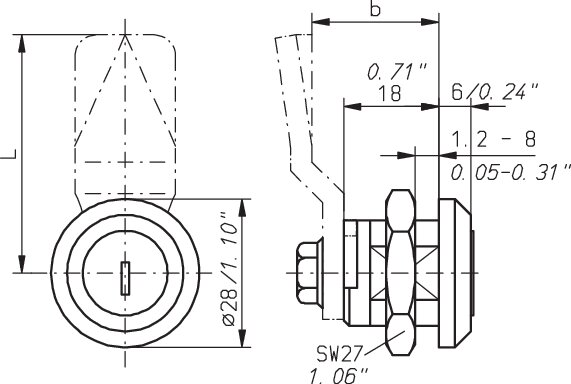

- Please determine the required dimension "b" of the crank to select the suitable latch.
