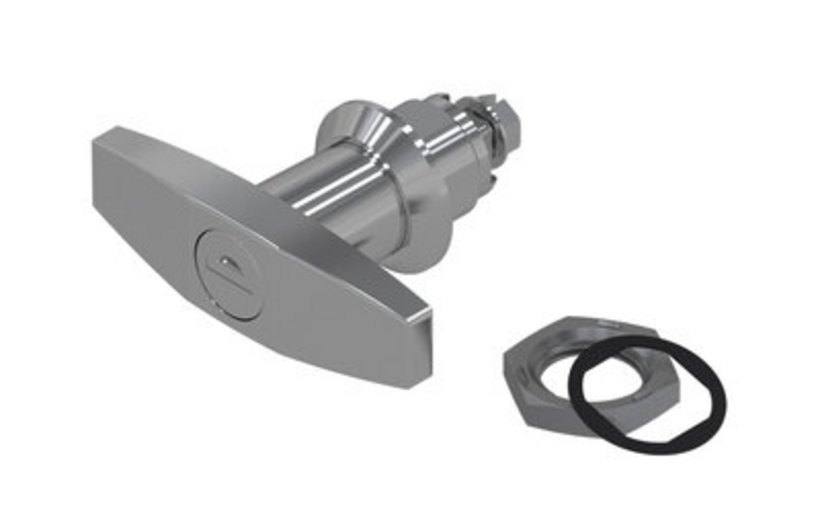

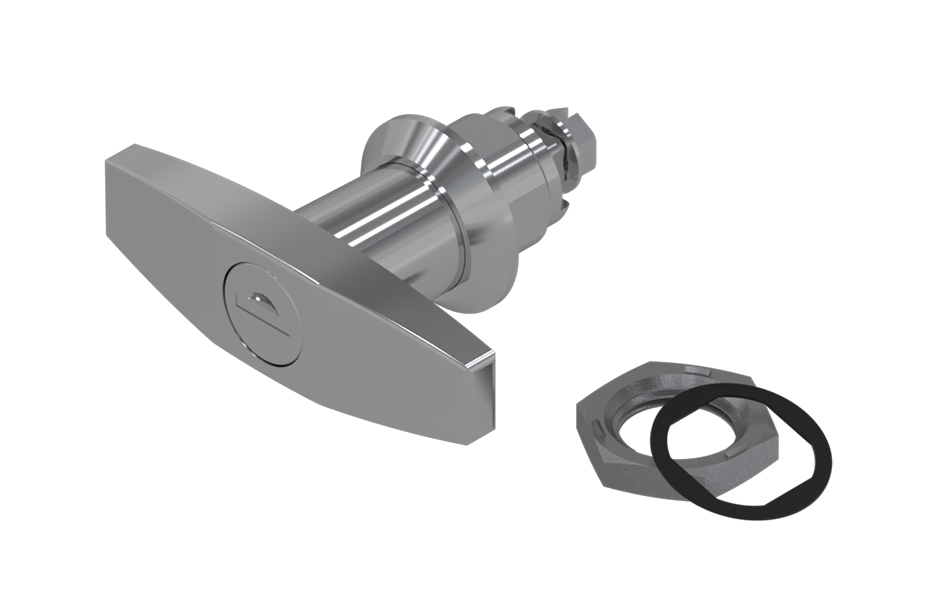

Toggle quarter turn latch lock TD1, lockable
Product description
Screwable
Applicable as right hand and left hand lock
Grounding by earthing nut
Door thickness max. 8 mm

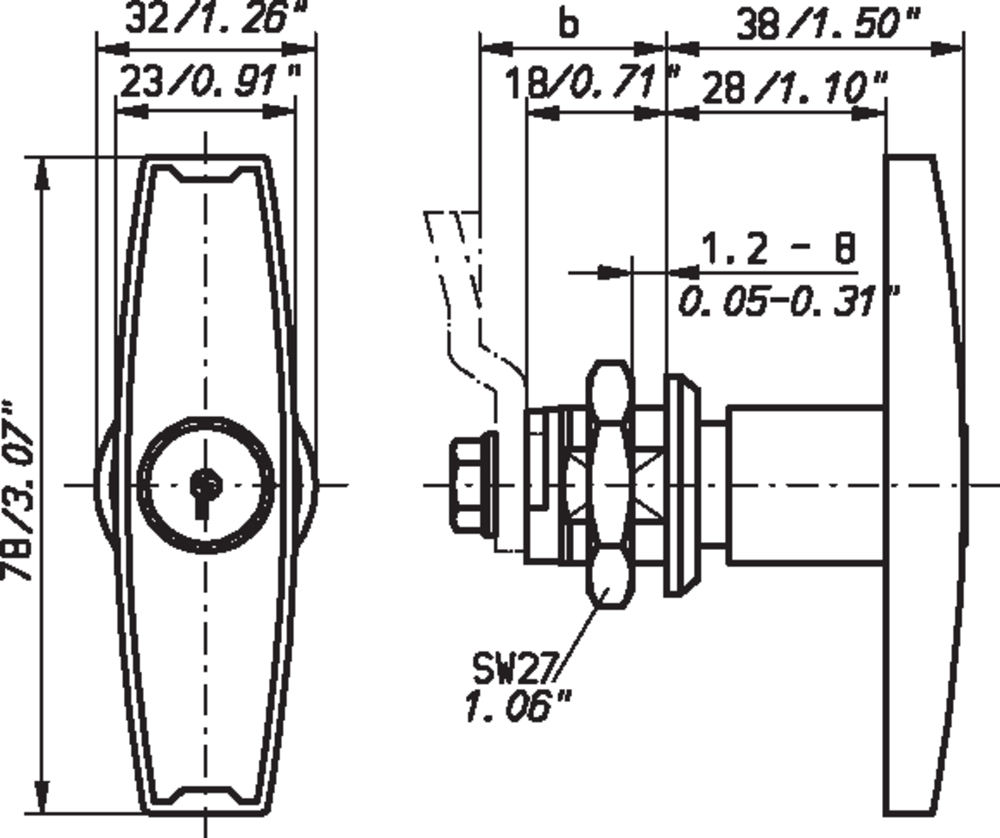

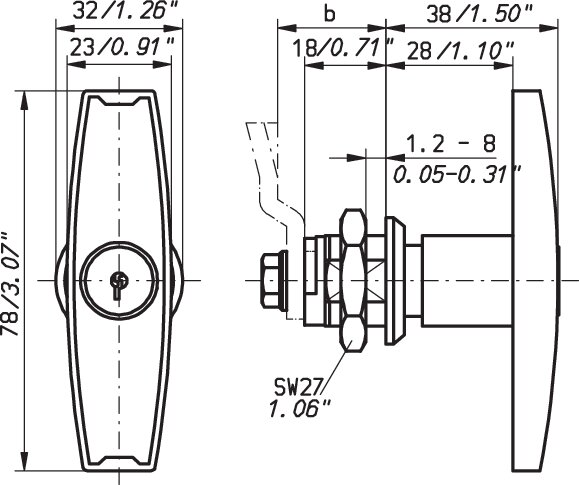

Technical Data
-
Order No.: 3070-7393-13-33
-
Material: GDZn
-
Surface: chrome-plated
-
Closing stroke: 90 °
-
Locking: 1333, 333
-
Protection type: IP54
Notice
- Same quarter turn latch lock, not lockable: 3070-7393-00-00
- Quarter turn latch lock, made of polished stainless steel, not lockable: 3070-0702-95-05
- 1 rotating latch with seal, grounding nut and 2 keys, but without locking tongue
3070-0304-23-00
Hook latch for quarter turn latch locks
Locking height
18 mm
Material
Sheet steel
Type
Small version
3070-0304-28-00
Hook latch for quarter turn latch locks
Locking height
18 mm
Material
Sheet steel
Type
Big version
3070-0314-06-00
Latch for slide bars
b-Dimension
6 mm
Material
Sheet steel
With or without bolt
with
3070-0314-10-00
Latch for slide bars
b-Dimension
10 mm
Material
Sheet steel
With or without bolt
with
3070-0314-15-00
Latch for slide bars
b-Dimension
16 mm
Material
Sheet steel
With or without bolt
with
3070-0314-18-00
Latch for slide bars
b-Dimension
18 mm
Material
Sheet steel
With or without bolt
with
3070-0315-15-00
Latch for slide bars
b-Dimension
20 mm
Material
Sheet steel
With or without bolt
without
3070-0314-20-00
Latch for slide bars
b-Dimension
22 mm
Material
Sheet steel
With or without bolt
with
3070-0315-22-00
Latch for slide bars
b-Dimension
22 mm
Material
Sheet steel
With or without bolt
without
3070-0314-28-00
Latch for slide bars
b-Dimension
28 mm
Material
Sheet steel
With or without bolt
with
3070-0314-35-00
Latch for slide bars
b-Dimension
35 mm
Material
Sheet steel
With or without bolt
with
3070-0314-40-00
Latch for slide bars
b-Dimension
40 mm
Material
Sheet steel
With or without bolt
with
3070-0314-50-00
Latch for slide bars
b-Dimension
50 mm
Material
Sheet steel
With or without bolt
with
0335-1010-49-07
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1010-49-17
H335 Console, sheet steel, 2 doors
Width
1000 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1210-49-07
H335 Console, sheet steel, 2 doors
Width
1200 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-1210-49-17
H335 Console, sheet steel, 2 doors
Width
1200 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP54
Type 1, 12
Type 1, 12
0335-5010-49-07
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-5010-49-17
H335 Console, sheet steel, 1 door
Width
500 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-6010-49-07
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-6010-49-17
H335 Console, sheet steel, 1 door
Width
600 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-8010-49-07
H335 Console, sheet steel, 1 door
Width
800 mm
Height
977 mm
Depth
492 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
0335-8010-49-17
H335 Console, sheet steel, 1 door
Width
800 mm
Height
977 mm
Depth
492 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
