0396-7240-00-13

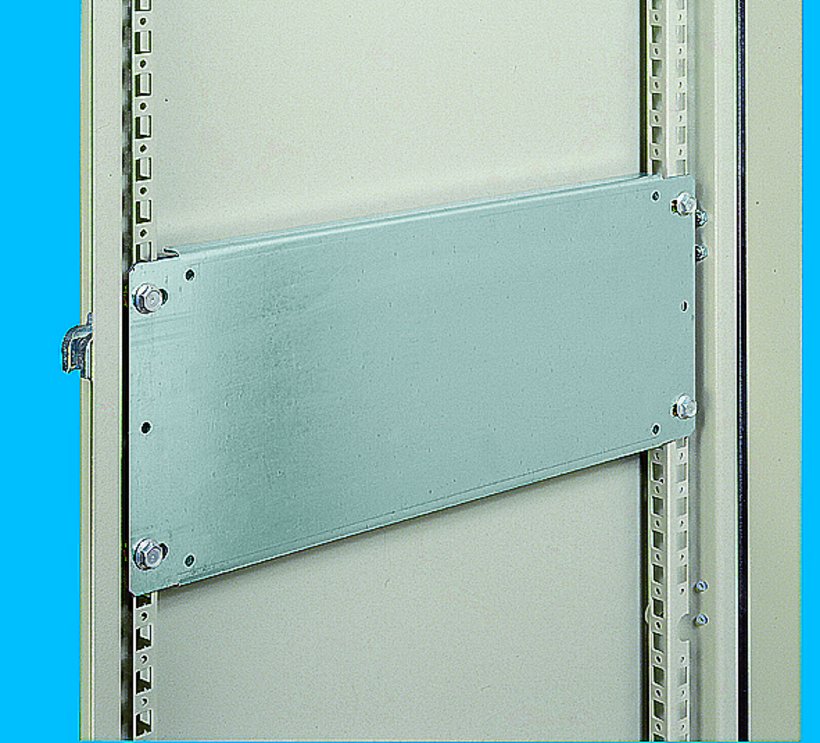

Lateral mounting plate
Product description
For the formation of mounting areas on the side.
Technical Data
-
Order No.: 0396-7240-00-13
-
Dimension: Width : 720 mm Height : 400 mm Suitable for depth : 800 mm
-
Surface: Galvanized
-
Material: Steel sheet 2 mm
-
Weight: 4.8 kg
-
Protective ground connection: according to DIN EN 61439-1
Notice
- Attention: The vertical mounting rails are only required when mounted in H390 and H370 cabinets!
- Mounting plate without mounting hardware
0395-6018-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
600 mm
Height
1800 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6018-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
600 mm
Height
1800 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6020-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
600 mm
Height
2000 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6020-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
600 mm
Height
2000 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8018-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
1800 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8018-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
1800 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8020-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
2000 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8020-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
2000 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
