Partial pivot mounting plate

0396-5155-00-03

Partial pivot mounting plate

Product description

Ground connection: Provided

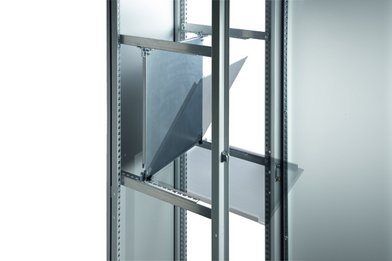

The partial mounting plate pivots to the front making the equioment behind the mounting plate readily accessible.

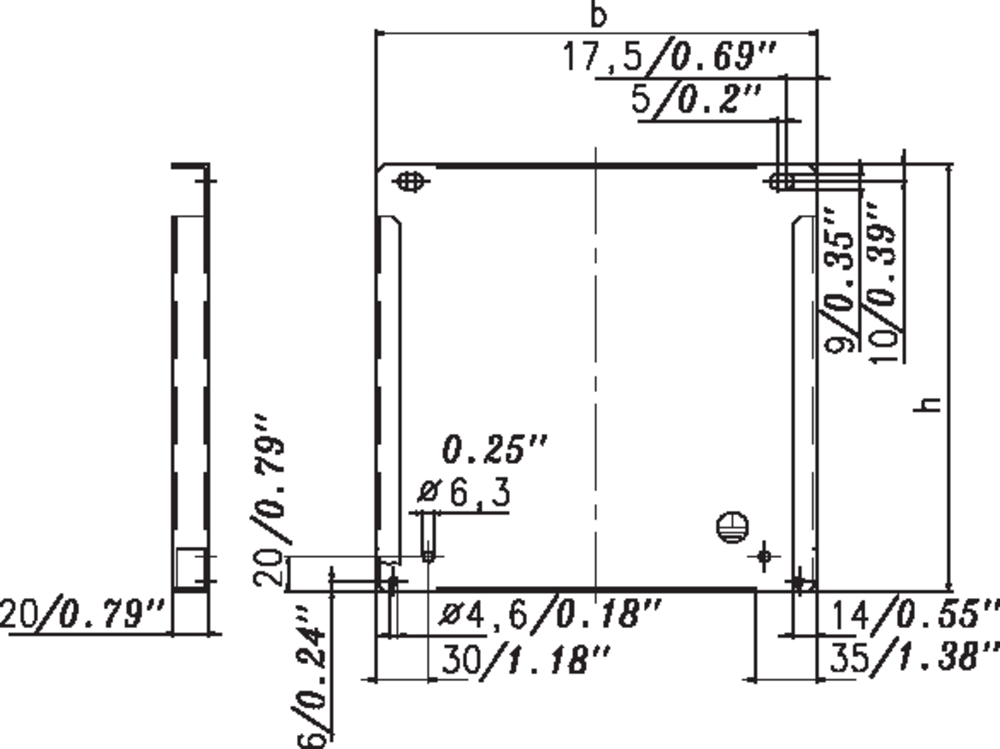

Technical Data

  • Order No.: 0396-5155-00-03
  • Dimension: Width : 513 mm  Height : 553 mm  Suitabel for width : 600 mm
  • Surface: Galvanized
  • Material: Sheet steel
  • Weight: 5.1 kg
  • Protective ground connection: according to DIN EN 61439-1
  • Sheet thickness: 2 mm/0,08"

Notice

  • Attention: The vertical mounting rails are only required when mounted in H390 and H370 cabinets. Partial mounting plates can be installed either with center attachment brackets or center support rails with the proven “häwa klick” system for secure engagement of the mounting plate. The center support rails offer higher convenience. Please see the different attachment kits.
  • 1 partial mounting plate with sliding block, 2 screws M8x16 and assembly instructions part-no. 0396-0055-00-77
