2010-7266-44-37
Extendable intermediate shelves
Product description
Labor saving quick mounting system employs bajonet tabs on intermediate shelves and telescopic rails. Slots in the shelves aid air movement and help to prevent heat build-up.
Technical Data
-
Order No.: 2010-7266-44-37
-
Dimension: Suitabel for width : 600 mm Suitable for depth : 600 mm
-
Surface: Powder coating RAL 7035, texture finish
-
Material: Sheet steel
-

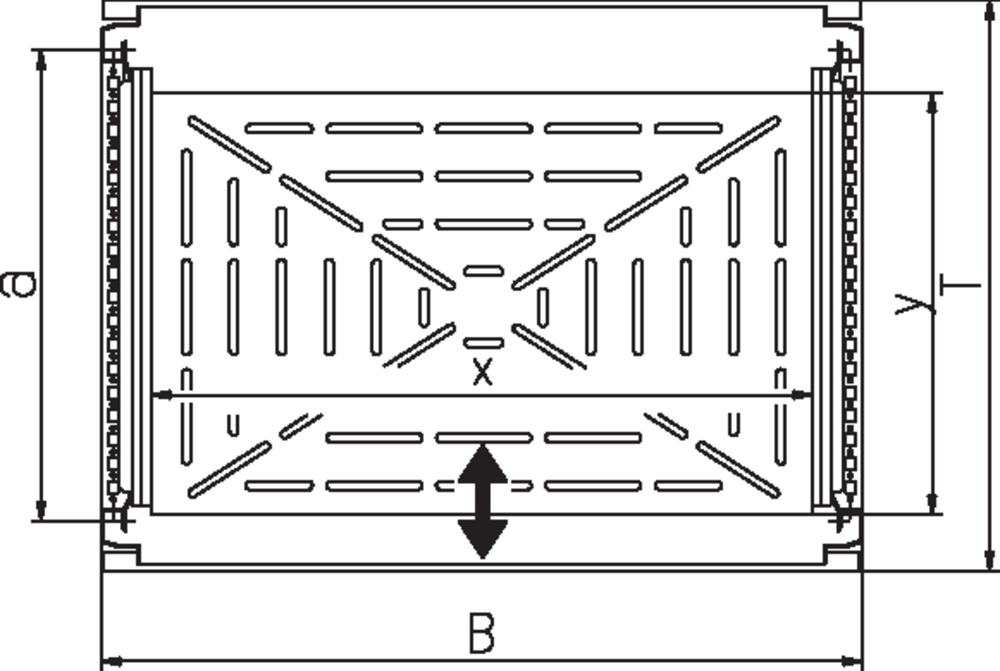

Hole size A: 495 mm
-
Weight: 6 kg
-
Construction height: 38 mm/1,50"
-
Load capacity: 50 kg
-
Extension length: 480 mm
-
Sheet thickness: 2 mm/0,08"
Notice
- The vertical mounting rails are only required for installation in H390 cabinets.
- Intermediate shelf with telescopic rails and mounting hardware
2070-9102-36-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
Assembly instructions:
CAD data and other file formats:
