0396-0003-40-15
Left hook-in center attachment
- Support and additional attachment of heavy components and 0361 swing frames.
Product description

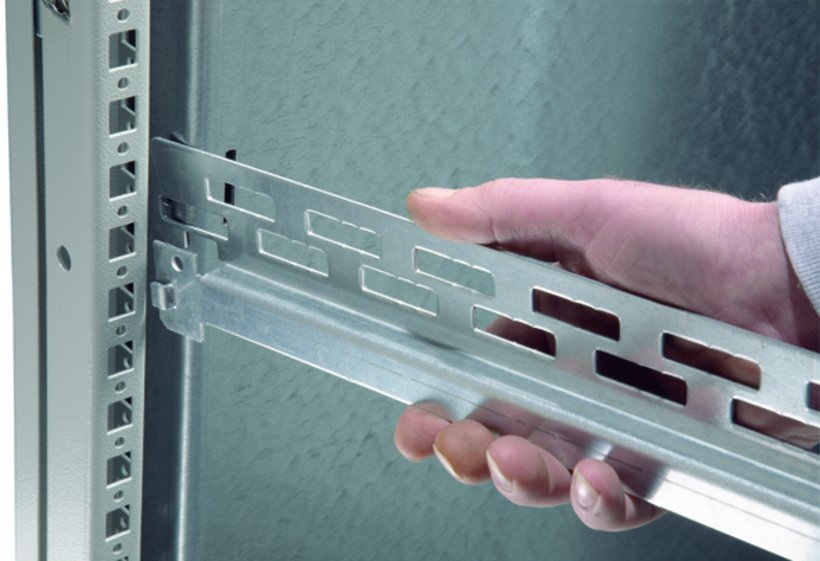

Center attachment rails with oblong holes for flexible attachment of components and accessories.
Can be hooked in the frame of H370/H390 (see note) and H375/395 cabinets, with front locking hole.
Technical data
-
Article number: 0396-0003-40-15
-
Dimensions: suitable for depth : 400 mm
-
Variant: left version
-
Surface: Galvanized
-
Material: Sheet steel
-
Dimension perforation (a): 295 mm
-
Size: Length : 342 mm
-
Weight: 0.3 kg
-
Sheet thickness: 2 mm
Notice
- When mounting in H370/H390 cabinets, use the vertical mounting rails type 0391-90xx-00-03.
- 1 set center attachment (2 x left rails) including 4 pcs. M5x12 Gefu thread-rolling fixing screws and mounting instructions order no. 0396-0003-00-77
Mounting instructions:
CAD data and other illustrations:
