Product description
Protective ground connection according to DIN EN 61439-1.

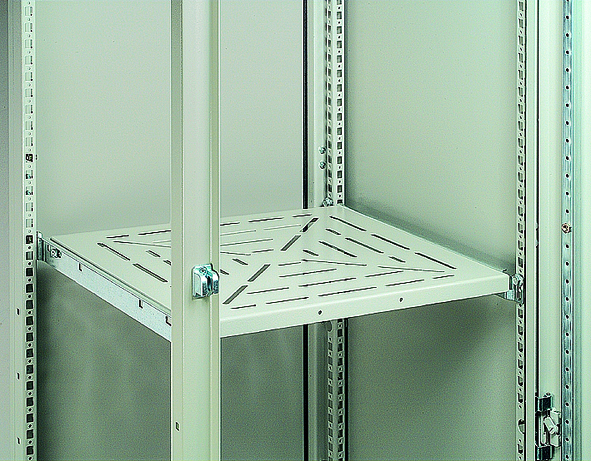

Intermediate shelves for mounting to cabinet frame. Very large mounting surfaces are obtained by using the entire interior cabinet width.
Assembled with clip nuts and bolts. The fixed shelf is simply placed onto the bolts and secured.
Slots in the shelves aid air movement and help to prevent heat build-up.
Technical Data
-
Order No.: 2010-7286-44-17
-
Dimension: Suitabel for width : 800 mm Suitable for depth : 600 mm
-
Surface: Powder coating RAL 7035, texture finish
-
Material: Sheet steel
-
Hole size A: 495 mm
-
Weight: 7 kg
-
Construction height: 25 mm
-
Footprint: X: 733 mm x Y: 444 mm
-
Load capacity: 50 kg
-
Sheet thickness: 2 mm
Notice
- You require an additional mounting rail for inclined positioning of the intermediate shelf.
- The vertical mounting rails are only required for installation in H370 and H390 cabinets.
- Intermediate shelf with mounting hardware
2070-9102-36-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5 x 9,5 mm
Variante
without grounding pin
0370-8018-60-00
Free-Standing cabinets Stainless steel H370, single door
Width
800 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP56
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0370-8018-60-10
Free-Standing cabinets Stainless steel H370, single door
Width
800 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP56
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0370-8020-60-00
Free-Standing cabinets Stainless steel H370, single door
Width
800 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP56
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0370-8020-60-10
Free-Standing cabinets Stainless steel H370, single door
Width
800 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP56
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-8018-60-07
Free-Standing cabinets Sheet steel H390, single door
Width
800 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-8018-60-17
Free-Standing cabinets Sheet steel H390, single door
Width
800 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-8020-60-07
Free-Standing cabinets Sheet steel H390, single door
Width
800 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-8020-60-17
Free-Standing cabinets Sheet steel H390, single door
Width
800 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0375-8018-60-00
Modular cabinets Stainless steel H375, single door
Width
800 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0375-8018-60-10
Modular cabinets Stainless steel H375, single door
Width
800 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0375-8020-60-00
Modular cabinets Stainless steel H375, single door
Width
800 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0375-8020-60-10
Modular cabinets Stainless steel H375, single door
Width
800 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8016-60-07
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
1600 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8016-60-17
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
1600 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8018-60-07
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8018-60-17
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8020-60-07
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8020-60-17
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8022-60-07
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
2200 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8022-60-17
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
2200 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
