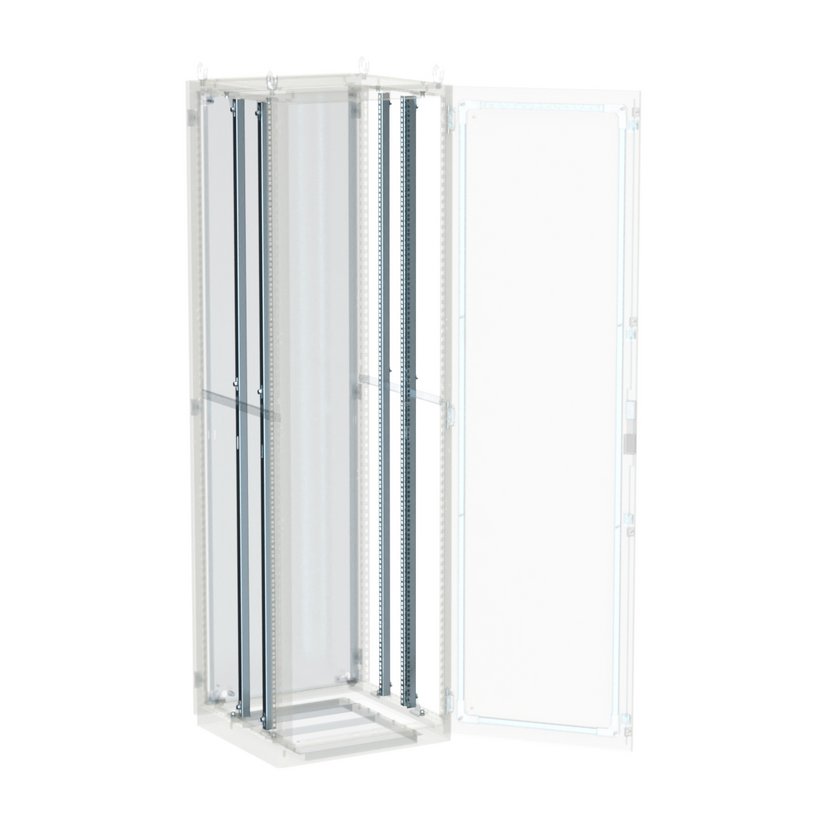

19"-Zinc plated element rails
19"-Zinc plated element rails

0348-7016-33-73

19"-Zinc plated element rails

  • For the installation of 19“ components

Product description

Protective ground connection according to DIN EN 61439-1.

19"-rails are used for the installation of sub-racks to DIN 41494 and EIA standards in 600 mm wide cabinets.

19"-rails are adjustable over the depht of the cabinet and may be positioned per the "A" dimension of slide rails.

Technical Data

  • Order No.: 0348-7016-33-73
  • Dimension: Height : 1478 mm  Suitable for height : 1600 mm
  • Surface: Galvanized and blue passivated
  • Construction height: HE/U33
  • Material: Sheet steel
  • Mounting dimensions: 1416 mm
  • Sheet thickness: 1,5 mm

Notice

  • For assembly inside the cabinet you require an attachment bracket set (final order no. -63 includes 4 pcs. and final order nos. -73 and -93 include 8 pcs. each).
  • Item 1: 1 set = 2 rails with mounting hardware
  • Item 2: 1 set = 2 rails, 2 U rails with mounting hardware
  • Item 3: 1 set = 4 U rails with mounting hardware
Attachment bracket 0348
0348-9029-56-03
Attachment bracket 0348
suitable for type
Galvanized 19"-element rails / order no. with final number 63
further information
Attachment bracket 0348
0348-9829-56-03
Attachment bracket 0348
suitable for type
Galvanized 19"-element rails / order no. with final numbers 73 and 93
further information
