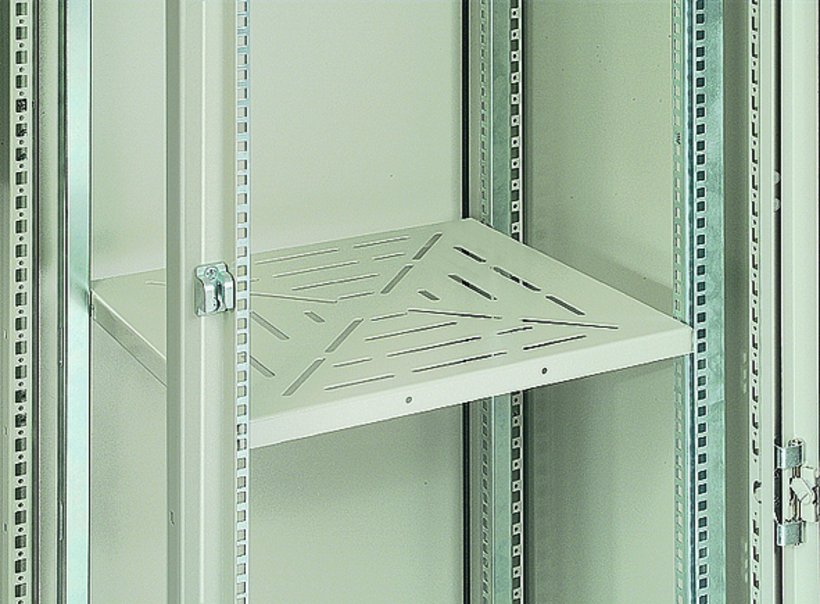

Product description
Protective ground connection according to DIN EN 61439-1.
Assembled with clip nuts and bolts. The fixed shelf is simply placed onto the bolts and secured.
Slots in the shelves aid air movement and help to prevent heat build-up.
Technical Data
-
Order No.: 2010-7263-54-17
-
Dimension: Suitabel for width : 600 mm Suitable for depth : 800 mm
-
Surface: Powder coating RAL 7035, texture finish
-
Construction height: 25 mm
-
Material: Sheet steel
-
Hole size A: 486 mm
-
Weight: 5 kg
-
Footprint: X: 462 mm x Y: 544 mm
-
Load capacity: 50 kg
-
Sheet thickness: 2 mm
- Delivery includes: Intermediate shelf with mounting hardware.
2070-9102-36-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5 x 9,5 mm
Variante
without grounding pin
0395-6018-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
600 mm
Height
1800 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6018-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
600 mm
Height
1800 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6020-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
600 mm
Height
2000 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6020-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
600 mm
Height
2000 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8018-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
1800 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8018-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
1800 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8020-82-07
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
2000 mm
Depth
800 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8020-82-17
H395 Modular Sheet Steel Cabinet, Front and Rear Door
Width
800 mm
Height
2000 mm
Depth
800 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
Assembly instructions:
CAD data and other file formats:
