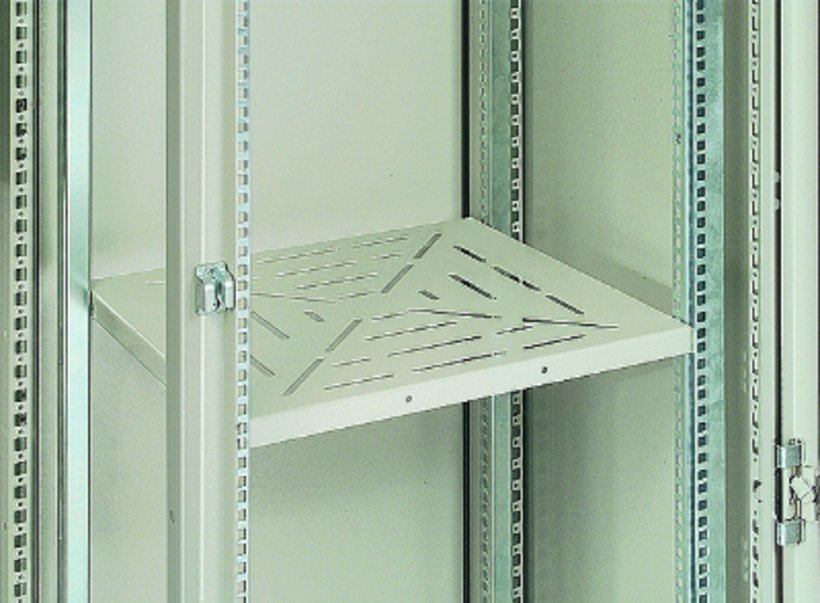

19"-Intermediate shelves-fixed
19"-Intermediate shelves-fixed

2010-7263-44-17

19"-Intermediate shelves-fixed

  • For mounting to 19”-rails

Product description

Protective ground connection according to DIN EN 61439-1.

Assembled with clip nuts and bolts. The fixed shelf is simply placed onto the bolts and secured.

Slots in the shelves aid air movement and help to prevent heat build-up.

Technical Data

  • Order No.: 2010-7263-44-17
  • Dimension: Suitabel for width : 600 mm  Suitable for depth : 600 mm
  • Surface: Powder coating RAL 7035, texture finish
  • Construction height: 25 mm
  • Material: Sheet steel

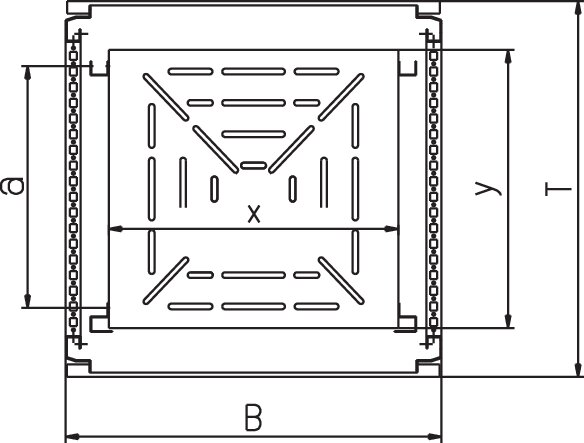

  • Hole size A: 386 mm
  • Weight: 4 kg
  • Footprint: X: 462 mm x Y: 444 mm
  • Load capacity: 50 kg
  • Sheet thickness: 2 mm
  • Delivery includes: Intermediate shelf with mounting hardware.
