7595-7401-14-01

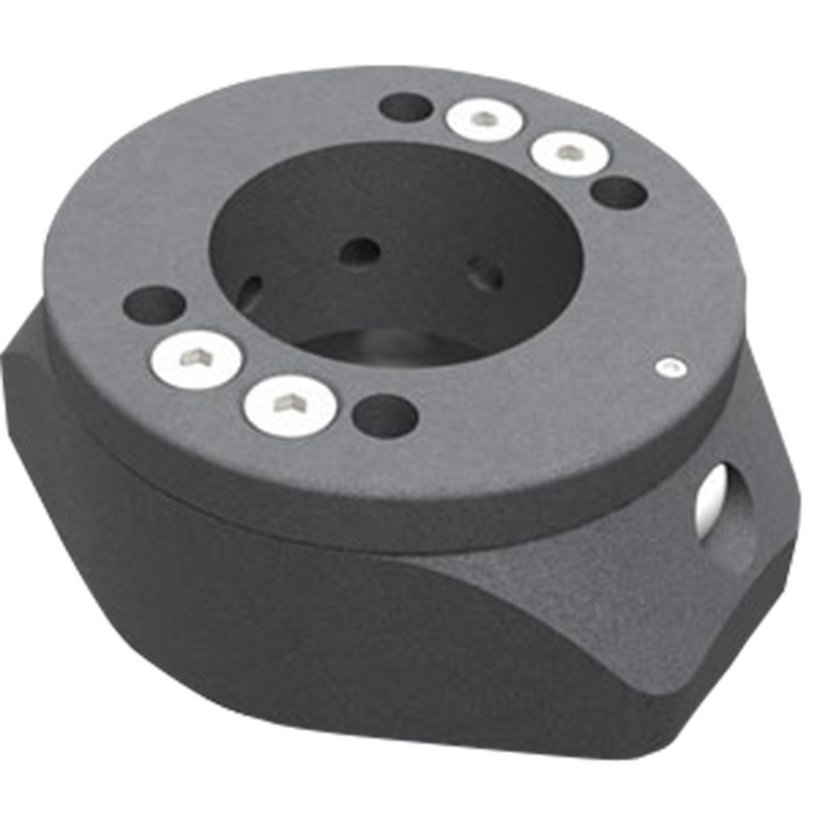

HMA I-080 narrow flange compact joint
- Low height 47 mm
- Variable swivel range up to 330°
- Cable passage 55x43 mm
Product description
Overhead mounting is possible.
Can be used where space is at a premium.
Narrow flange compact joint for connecting a vertical HMA I- profile tube to an enclosure with low depth.
Technical data
-
Article number: 7595-7401-14-01
-
Position: For connection to enclosures
-
Protection class: according to IP54
-
max. cable aperture: 55 x 43 mm/2,17 x 1,69"
-
Rotation range: max. 330°
-
rotation range limitation: in 45° increments. Factory-set 165°/120°
-
Material: Die-cast aluminum
-
Surface: RAL 7016
-
Weight: 1.1 kg
Notice
- Configurations and load carrying capacities, see operation manual.
- Narrow flange compact joint complete with seals and mounting hardware
Mounting instructions:
CAD data and other illustrations:
