7595-7401-06-01

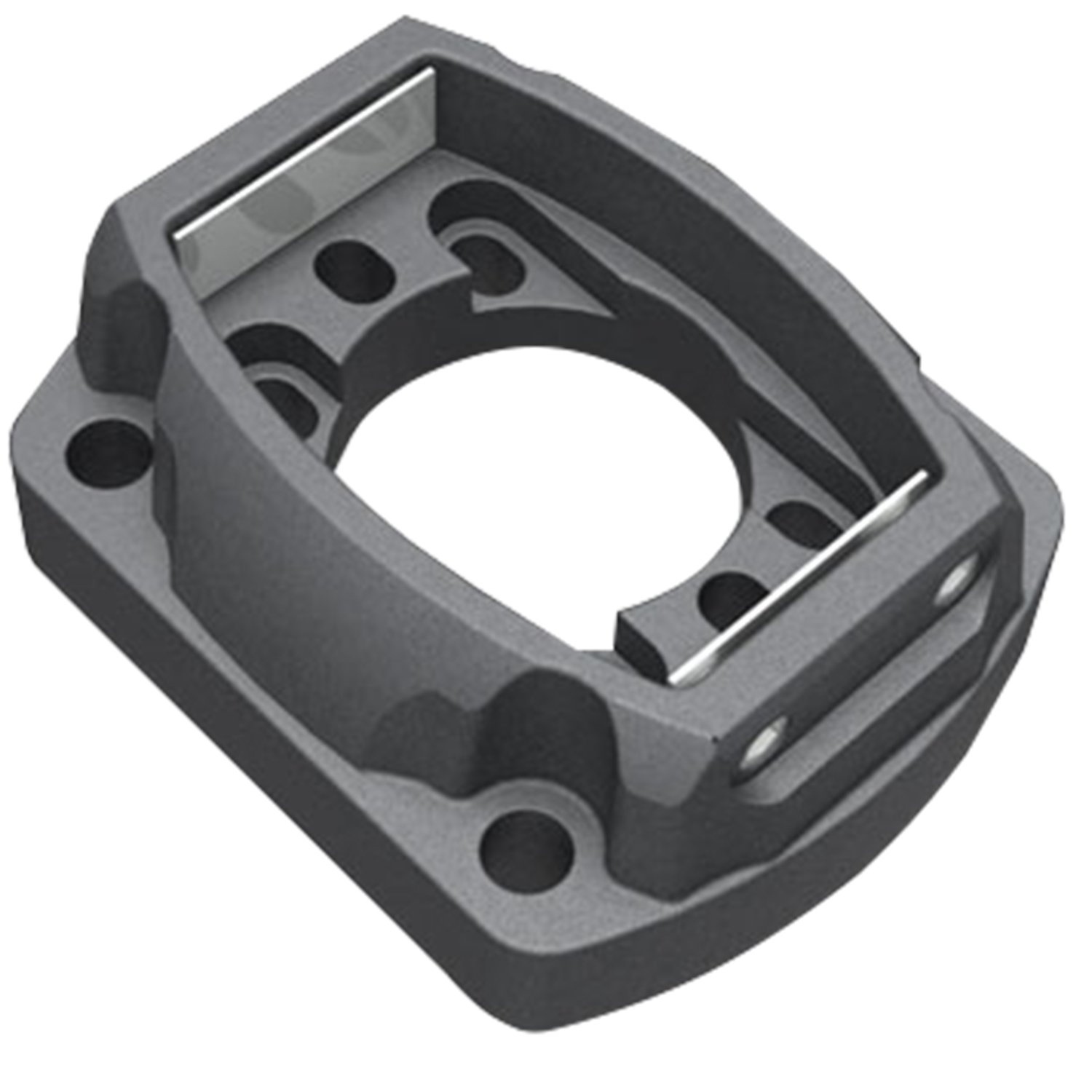

HMA I-080 Foot Joint/Wall Flange
- Cable passage 55x43 mm
Product description
Foot joint/wall flange for connecting a HMA I- profile tube to vertical or horizontal surfaces.
Ceiling mounting is possible.
Connection to a HMA I- profile tube is strain-relieved and torsion resistant.
Technical Data
-
Order No.: 7595-7401-06-01
-
Position: For connection to machines or walls
-
Protection type: according to IP54
-
Cable passage: 55 x 43 mm/2,17 x 1,69"
-
Material: Die-cast aluminum
-
Surface: RAL 7016
-
Weight: 0.6 kg
Notice
- Configurations and load carrying capacities, see operation manual.
- Foot joint/wall flange complete with seals, mounting hardware and accessories for inclination adjustment
Assembly instructions:
CAD data and other file formats:
