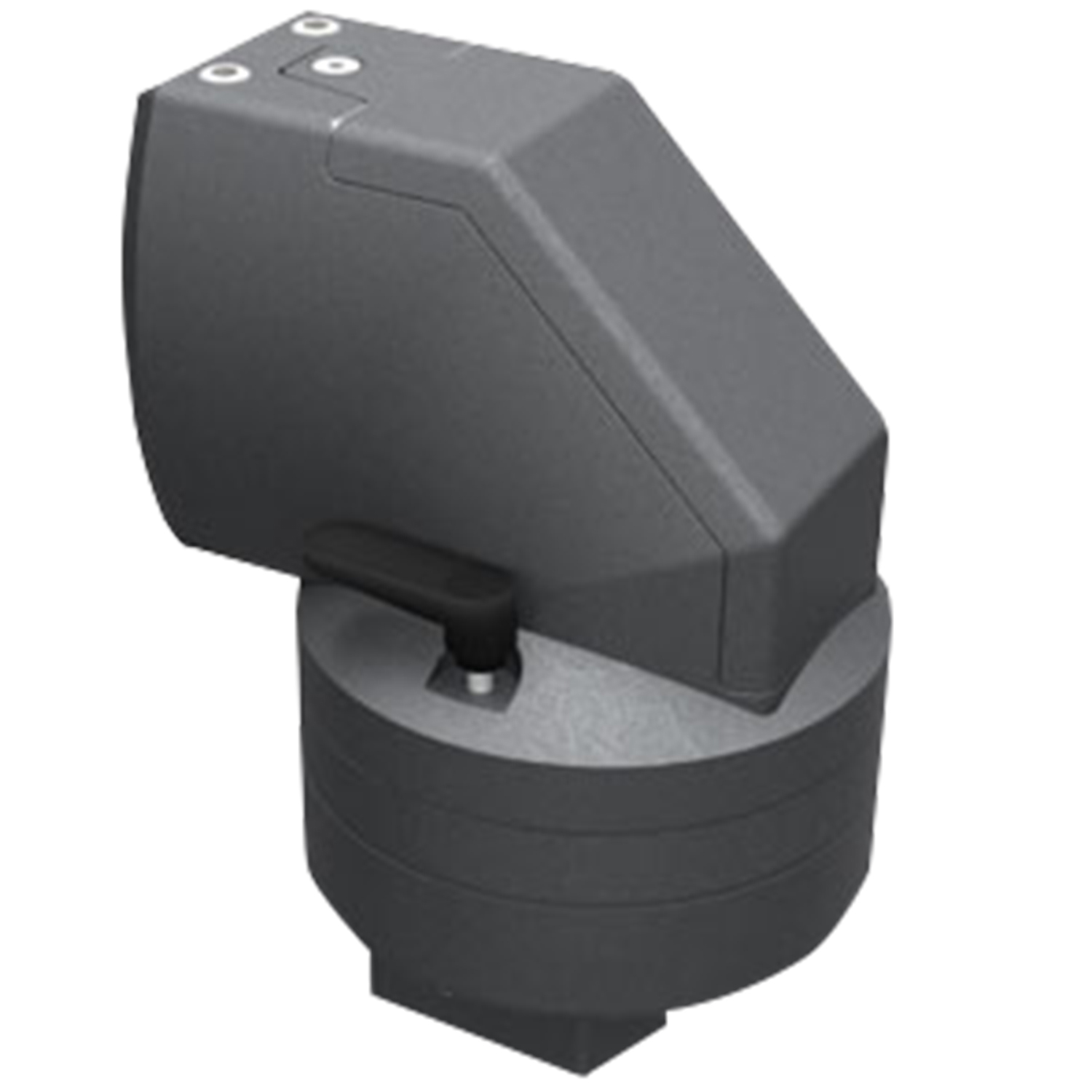

HMA I-080 rotating elbow

7595-7401-25-01

HMA I-080 rotating elbow

  • Variable swivel range up to 300°
  • Cable passage 38x55 mm

Product description

Rotating elbow for connecting a horizontal and a vertical HMA I- profile tube

Detachable lid for easy cable routing and mounting of a HMA I- profile tube

Connection to a HMA I- profile tube is strain-relieved and torsion resistant

Technical data

  • Article number: 7595-7401-25-01
  • PRODUKTGRUPPENNAMEEBENE4: HMA I- Pendant Arm System
  • Position: between 2 tubes
  • Protection class: according to IP54
  • max. cable aperture: 38 x 55 mm/1,5 x 2,17"
  • Rotation range: max. 300°
  • rotation range limitation: Swivel range limiter: in 30° increments. Factory-set 150°/150°
  • Material: Die-cast aluminum
  • Surface: RAL 7016
  • Weight: 2.8 kg

Notice

  • Configurations and load carrying capacities, see operation manual.
  • Rotating elbow complete with seals, mounting hardware and accessories for inclination adjustment
HMA I-080 rotating elbow
HMA I-080 rotating elbow
Detachable lid for easy cable routing and mounting of a HMA I- profile tube
Connection to a HMA I- profile tube is strain-relieved and torsion resistant

Art No.
Position
Cable passage
Surface finish
Remember
between 2 tubes
38 x 55 mm/1,5 x 2,17"
RAL 7016
