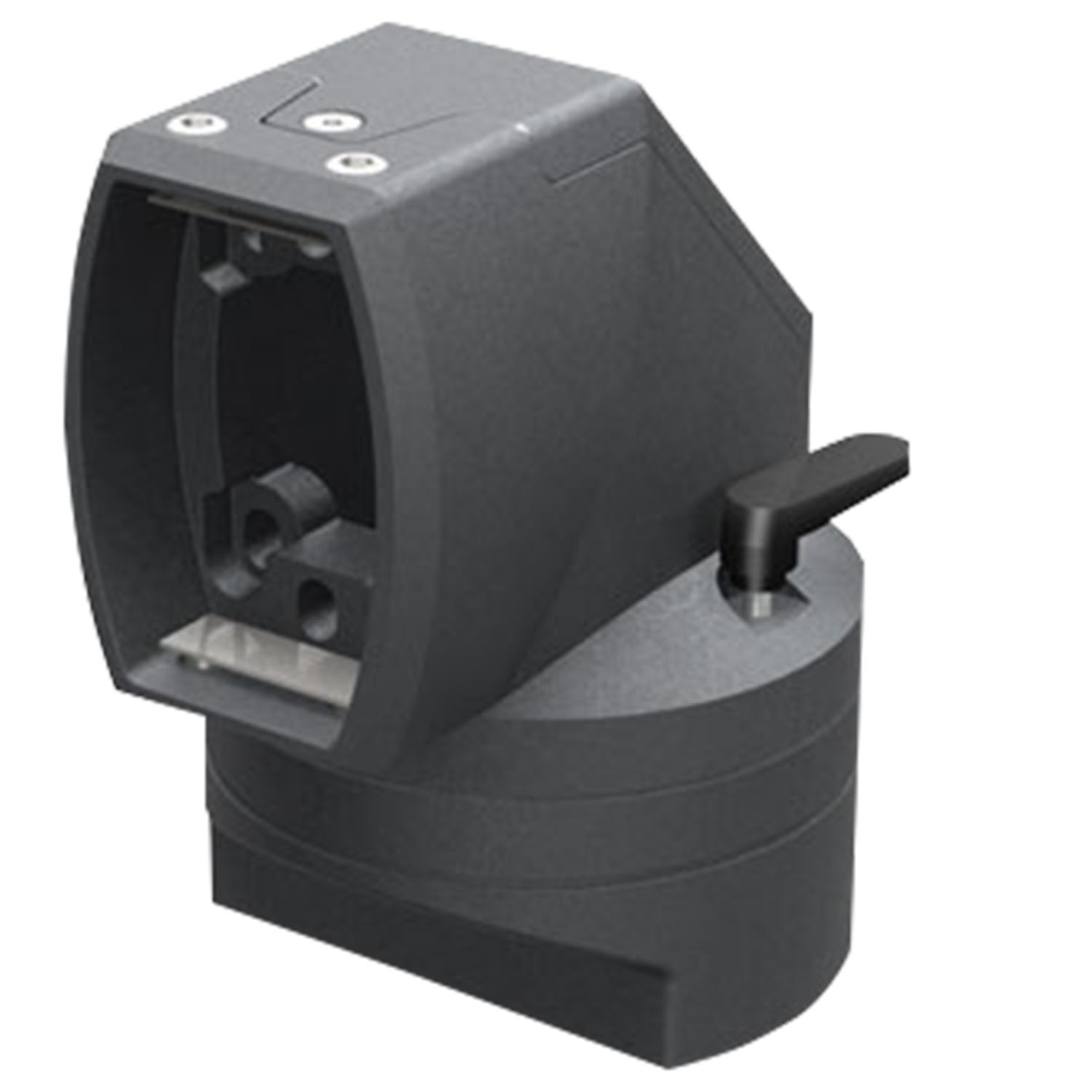

HMA I-080 narrow flange elbow joint

7595-7401-09-01

HMA I-080 narrow flange elbow joint

  • Variable swivel range up to 340°
  • Cable passage 55x43 mm

Product description

Narrow flange elbow joint for connecting a horizontal HMA I- profile tube to an enclosure with low depth.

Overhead mounting is possible.

Detachable lid for easy cable routing and mounting of a HMA I- profile tube.

Connection to a HMA I- profile tube is strain-relieved and torsion resistant.

Technical data

  • Article number: 7595-7401-09-01
  • Position: For connection to enclosures
  • Protection class: according to IP54
  • max. cable aperture: 55 x 43 mm/2,17 x 1,69"
  • Rotation range: max. 340°
  • rotation range limitation: adjustable to 90°/90°, factory-set 170°/170°
  • Material: Die-cast aluminum
  • Surface: RAL 7016
  • Weight: 2.8 kg

Notice

  • Configurations and load carrying capacities, see operation manual.
  • Narrow flange elbow joint complete with seals and mounting hardware
HMA I-080 Enclosure Adapter VESA
7595-7401-12-01
HMA I-080 Enclosure Adapter VESA
Cable passage
50x75 mm/75x75 mm; 1,97x2,95"/2,95x2,95"
Surface finish
RAL 7016
HMA I-080 narrow flange elbow joint
HMA I-080 narrow flange elbow joint
Narrow flange elbow joint for connecting a horizontal HMA I- profile tube to an enclosure with low depth.
Overhead mounting is possible.
Detachable lid for easy cable routing and mounting of a HMA I- profile tube.
Connection to a HMA I- profile tube is strain-relieved and torsion resistant.

Art No.
Position
Cable passage
Surface finish
Remember
For connection to enclosures
55 x 43 mm/2,17 x 1,69"
RAL 7016
