Product description
10° inclination.

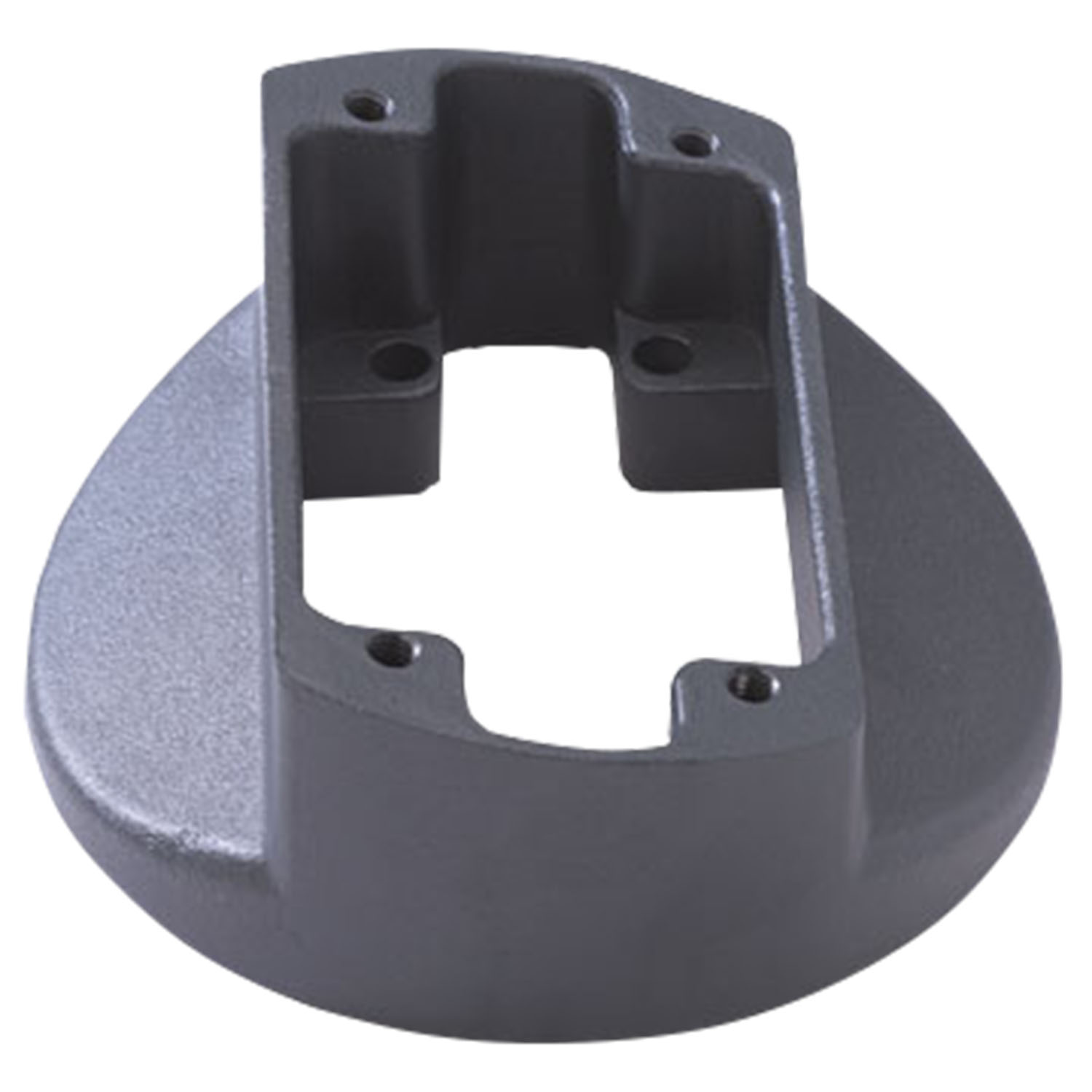

Narrow flange inclination adapter 10° for fixed connection of enclosures with low depth, joints or elbow joints.
Technical Data
-
Order No.: 7595-7401-11-01
-
Protection type: according to IP54
-
Cable passage: 57 x 60 mm
-
Material: Die-cast aluminum
-
Surface: RAL 7016
-
Weight: 0.5 kg
Notice
- Configurations and load carrying capacities, see operation manual.
- Narrow flange inclination adapter 10° complete with seals and mounting hardware
7595-7401-12-01
HMA I-080 Enclosure Adapter VESA
Cable passage
50 x 75 mm / 75 x 75 mm
Surface finish
RAL 7016
7595-7401-05-01
HMA I-080 Joint
Position
For connection to enclosures
Cable passage
55 x 43 mm
Surface finish
RAL 7016
7595-7401-08-01
HMA I-080 elbow joint
Position
For connection to enclosures
Cable passage
55 x 43 mm
Surface finish
RAL 7016
Assembly instructions:
CAD data and other file formats:
