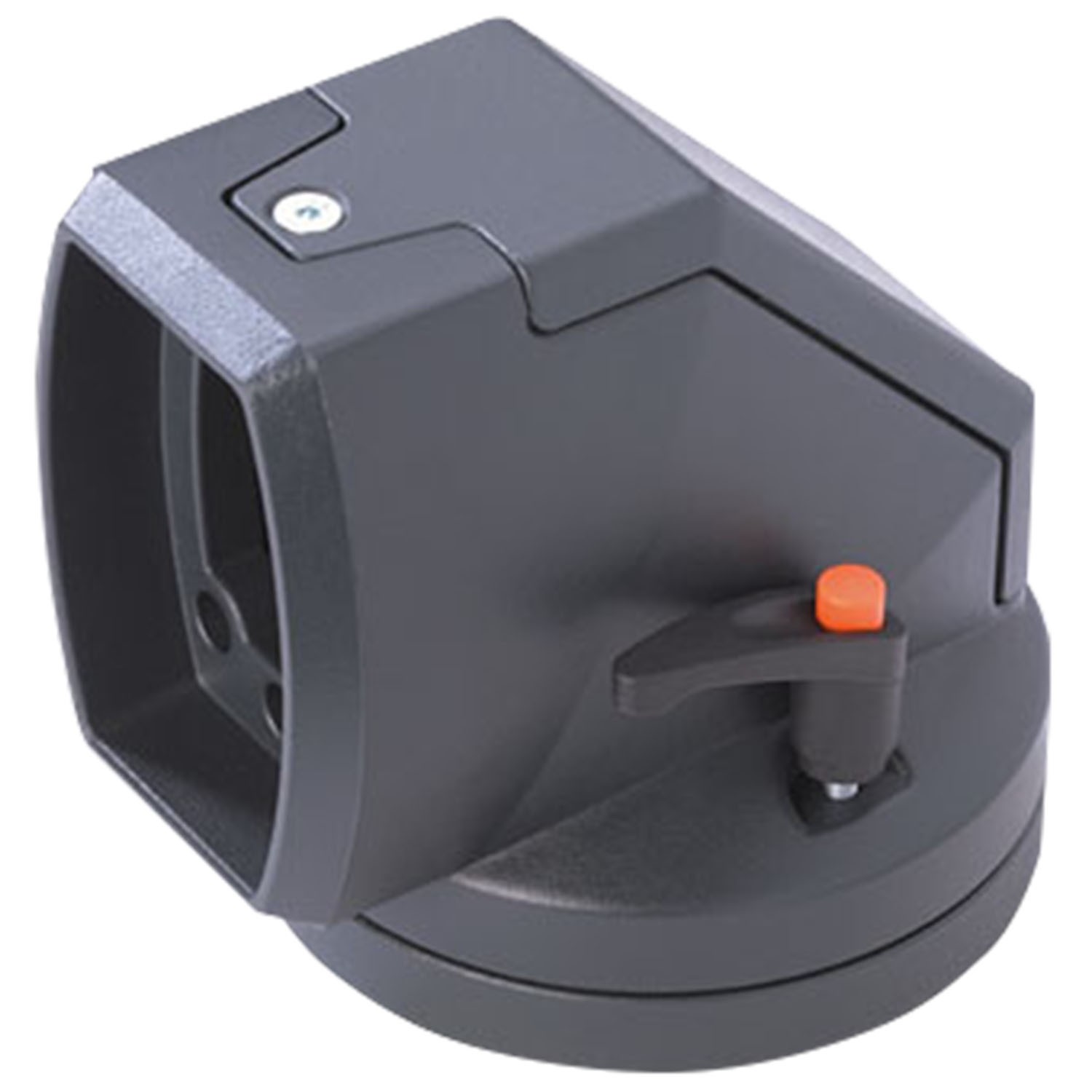

HMA I-080 elbow joint

7595-7401-08-01

HMA I-080 elbow joint

  • Variable swivel range up to 340°
  • Cable passage 55x43 mm

Product description

Elbow joint for connecting a horizontal HMA I- profile tube to an enclosure

Overhead mounting is possible

Detachable lid for easy cable routing and mounting of a HMA I- profile tube

Connection to a HMA I- profile tube is strain-relieved and torsion resistant

Technical data

  • Article number: 7595-7401-08-01
  • PRODUKTGRUPPENNAMEEBENE4: HMA I- Pendant Arm System
  • Position: For connection to enclosures
  • Protection class: according to IP54
  • max. cable aperture: 55 x 43 mm/2,17 x 1,69"
  • Rotation range: max. 340°
  • rotation range limitation: adjustable to 90°/90°, factory-set 170°/170°
  • Material: Die-cast aluminum
  • Surface: RAL 7016
  • Weight: 2.4 kg

Notice

  • Configurations and load carrying capacities, see operation manual.
  • Elbow joint complete with seals and mounting hardware
HMA I-080 Inclination Adapter 10°
7595-7401-10-01
HMA I-080 Inclination Adapter 10°
Cable passage
Ø 60 mm/2,36"
Surface finish
RAL 7016
HMA I-080 Adjustable Inclination Adapter
7595-7401-19-01
HMA I-080 Adjustable Inclination Adapter
Cable passage
Ø 65 mm/2,56"
Surface finish
RAL 7016
HMA I-080 Narrow Flange Inclination Adapter 10°
7595-7401-11-01
HMA I-080 Narrow Flange Inclination Adapter 10°
Cable passage
57 x 60 mm/2,24 x 2,36"
Surface finish
RAL 7016
HMA I-080 Adjustable Narrow Flange Inclination Adapter
7595-7401-18-01
HMA I-080 Adjustable Narrow Flange Inclination Adapter
Cable passage
32 x 60 mm/1,26 x 2,36"
Surface finish
RAL 7016
HMA I-080 elbow joint
HMA I-080 elbow joint
Overhead mounting is possible
Detachable lid for easy cable routing and mounting of a HMA I- profile tube
Connection to a HMA I- profile tube is strain-relieved and torsion resistant

Art No.
Position
Cable passage
Surface finish
Remember
For connection to enclosures
55 x 43 mm/2,17 x 1,69"
RAL 7016
